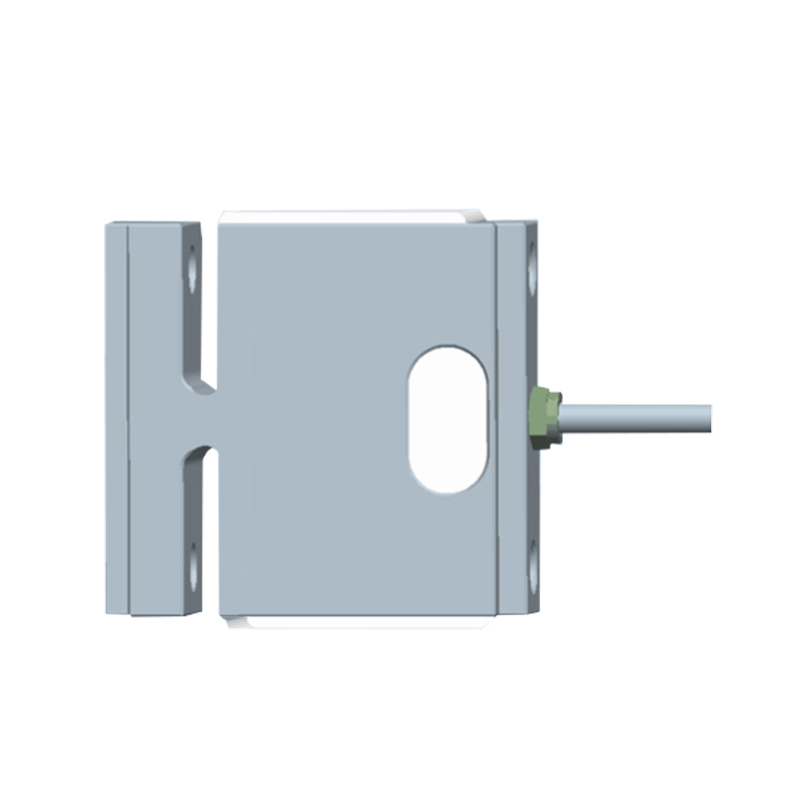

2-Axis Force Sensor T507
High accuracy with strong ability of anti-side force
Product Description
2-Axis Force Sensor
Features & Applications
High accuracy with strong ability of anti-side force
Easy to install,IP65 protection
Precision control of mechanical arm,grinding and polishing for Spherical,carved processing of machining center,precision testing of medical equipment
Specifications
| Specifications | Technique |
| Capacity(kg) |
X:20/50/100/150/200 Y:20/50/100/150/200 |
| Rated output |
1.1±0.1mV/V(X) 2.2±0.2mVV(Y) |
| Zero balance | ±0.1F.S. |
| Non-linearity | 0.03%F.S. |
| Hysteresis | 0.03%F.S. |
| Repeatability | 0.03%F.S. |
| Creep(300min) | 0.03%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 300~500Ω |
| Output impedance | 300~500Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-12V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~40℃ |
| Operating temperature range | -20~75℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Cable length | Φ6-4m |
| lP class | IP66 |

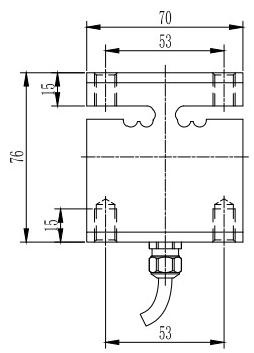

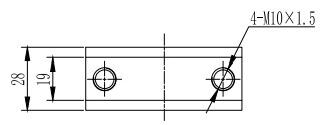

Mounting Dimension

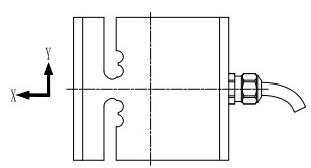

Load Direction

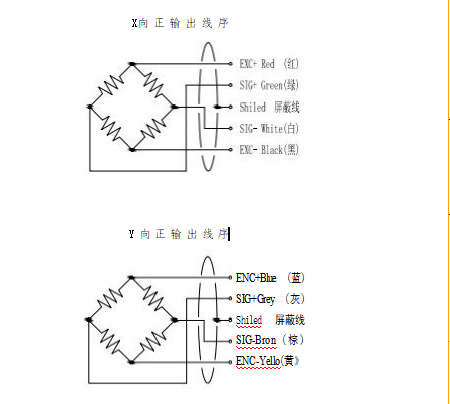

Wiring Code
FAQ
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
What is your MOQ?
The MOQ is usually 5 to 10 pieces
Are you a trading company or a manufacturer?
Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
What is your terms of payment?
T / T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
