Product Description

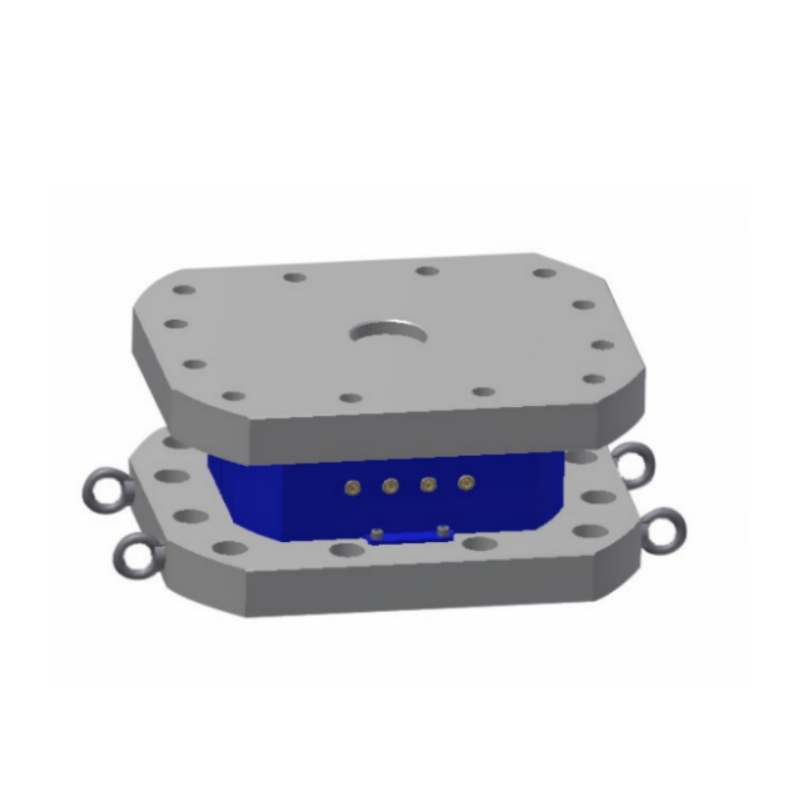

3-axis Force Paltform
Features & Applications
4 components:Fx,Fy,Fz,Mz
For static and dynamic loads
Maximum precision and versatility
Integrated mechanical decoupling
Custom engineered measuring platform
Specifications
| Specifications | Technique |
| Nomial load | Fx=Fy=600kNFz=1000kN Mz=100kN.m |
| Rated output | Fx=Fy=2.0mVV Fz=0.5mVV,Mz=1.0mVV |
| Entangled error | 5%F.S. |
| Non-linearity | 0.5%F.S |
| Hysteresis | 0.5%F.S |
| Repeatability | 0.5%F.S |
| Creep(30min) | 0.5%F.S |
| Temp.effect on output | 0.1%F.S./10℃ |
| Temp.effect on zero | 0.1%F.S./10℃ |
| Insulation | ≥2000MΩ/50VDC |
| Recommended excitation | 5V |
| Maxmum excitation | 15V |
| Compensated temp range | -10-60℃ |
| Operation temp range | -35-80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%FS |
| IP Class | IP65 |
| Cable | 4×Φ6-4m |

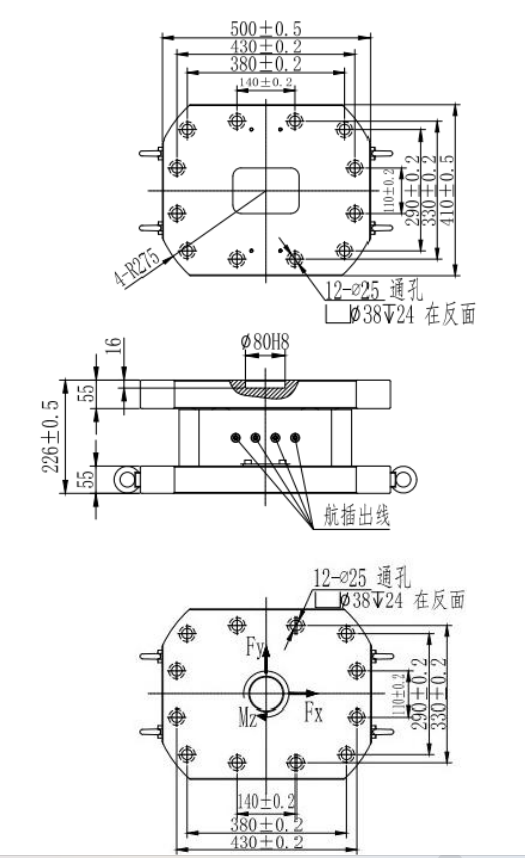

Mounting Dimension

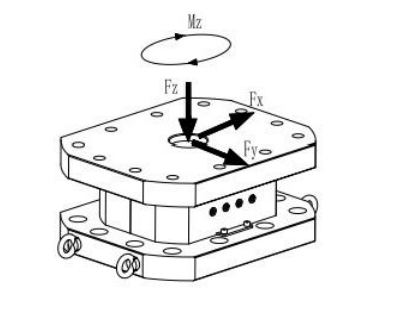

Load Direction

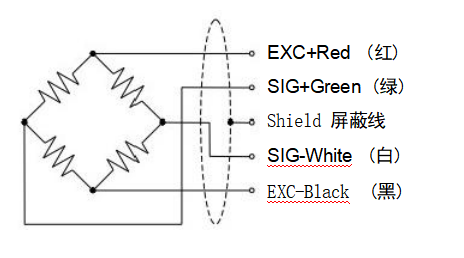

Wiring Code
