Product Description

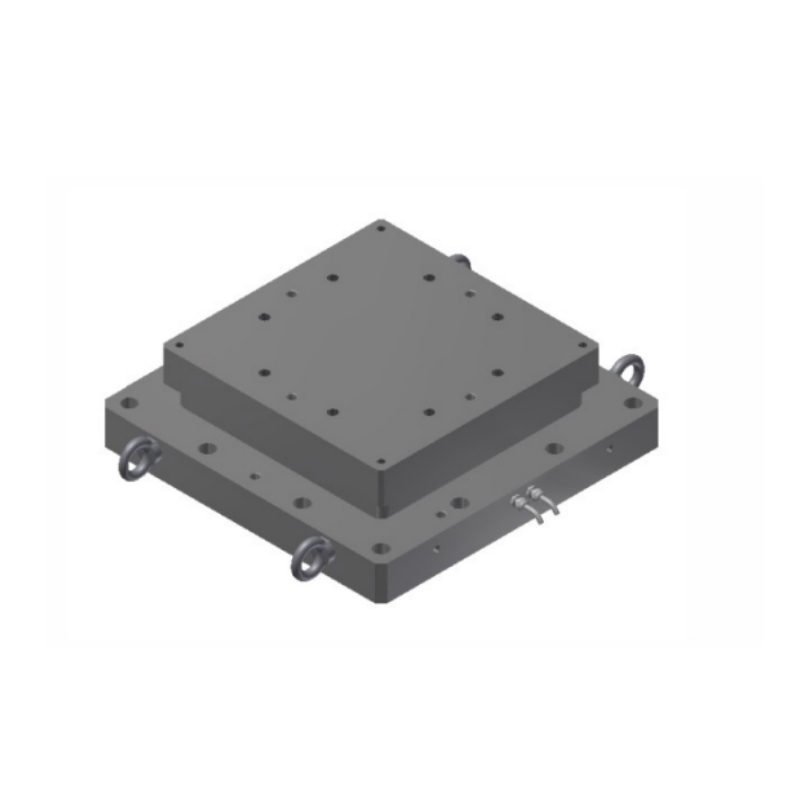

3-axis Force Paltform
Features & Applications
4 components:Fx,Fy,Fz,Mx,My,Mz
For static and dynamic loads
Maximum precision and versatility
Integrated mechanical decoupling
Custom engineered measuring platform
Specifications
| Specifications | Technique |
| Nomial load |
Fx=10kg Mx=2.5kN.m Fy=5kN Fy=5kN.m Fz=23kN Fz=23kN.m |
| Rated output | ≈1.0mV/V |
| Zero balance | ±5%mV/V |
| Non-linearity | 1%F.S. |
| Hysteresis | 1%F.S. |
| Repeatability | 0.5%F.S. |
| Creep(30min) | 0.3%FS. |
| Temp.effect on output | 0.1%F.S./10℃ |
| Temp.effect on zero | 0.1%F.S./10℃ |
| Input impedance | 380/780±20Ω |
| Output impedance | 350/700±10Ω |
| Insulation | ≥2000MΩ/50VDC |
| Recommended excitation | 5~12V |
| Maxmum excitation | 15V |
| Compensated temp range | -10~40℃ |
| Operation temp range | -20-60℃ |
| Safe overload | 120%F.S. |
| Ultimate overload | 50%F.S. |
| IP Class | IP65 |
| Cable | 2-φ6X4m |

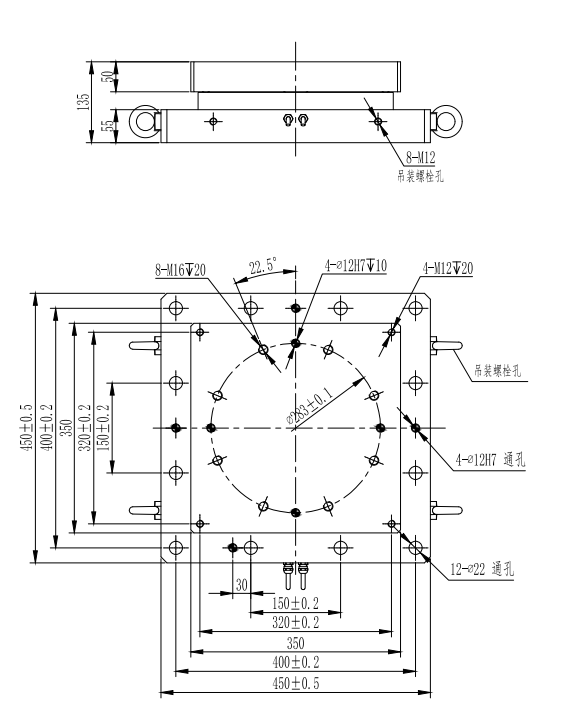

Mounting Dimension

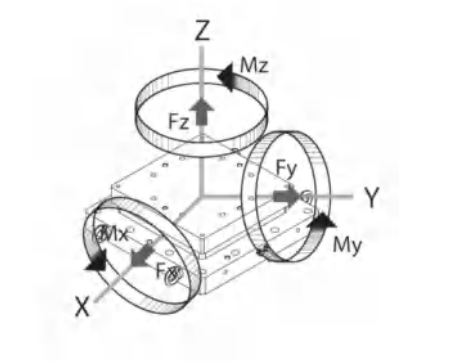

Load Direction

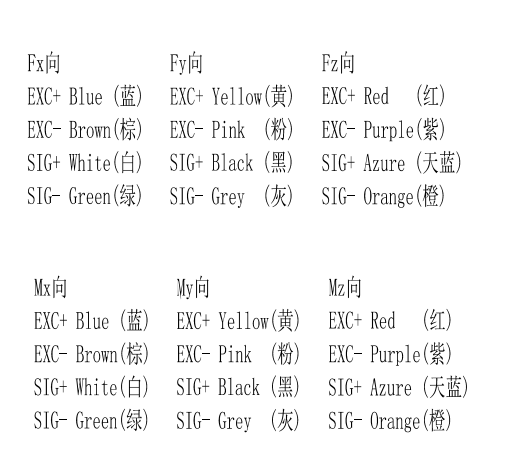

Wiring Code
