6 Axis Force Sensor T521
Made of high quality aluminum and 17-4PH stainless steel with high strong strength.

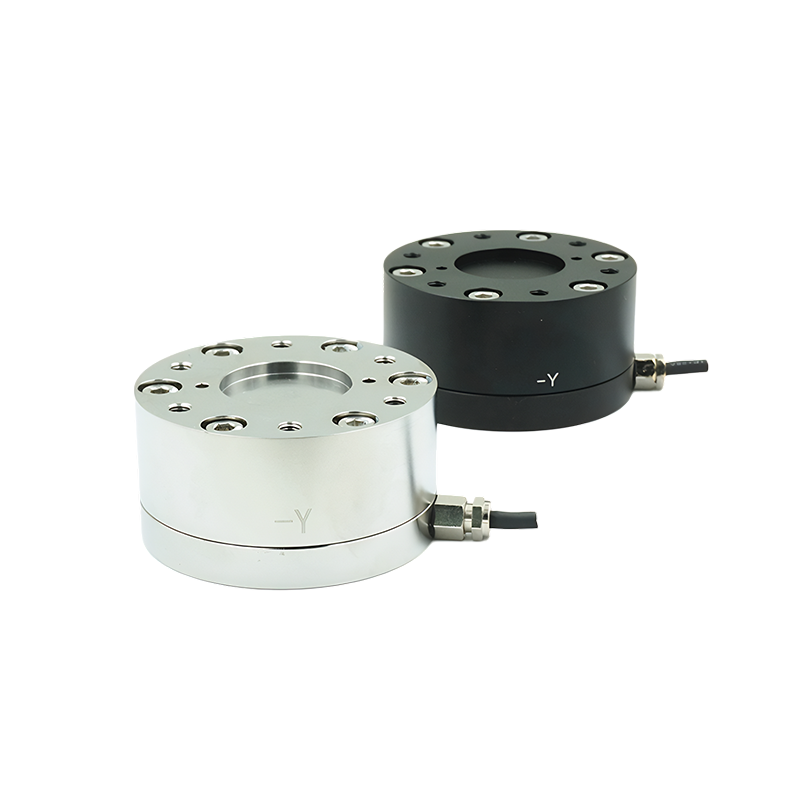

Product Description
6 Axis Force Sensor
Features & Applications
Parallel mechanism design,the coupling is low;
Made of high quality aluminum and 17-4PH stainless steel with high strong strength.
Internal digital decoupling with strong anti-interference
Specifications
| Force characteristics | unit | A1 | A2 | C1 | C2 | C3 | D1 | D2 | D3 |
| Force Fxy | N | 150 | 300 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 |
| Force Fz | N | 350 | 700 | 1800 | 2400 | 3600 | 5000 | 6000 | 7350 |
| Torque Mxy | N-m | 4 | 6 | 18 | 24 | 35 | 45 | 60 | 70 |
| Torque Mz | N-m | 10 | 18 | 48 | 64 | 95 | 125 | 160 | 190 |
Notes:
1. The default unit is as shown in the table above and can be changed according to customer needs:
2. The range of different specifications can be customized as needed:
| name | Fz principal component | Fx,Fy | Mx principal component | Mx,My |
| Comprehensive accuracy (%FS) | 0.1 | 0.1 | 0.1 | 0.1 |
| Repeatability (%FS) | 0.1 | 0.1 | 0.2 | 0.2 |
| Linearity (%FS) | 0.05 | 0.05 | 0.35 | 0.35 |
| Hysteresis (%FS) | 0.1 | 0.1 | 0.3 | 0.3 |
| Zero return error (%FS) | 0.1 | 0.1 | 0.1 | 0.1 |
| Zero output (%FS) | 0.1 | 0.1 | 0.1 | 0.1 |
| Zero drift (%FS/30min) | 0.1 | 0.1 | 0.1 | 0.1 |
| Overload capacity | Aluminum | 17-4 stainless steel |
| Fxy | 200% | 200% |
| Fz | 200% | 200% |
| xy | 200% | 200% |
| MZ | 200% | 200% |
| Stiffness (calculated) | Aluminum | 17-4 stainless steel |
| X & Y forces (Kx, Ky) | 4.6x106N/m | 3.4x 106N/m |
| Z forces (Kz) | 1.2x107N/m | 1.3x 107Nim |
| X & Y moments (Kmx, Kmy) | 8.5x109Nmvrad | 2.7x103Nmrad |
| Z moment (Kmz) | 4.8x108Nmrad | 1.1 x 104 Nm/rad |
Notes:
1. Overload capacity and stiffness can be made according to requirements.
2. The output resolution is 0.1%, and two communication methods are provided: EtherCAT and Ethernet. Data can be read directly, and the sampling frequency is 1kHZ.

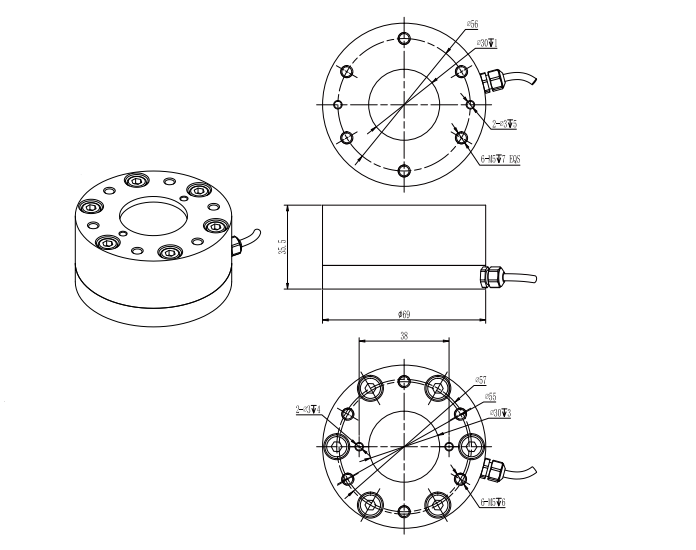

Mounting Dimension

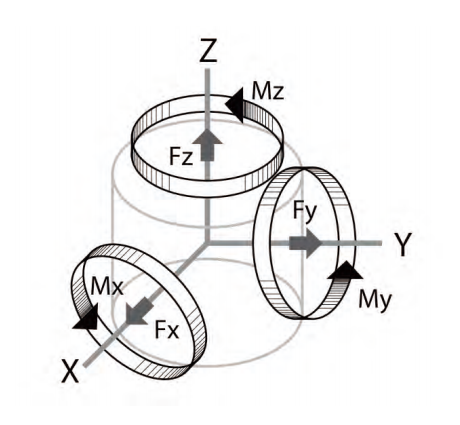

Load Direction
Notes:
1. The fixed reference system of the sensor is located at the center of the lower surface of the sensor;
2. The origin of the relative reference system of the sensor is respectively at the center of the upper surface
