Triaxial force sensors R499

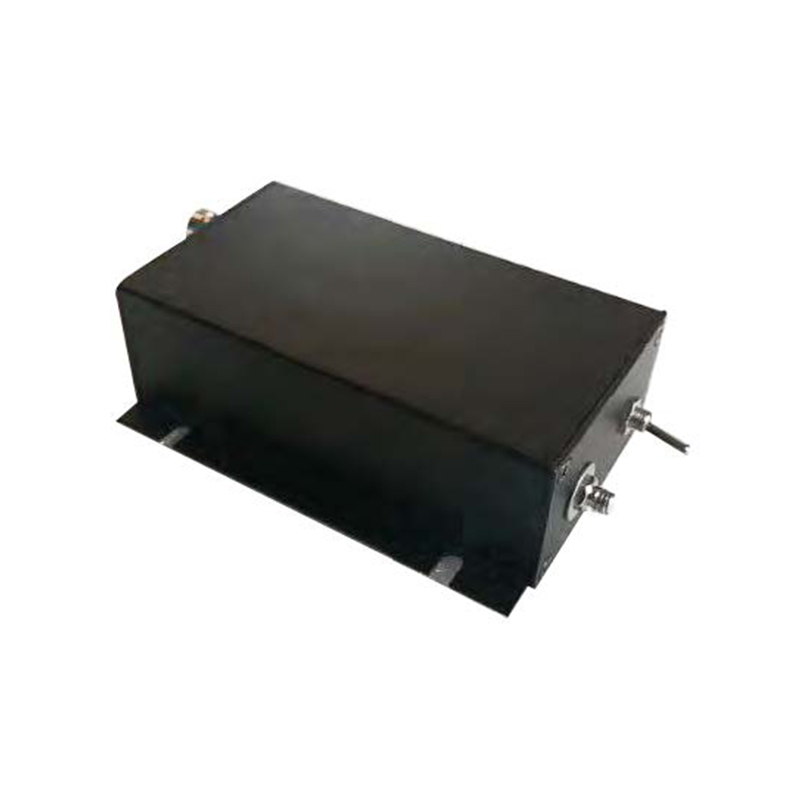

This instrument is a single-channel small quasi-static charge amplifier.It is connected to a piezoelectric acceleration sensor to form a test system.It can measure physical parameters such as vibration,force,and pressure.This product is widely used in mechanical measurement of mechanical manufacturing,power manufacturing,aviation,marine,construction,chemical explosion and other applications.This instrument has a second-order Butterworth low-pass filter,which can improve the signal to-noise ratio and obtain the best test results.
Product Description
Features & Applications
This instrument is a single-channel small quasi-static charge amplifier.It is connected to a piezoelectric acceleration sensor to form a test system.It can measure physical parameters such as vibration,force,and pressure.This product is widely used in mechanical measurement of mechanical manufacturing,power manufacturing,aviation,marine,construction,chemical explosion and other applications.This instrument has a second-order Butterworth low-pass filter,which can improve the signal to-noise ratio and obtain the best test results.
Specifications
| Specifications | Technique |
| Maximum input charge | 100000pC |
| Gain | 1mV/pC-10mV/pC |
| accuracy rating | ≤1% |
| Frequency Response | 0.5Hz-100kHz(-3dB±1dB) |
| maximum output swing | ±10V. |
| Maximum Output Current | ±5mA |
| Noise | ≤1mVrms(Highest gain level) |
| Power supply | DC10~30V or ±6~±15V |
| installation size | 63.5×59(59 is the U-shaped groove that can be adjusted left and right) |
| Weight | =0.2kg |

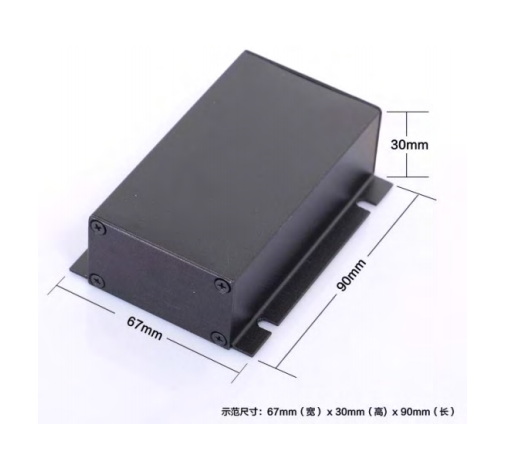

Mounting Dimension
FAQ
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
What is your MOQ?
The MOQ is usually 5 to 10 pieces
Are you a trading company or a manufacturer?
Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
How long is your delivery time?
4-6 weeks, depending on the situation
What is your terms of payment?
T / T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
What is your sample policy?
We can supply the sample if we have ready parts in stock.
