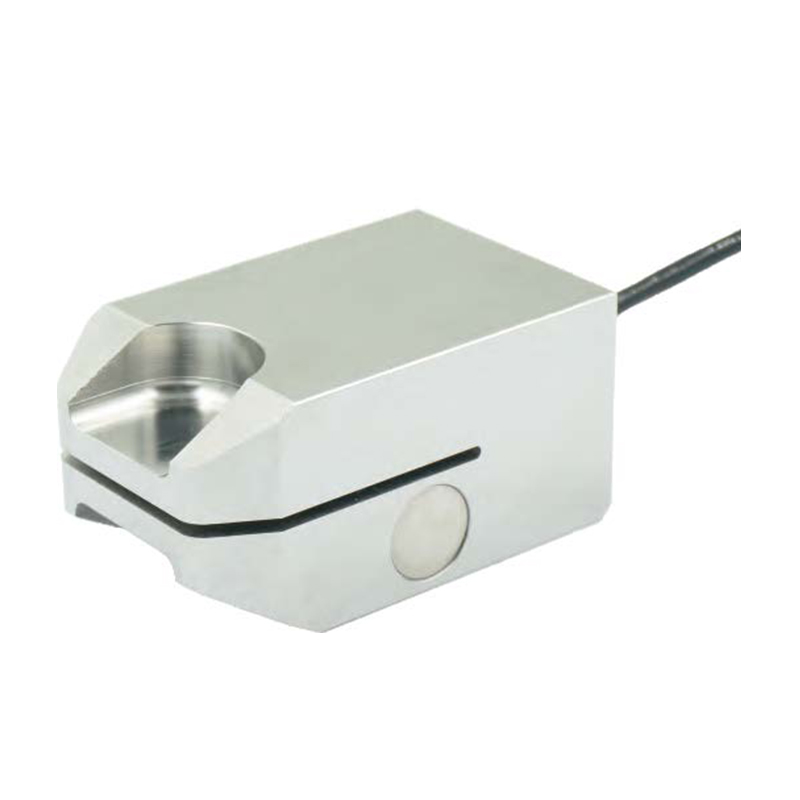

Clamping force sensor R091
Low profile and small deflection
Mainly used for tension and compression force testing for raw material and other industrial testing and control system
High dynamic response frequency
Patented products,counterfeiting must be investigated
Product Description
Features & Applications
Low profile and small deflection
Mainly used for tension and compression force testing for raw material and other industrial testing and control system
High dynamic response frequency
Patented products,counterfeiting must be investigated
Specifications
| Specifications | Technique |
| Measuring scope | φ5mm-φ28mm |
| Rated output | 1.0mV/V |
| Zero balance | ±1%F.S. |
| Non-linearity | 0.1%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(300min) | 0.1%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 350±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~10V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10-60℃ |
| Operating temperature range | -30-85℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | Φ4×4000mm |
| lP class | IP67 |
| Material | Stainless Steel |

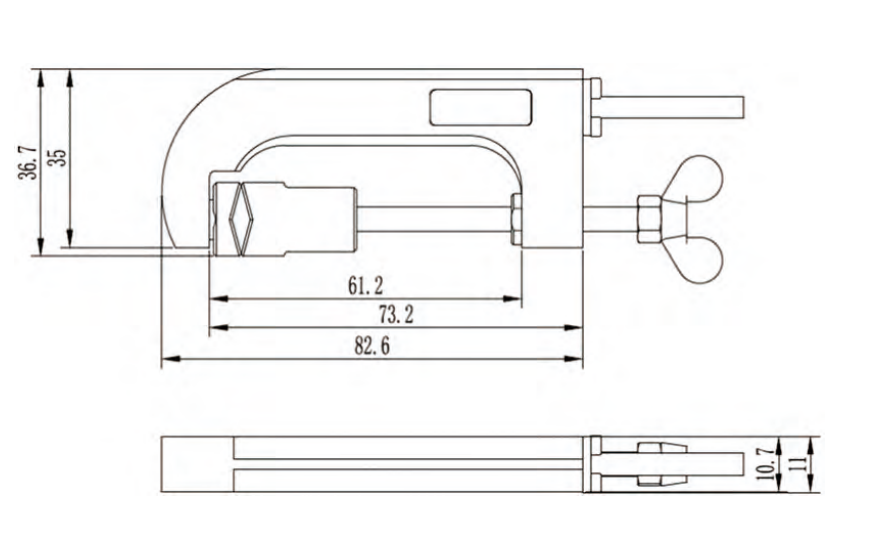

Mounting Dimension

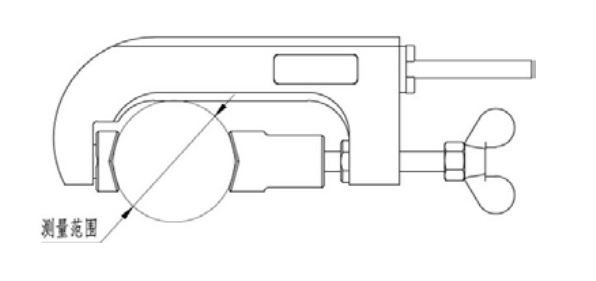

Load Direction
Wiring Code
