High-speed data acquisition T070B

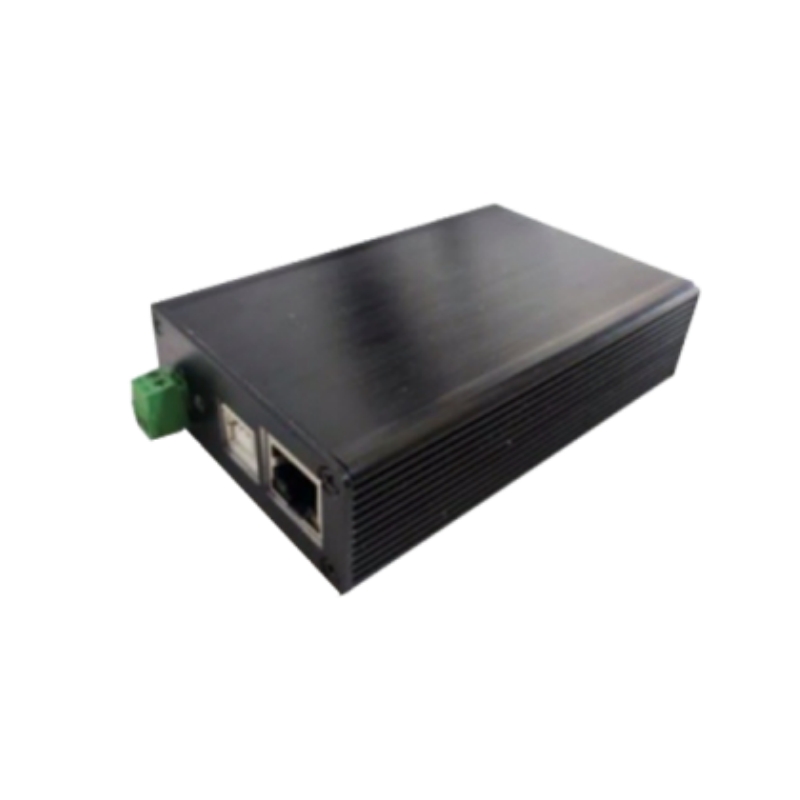

The T070B four-channel distributed strain acquisition card is an Ethernet-based dynamic strain acquisition device with four 24-bit resolution synchronous measurement channels and a sampling rate of up to 30kS/s per channel.
Product Description
The T070B four-channel distributed strain acquisition card is an Ethernet-based dynamic strain acquisition device with four 24-bit resolution synchronous measurement channels and a sampling rate of up to 30kS/s per channel. It supports network topology to expand the number of acquisition channels and can meet the needs of high-precision dynamic measurement, such as dynamic weighing, strain analysis, dynamic force measurement and distributed state monitoring.
Summary
Sensors based on the strain principle are widely used in industry, scientific research, military and other fields. With the increasing degree of industrial automation, the real-time response of automatic control is stronger, and edge computing requires more data. The requirements for testing are further upgraded from qualitative testing to quantitative testing. In the fields of new energy, automobile assembly manufacturing, industrial robots, intelligent transportation, civil engineering and the Internet of Things, traditional static or low-speed acquisition is difficult to match the needs of dynamic measurement. The T070B four-channel distributed strain acquisition card expands the traditional force measurement response frequency from 100Hz to 10kHz on the basis of providing measurement accuracy.
√ 24 bits resolution, comprehensive accuracy better than 0.01%, ultra-low temperature drift
√ 4-channel synchronous sampling, each channel sampling rate can reach 30kS/s
√ Ethernet transmission, convenient for remote and network distributed testing
√ 9~30VDC wide voltage power supply, suitable for industrial field applications
√ Precision 5V excitation bridge voltage per channel, support strain and voltage acquisition
√ Provide interface API and DLL, support secondary development
√ Low power consumption, strong anti-interference
Application area
Dynamic force measurement, strain analysis, state monitoring, industrial automation, Internet of Things
Functions and Features
Distributed dynamic acquisition
T070B single card provides 4 synchronous acquisition channels, each channel has a maximum sampling rate of more than 30kS/s, the acquisition card as a client can connect multiple acquisition cards to the server through the network switch at the same time, realize remote and distributed acquisition system, and can also be used as an Internet of Things acquisition terminal
High precision, low noise, low temperature drift
T070B uses 24 bits Sigma-Delta ADC and programmable PGA, with a comprehensive test accuracy better than 0.01%, with a minimum background noise of 4uVp-p and a nonlinear THD of not less than 100dB, and a common mode rejection ratio of not less than 140dB; at the same time, the acquisition card uses wide temperature low noise industrial-grade devices, with a temperature drift of 0.7uV/℃ and strong anti-interference.
Dual type and dual range, support strain/voltage acquisition
T070B has an internal integrated programmable instrument amplifier PGA, ±20mV and ±100mV software optional, and provides 5V high-stability bridge excitation voltage for each channel, supporting full-bridge strain sensors and general mV voltage signals.
Supporting data acquisition software
T070B is equipped with general data acquisition software, which has the functions of acquisition parameter setting, real-time display of waveforms and values, zero position calibration, file storage, data playback, etc., and can also provide customized secondary development services.
Secondary development library
T070B provides command sets and dynamic link library functions based on TCP/IP, supports Window/Linux and other operating systems, and supports development environments such as VC, VB, C#, LabVIEW, LabwindowsCVI, etc.
Technical specifications
| Item | Specifications |
| Communication interface | Ethernet |
| Transmission protocol | TCP/IP |
| Number of channels | 2/4 channels |
| ADC type | Sigma-Delta |
| Synchronization | Yes |
| Resolution | 24 bits |
| Range | ±20mV/±100mV |
| Sampling rate | 1~30kS/s/ch |
| Bridge excitation voltage | 5V (not less than 100mA drive capability) |
| Comprehensive test accuracy | >0.01% |
| Memory capacity | 256MB |
| ADC nonlinear THD | >100dB |
| ADC input common mode signal rejection ratio | >140dB |
| Input impedance | 1GΩ |
| Temperature drift | 0.7uV/℃ |
| Physical size | 100mm*66mm*27mm (excluding connectors and fixing holes) |
| Storage temperature | -40℃~+85℃ |
| Operating temperature | -20℃~+70℃ |
| Secondary development | Command set and DLL |

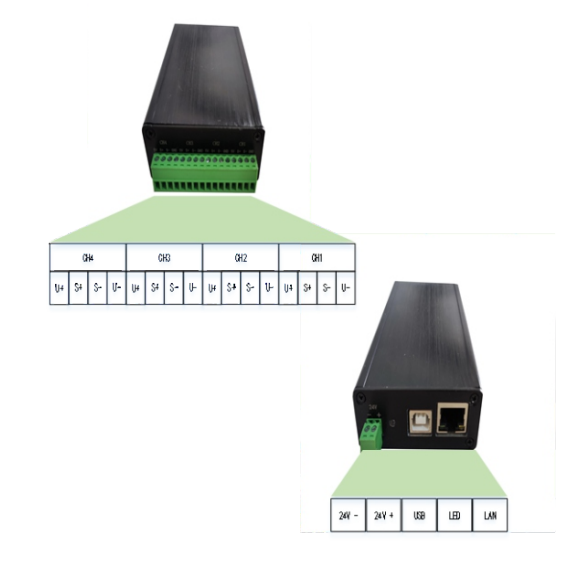

Interface definition
