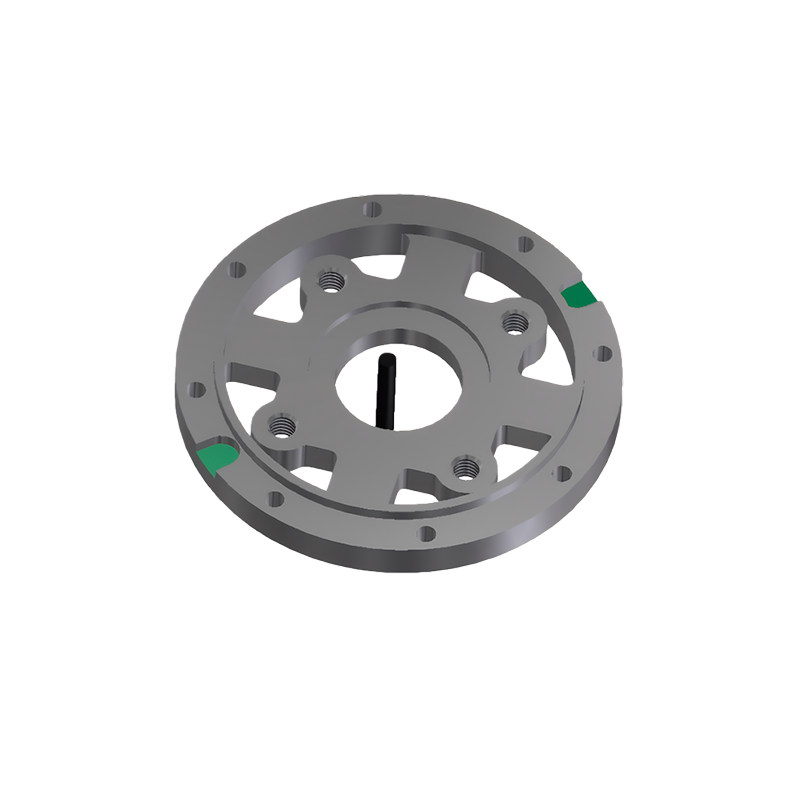

Robot Joint Torque Sensor F209C-70
High precision, strong resistance to unbalanced load, easy installation, IP66, accept customized specifications, precise control of robot arms, curved surface grinding and polishing, precision carving processing in machining center, precision testing of medical equipment.
Product Description
Robot Joint Torque Sensor
Features & Applications
High accuracy with strong ability of anti-side force.
Easy to install,IP66 protection.
Dimension is customizable.
Precision control of mechanical arm,grinding and polishing for Spherical,carved processing of machining center,precision testing of medical equipment.
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 10、30、50、80、100N.m |
| Nominal(rated)sensitivity | 1.5±20%mV/V |
| Zero balance | ±0.05mV/V |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.5%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(30min) | 0.1%F.S. |
| Temp.effect on sensitvty | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 700±70Ω |
| Output impedance | 700±50Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -20-80℃ |
| Safe load limit | 150%FS. |
| Breaking load | 200%FS. |
| Cable size | φ2×2000mm |
| Protection class | IP66 |

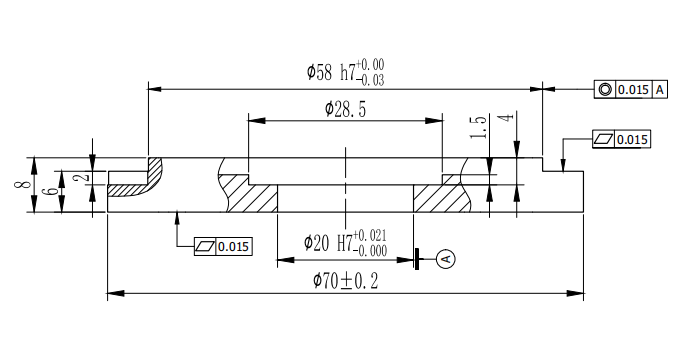

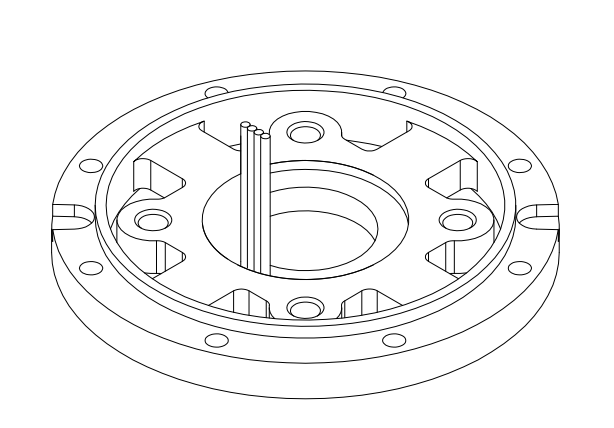

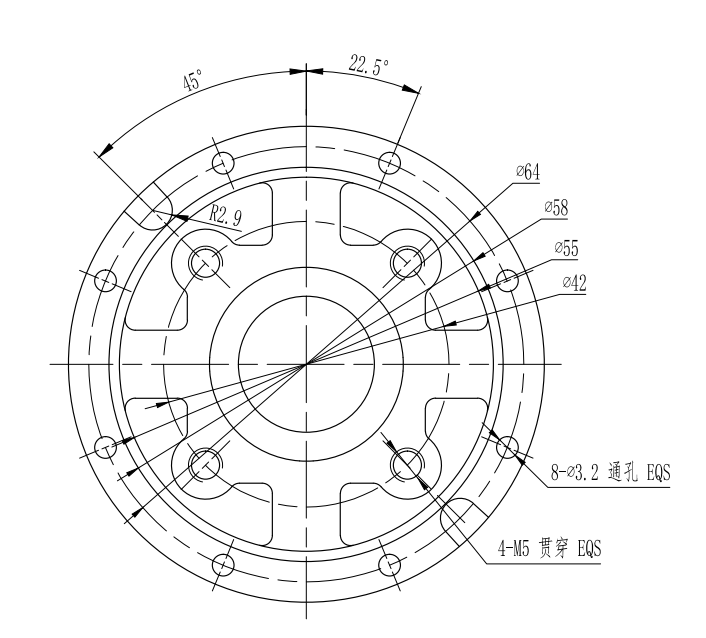

Mounting Dimension

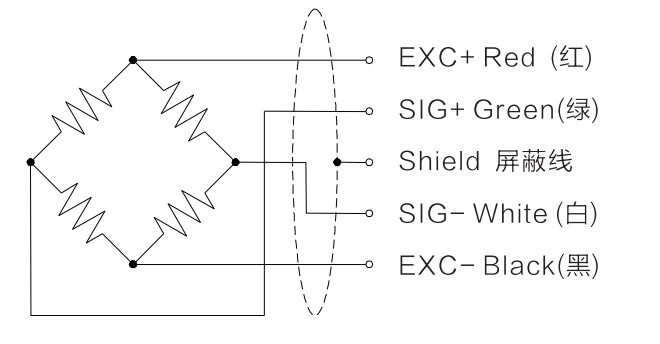

Wiring Code
