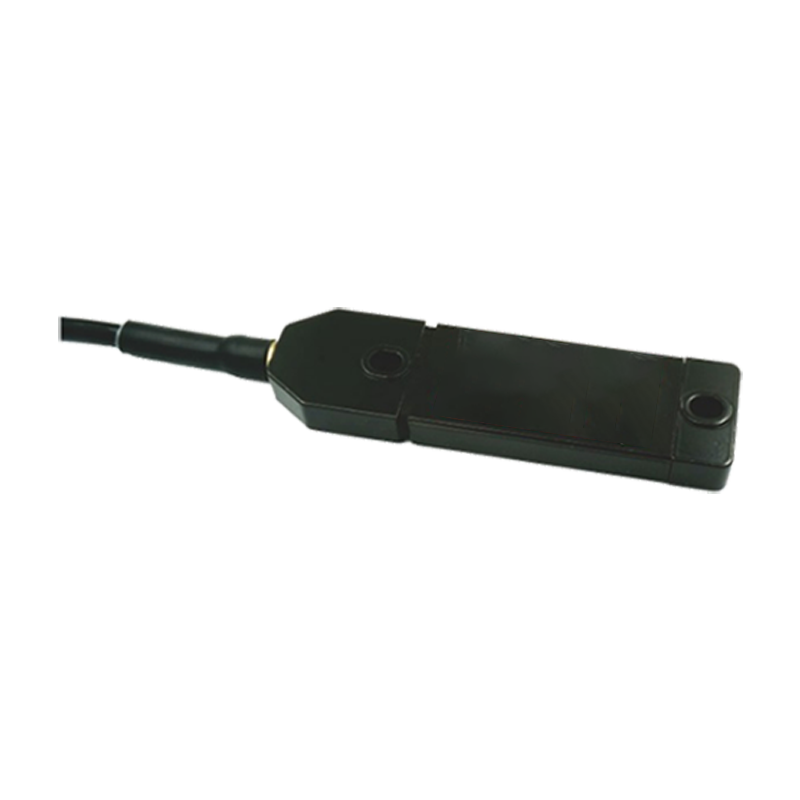

Strain Sensor T910B
Using high elastic material as strain, and then choose high precision resistance strain gage as sensitive components, high precision, good stability fora long time
Product Description
Strain Sensor
Features & Applications
Easy installation, just use bolts
Low reusable
Low level ofprotection:IP66
Using high elastic material as strain, and then choose high precision resistance strain gage as sensitive components, high precision, good stability fora long time
Widely used in large equipment, Bridges, railways, granary, dam engineering field, such as used for measuring the strain and stress of the installation points
Specifications
| Specifications | Technique |
| Capacity |
800μm/m |
| Rated output |
1.5±20%mV/V |
| Zero balance | ±5%F.S. |
| Temp.effect on output | 0.2%F.S./10℃ |
| Temp.effect on zero | 0.5%F.S./10℃ |
| Input impedance | 1000±20Ω |
| Output impedance | 1000±20Ω |
| Insulation | ≥5000MΩ/50VDC |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~40℃ |
| Operating temp range | -20~60℃ |
| Safe Overload | 150%F.S. |
| Ultimate Overload | 200%F.S. |
| Cable size | Ø6x4000m |
| Material | Aluminum alloy |
| Weight approx. | 0.4kg |
| IP class |
IP66 |

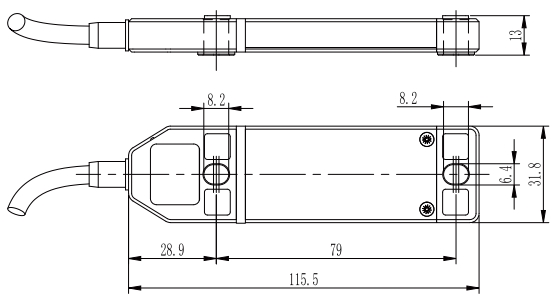

Mounting Dimension

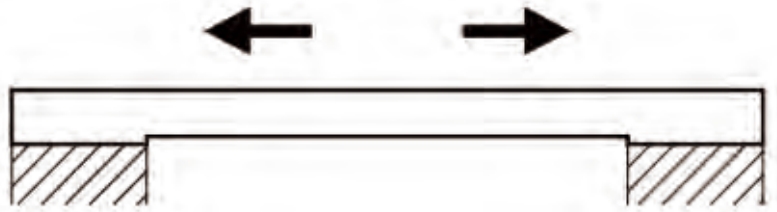

Load Direction

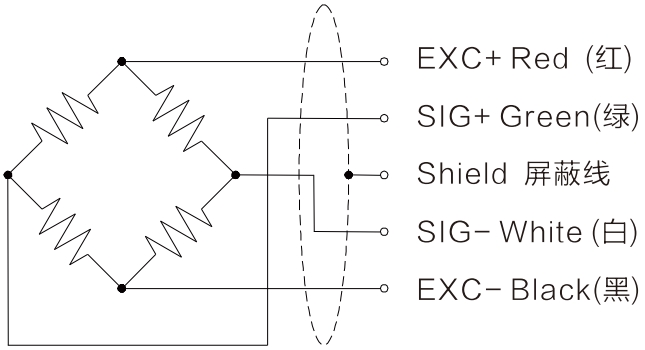

Wiring Code
