Bellow Type Load Cell T701E
Made of Stainless Steel Strong stability
Applicable to varous environments, IP68/P69K protection
Its protective anti-fouling design makes it ideal for food processing, pharmaceutical manufacturing, or building packaging because of its ease of cleaning
Product Description
Bellow Type Load Cell
Features & Applications
Made of Stainless Steel Strong stability
Applicable to varous environments, IP68/P69K protection
Its protective anti-fouling design makes it ideal for food processing, pharmaceutical manufacturing, or building packaging because of its ease of cleaning
Specifications
| Specifications | Technique |
| Capacity |
10, 20, 50, 100, 200kg |
| Accuracy class |
C3 |
| Rated output |
2.0±0.05mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.018%F.S |
| Hysteresis | 0.017%F.S |
| Repeatability | 0.018%F.S |
| Creep(300min) | 0.0166%F.S. |
| Temp.effect on output | 0.008%F.S./10℃ |
| Temp.effect on zero | 0.0125%F.S./10℃ |
| Input impedance | 380±5Ω |
| Output impedance | 350±2Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~40℃ |
| Operating temp range | -30~70℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Cable size | Φ5.4×1500mm |
| Weight approx. |
0.5kg |
| Material |
Stainless Steel |
| lP class | IP68/IP69 |

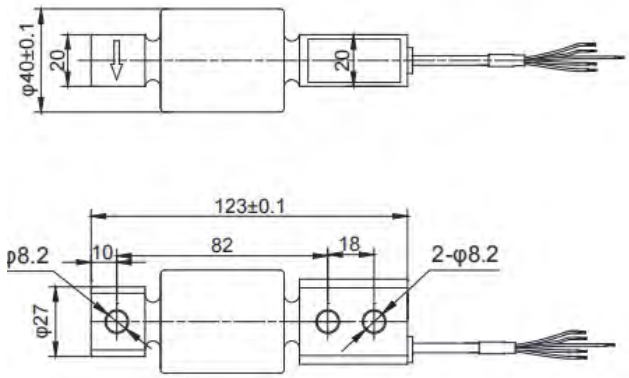

Mounting Dimension

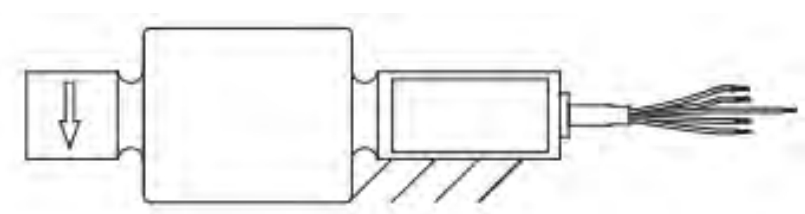

Load Direction
Wiring Code
FAQ
Are you a trading company or a manufacturer?
Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
How long is your delivery time?
4-6 weeks, depending on the situation
What is your terms of payment?
T / T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
What are your terms of delivery?
EXW, FOB, CFR, CIF.
Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
