Canister Load Cell T199E2
Suitablefor Automotive press fit,automated assembly,3CS products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and controlling system
Product Description

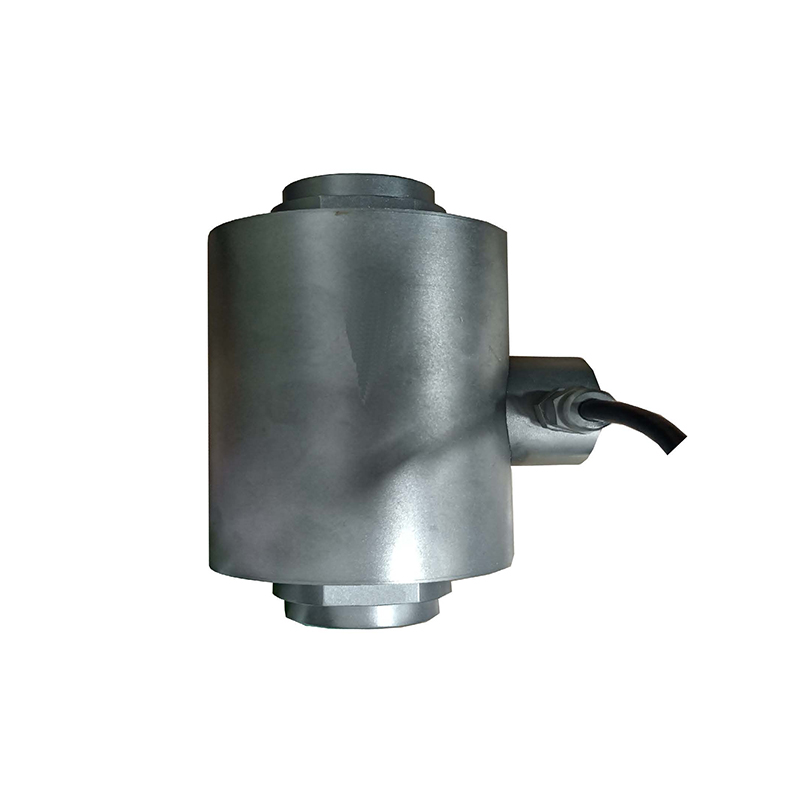

Canister Load Cell
Features & Applications
Lowprofile,smalldeflection
Made of stainless steel or Alloy steel
Mainly used for monitoring of thread force
Suitablefor Automotive press fit,automated assembly,3CS products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and controlling system
Specifications
| Specifications | Technique |
| Capacity | 10,15,20,30,50,100t |
| Accuracy class | C3 |
| Sensitivity | 2±0.005%mV/N |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.02% F.S. |
| Hysteresis | 0.02%F.S. |
| Repeatability | 0.02%F.S. |
| Creep(300min) | 0.02%F.S. |
| Temp.effect on output | 0.0166%F.S./10℃ |
| Temp.effect on zero | 0.0166%F.S./10℃ |
| Input impedance | 390±5Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-12V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10-60℃ |
| Operating temperature range | -20-80℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | Φ6x13000m |
| Material | Stainless steel |
| lP class | IP68 |

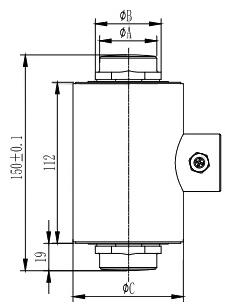

Mounting Dimension
Load Direction

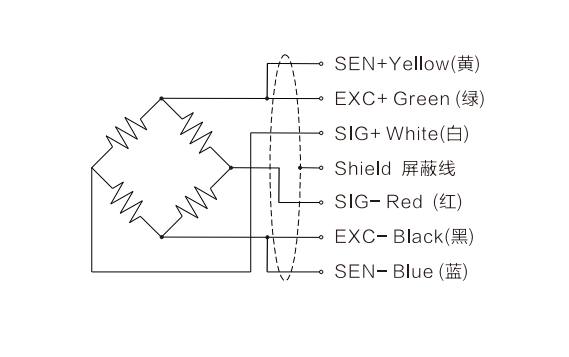

Wiring Code
FAQ
Can you can design the sensor according to our size?
We are fully customized of designing sensors meticulously tailored to our customers' specific requirements.
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
What is your MOQ?
The MOQ is usually 5 to 10 pieces
Are you a trading company or a manufacturer?
Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
How long is your delivery time?
4-6 weeks, depending on the situation
