Canister Load Cell T199F
Suitable for Automotive press fit,automated assembly,3CS products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and controlling system
Product Description
Features & Applications
Low profile,small deflection
Made of stainless steel or Alloy steel
Mainly used for monitoring of thread force
Suitable for Automotive press fit,automated assembly,3CS products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and controlling system
Specifications
| Specifications | Technique |
| Capacity | 5,7.5,15,22.5t |
| Accuracy class | C3 |
| Rated output | 2.0±0.1%mVV |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.02% F.S. |
| Hysteresis | 0.02%F.S. |
| Repeatability | 0.02%F.S. |
| Creep(300min) | 0.02%F.S. |
| Temp.effect on output | 0.008%F.S./10℃ |
| Temp.effect on zero | 0.0125%F.S./10℃ |
| Input impedance | 390±5Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-12V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10-60℃ |
| Operating temperature range | -20-80℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | Φ6x13m |
| Weight approx. | 0.6kg |
| lP class | IP68 |

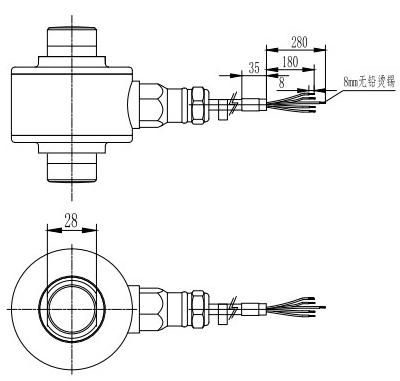

Mounting Dimension
Load Direction

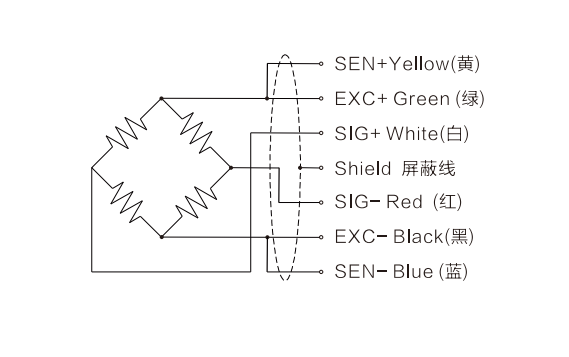

Wiring Code
FAQ
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
What is your MOQ?
The MOQ is usually 5 to 10 pieces
Are you a trading company or a manufacturer?
Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
