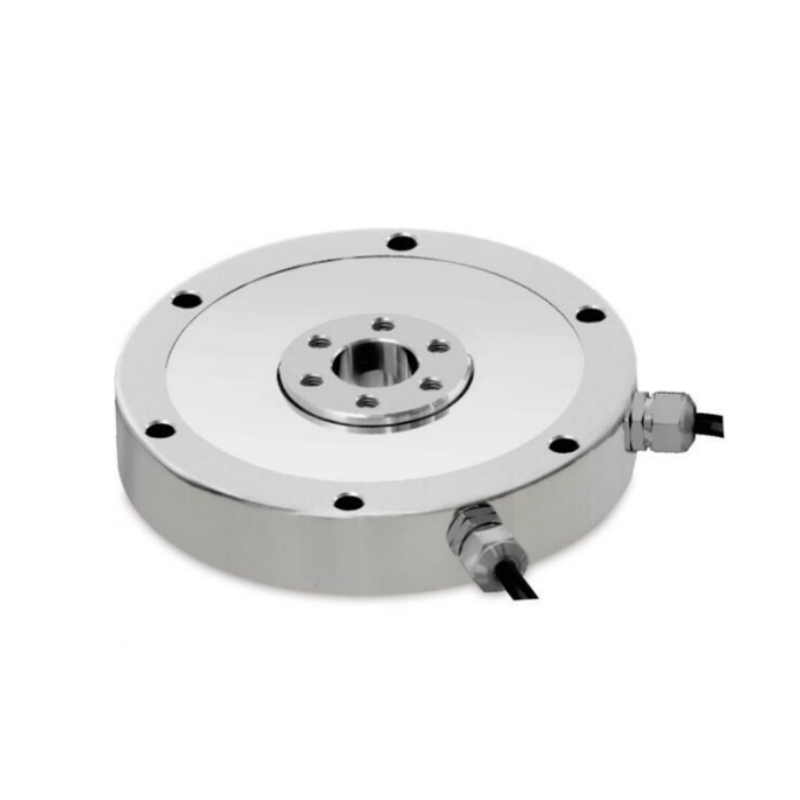

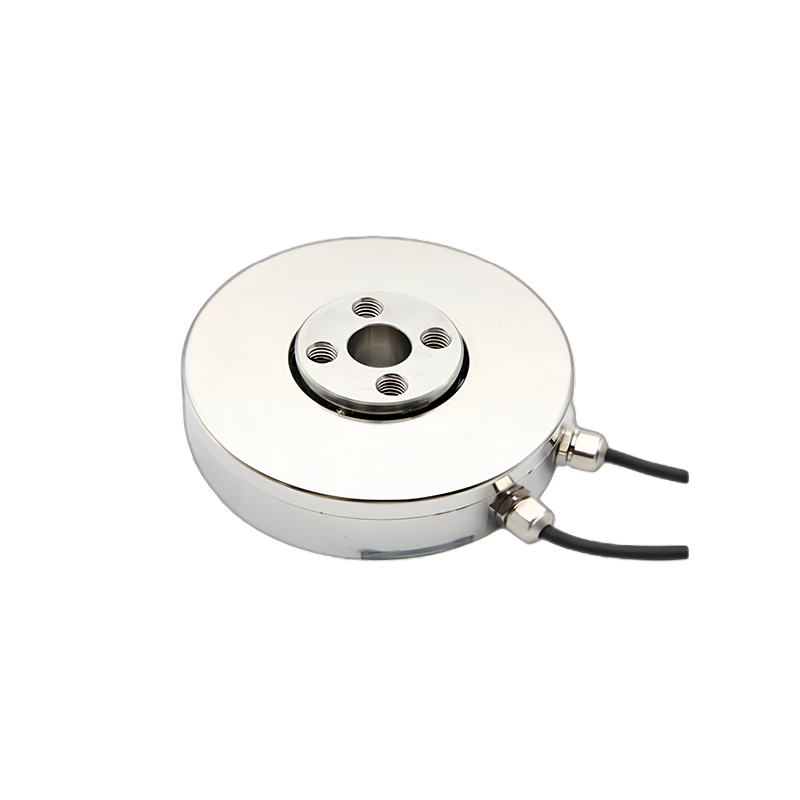

Compression And Torque Sensor R245
High accuracy with strong ability of anti-side force
Product Description
Compression And Torque Sensor
Features & Applications
High accuracy with strong ability of anti-side force
Easy to install and defined gradeIP66.
Dimension could be customizable
automobile stall test,fluid mechanics test measurement
Suitable for Automotive press fit,automated assembly,3Cproducts testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and control system
Specifications
| Specifications | Technique |
| Capacity(N) |
X:100/200/500/1000/2500 Y:100/200/500/1000/2500 |
| Sensitivity | 1.0~1.5mV/V |
| Zero balance | ±2%F.S |
| Non-linearity | 0.1%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.1%F.S. |
| Interference error | 0.3%F.S. |
| Creep(300min) | 0.1%F.S. |
| Temp.effect on output | 0.1%F.S/10℃ |
| Temp.effect on zero | 0.1%F.S/10℃ |
| Input impedance | 785±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~40℃ |
| Operating temperature range | -20-75℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | Φ3×4000mm |
| Weight approx. | 0.8kg |
| lP class | IP66 |

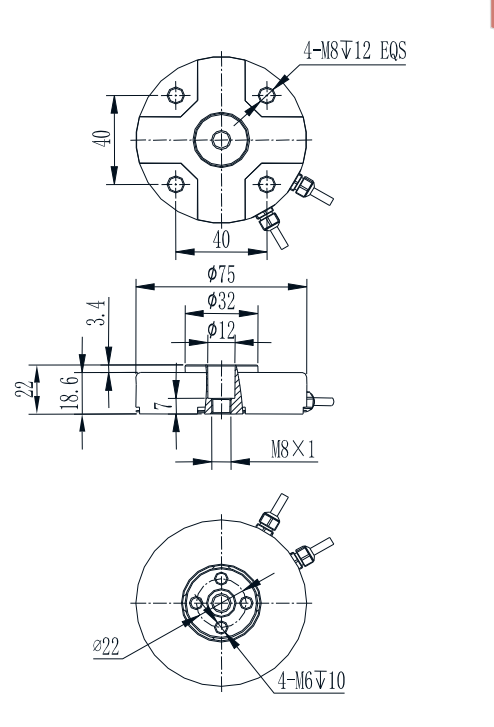

Mounting Dimension

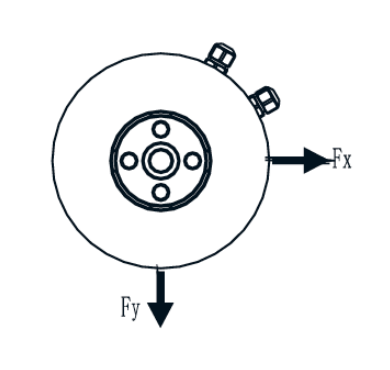

Load Direction
Wiring Code
