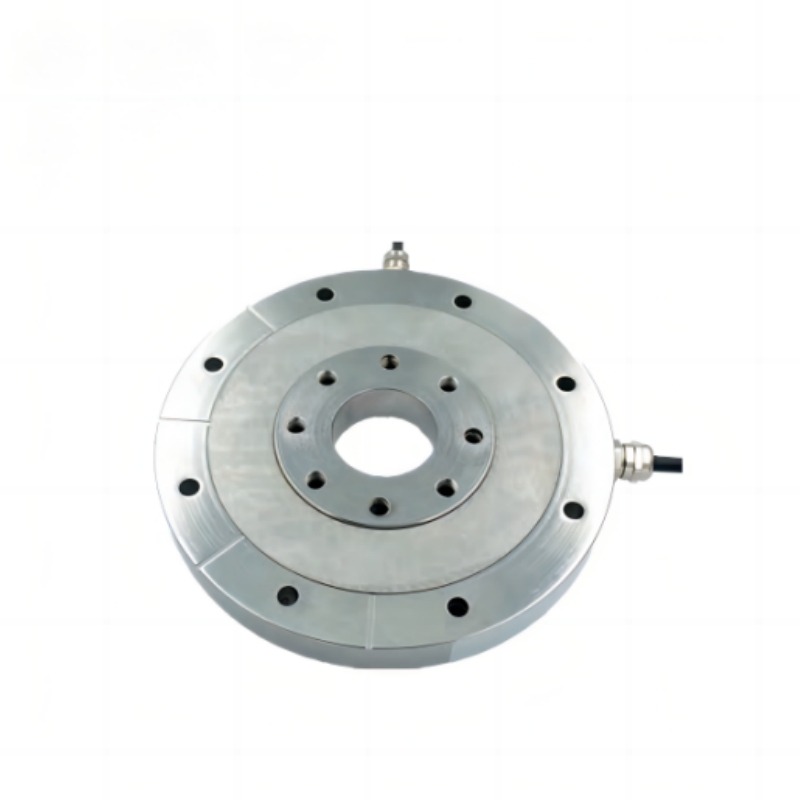

Compression And Torque Sensor T551
Used for automotive press fit,automated assembly,3Cproducts testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and control system
Product Description
Compression And Torque Sensor
Features & Applications
Compression &Torque Biaxial Sensor
Interference errors of each signal is small
Low profile,easy to install
Dimension could be Customized
Used for automotive press fit,automated assembly,3Cproducts testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and control system
Specifications
| Specifications | Technique |
| Capacity(N/N.m) |
F:10/20/30/50kN M:300/500/700/1000N.m |
| Sensitivity | 1.0±10%mV/V |
| Zero balance | ±2%F.S |
| Non-linearity | 0.1%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.1%F.S. |
| Interference error | 0.2%F.S. |
| Creep(300min) | 0.05%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 785±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~40℃ |
| Operating temperature range | -20~75℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | Φ5×4000mm |
| Weight approx. | 0.6kg |
| lP class | IP66 |

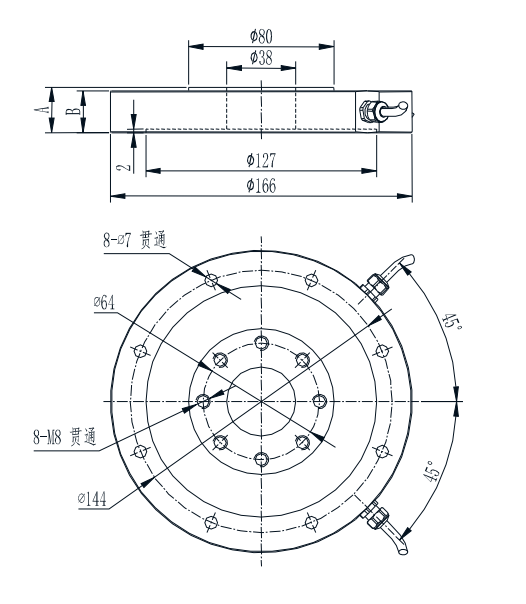

Mounting Dimension
| Cap(kN/N.m) | A | B |
| 10/300,20/500,30/7700 | 25 | 23 |
| 50/1000 | 30 | 28 |
Load Direction
Wiring Code
