Custom pin load cell R606C
low profile,small deflection
Tension and compression application
Mainly used for pulland push dynamometer,hopper scale and industrial measuring system
Product Description
Features & Applications
low profile,small deflection
Tension and compression application
Mainly used for pulland push dynamometer,hopper scale and industrial measuring system
Specifications
| Specifications | Technique |
| Nomial load | 20t |
| Rated output | ±0.2mV/V |
| Zero balance | ±1%F.S. |
| Non-linearity | 0.1%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.03%F.S. |
| Creep(300min) | 0.05%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.03%F.S./10℃ |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10-60℃ |
| Operating temperature range | -40~80℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 300%F.S. |
| Cable size | Φ6x1m |
| Service life | 1 million times |
| lP class | IP66 |
Mounting Dimension

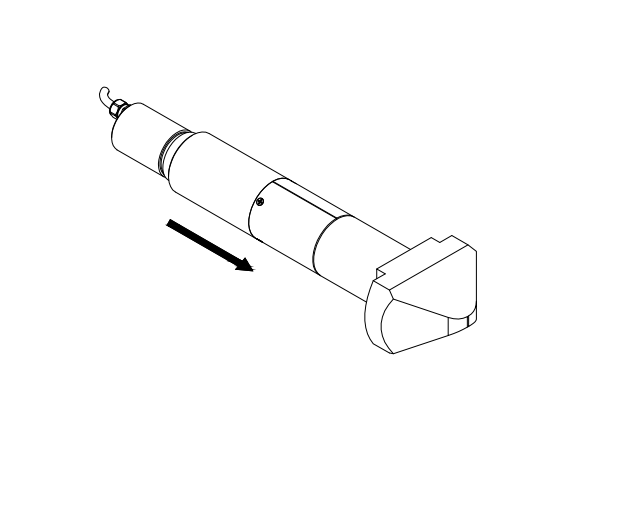

Load Direction

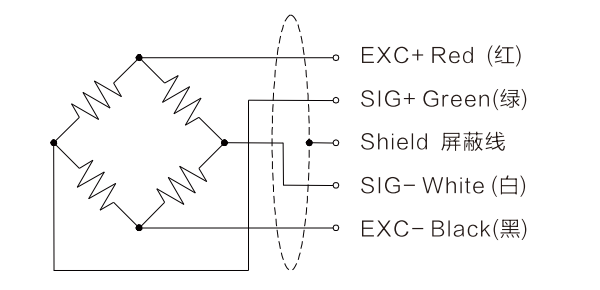

Wiring Code
