Custom pin load cell T904
Made of stainless steel,long term stability
Used for ports,terminals and cargo cranes as well as hoist,lifting equipment and safety testing applications
Shape and size customized
Product Description
Features & Applications
Made of stainless steel,long term stability
Used for ports,terminals and cargo cranes as well as hoist,lifting equipment and safety testing applications
Shape and size customized
Specifications
| Specifications | Technique |
| Capacity | 50kN |
| Sensitvity | 1.015%V/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.5%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.2%F.S. |
| Creep(300min) | 0.05%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 780/380±20Ω |
| Output impedance | 700/350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 10V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10-60℃ |
| Operating temperature range | -20~80℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 300%F.S. |
| Cable size | M12X1-4P |
| Material | Stainless Steel |
| Weight approx | 1.8kg |
| lP class | IP67 |

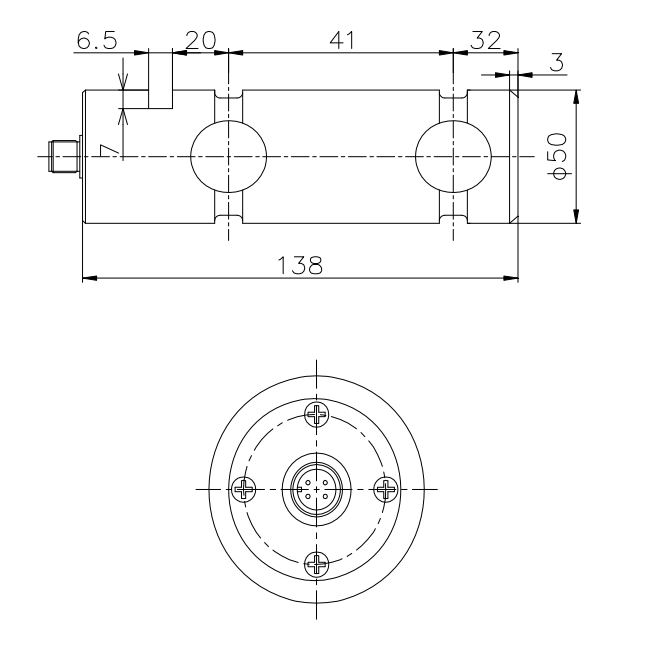

Mounting Dimension

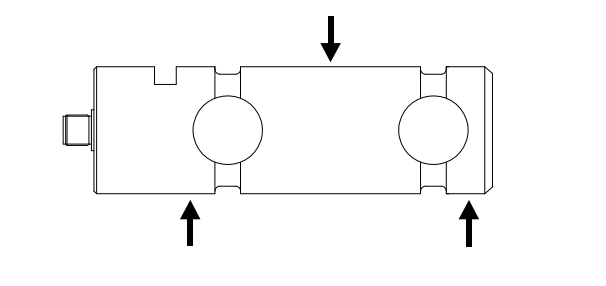

Load Direction
Wiring Code
