Piezoelectric Ring Force Transducers T401
Use piezoelectric material to convert the measured force into electrical signal
Wide available frequency range and wide dynamic range
Strong structure and long service life
IEPE circuit are installed, output with voltage signal
Product Description

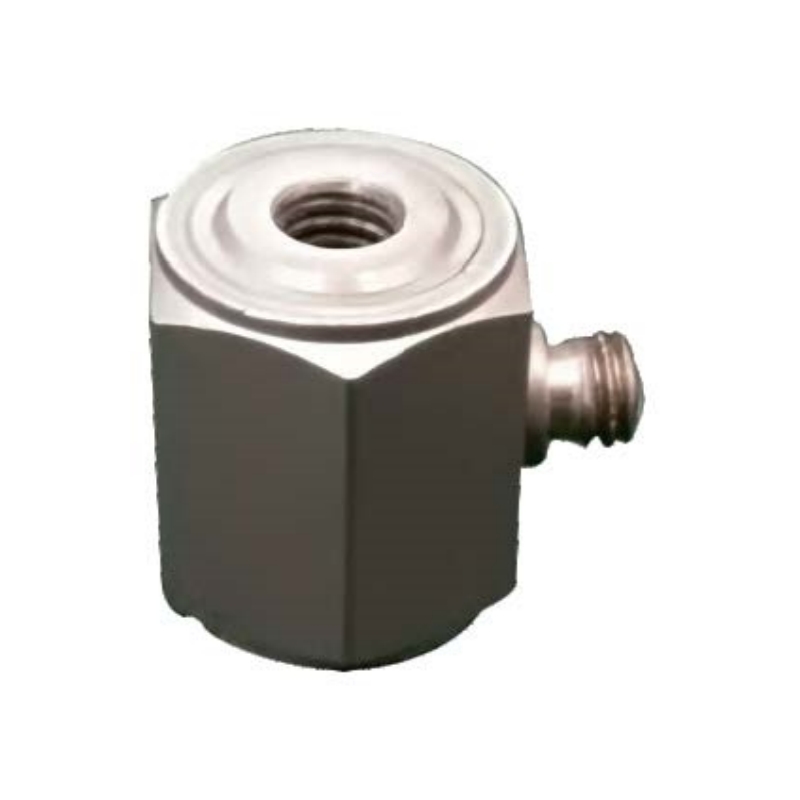

Piezoelectric Ring Force Transducers
Features & Applications
Use piezoelectric material to convert the measured force into electrical signal
Wide available frequency range and wide dynamic range
Strong structure and long service life
IEPE circuit are installed, output with voltage signal
Specifications
| Specifications | Technique |
| Capacity |
5,15,35,60,100,200,600kN |
| Rated output |
4 pCN, 2/0.7 pC/N(600kN) |
| Non-linearity |
1%F.S. |
| Operation temp range |
-54~+121℃ |
| Method of sealing |
Laser Welding |
| Output mode | M5 |
| Cable jumper | D01 |
| Material | Stainless Steel |

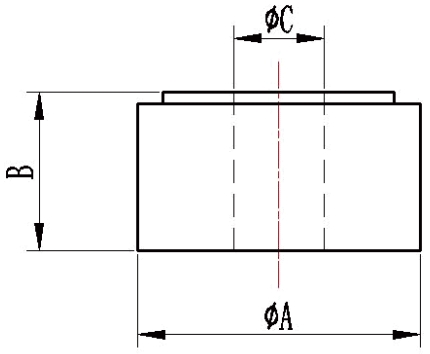

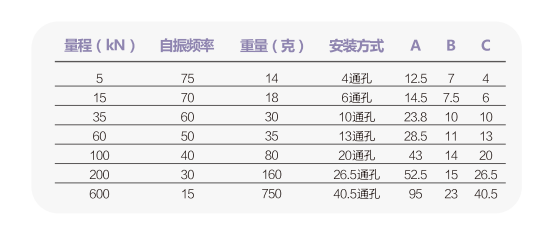

Mounting Dimension

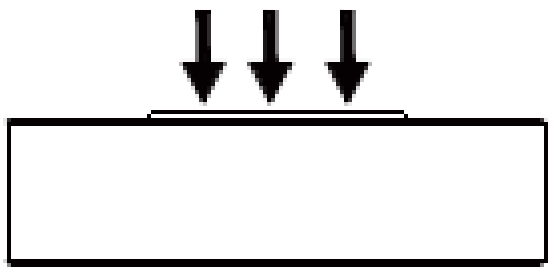

Load Direction
Wiring Code
