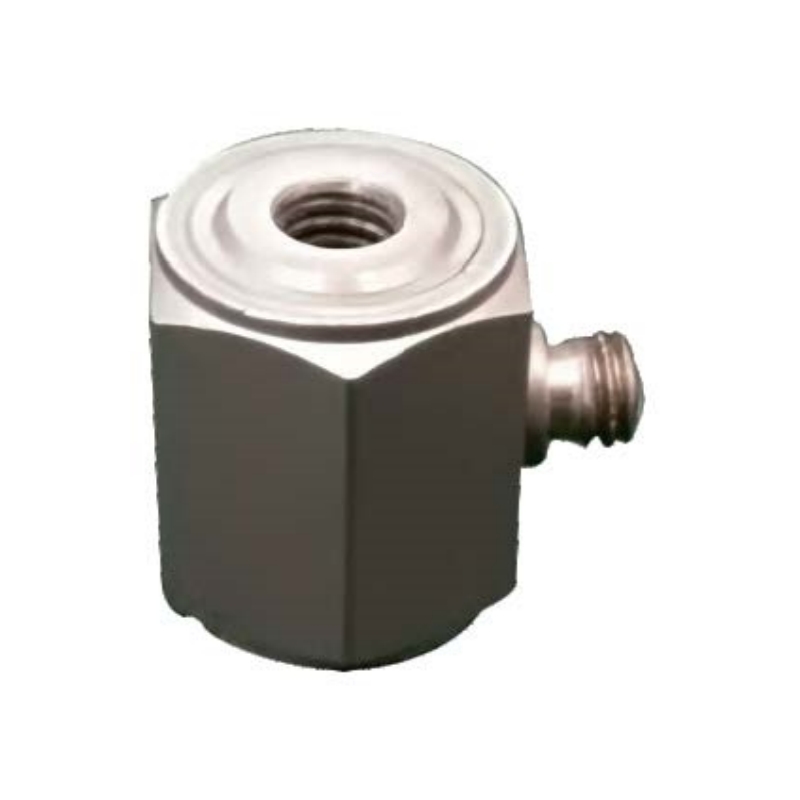

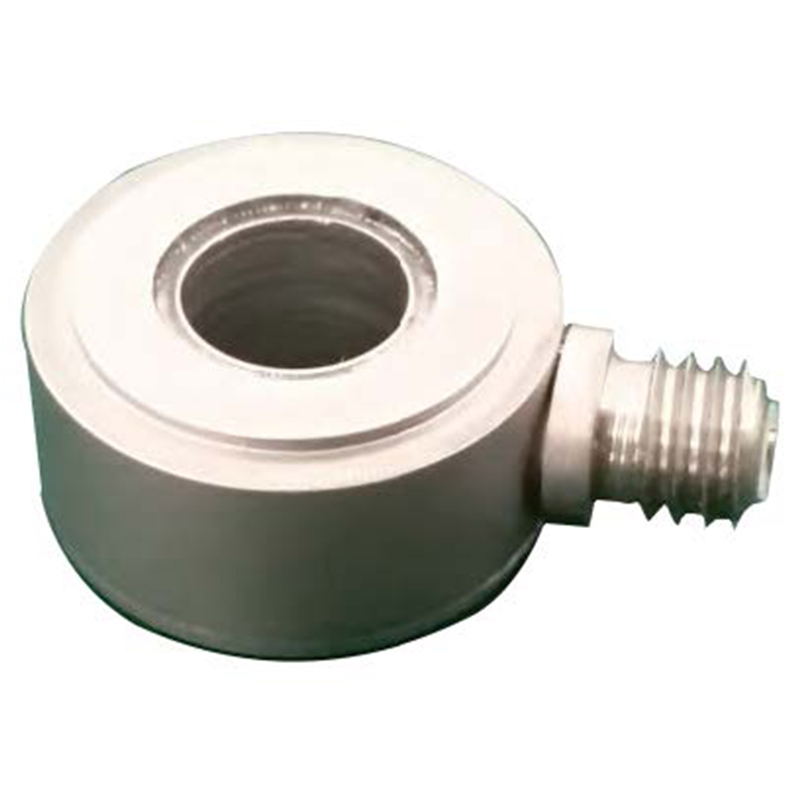

Piezoelectric ring force transducers T421
Use piezoelectric material to convert the measured force into electrical signal
Wide available frequency range and wide dynamicrange
Strong structure and long service life
IEPE circuit are installed,output with voltage signal
Product Description
Features & Applications
low profle,small deflection
Tension and compression application
Mainly used for pull and push dynamometer,hopper scale and industrial measuring system
Specifications
| Specifications | Technique |
| Capacity | 0.5,1,5,10,30,50,60kN |
| Rated output | 3pCN |
| Non-linearity | 1%F.S. |
| Operation temp range | -54~+121℃ |
| Method of sealing | Laser welding |
| Output mode | M5 |
| Cable jumper | D01 |
| Material | Stainless Steel |

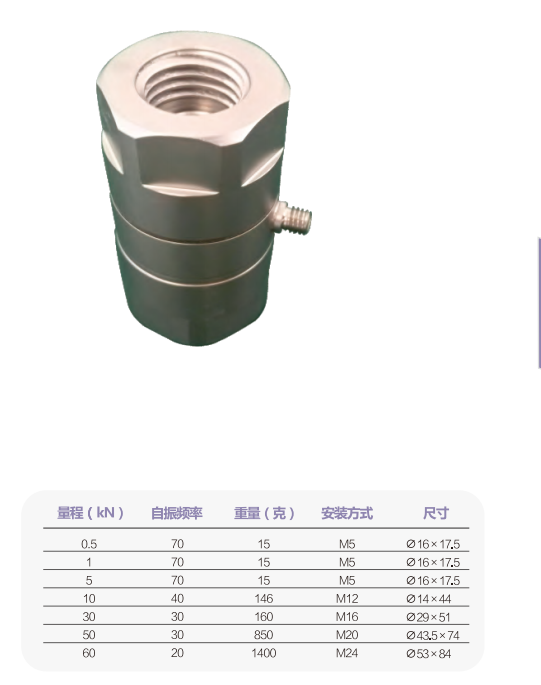

Mounting Dimension

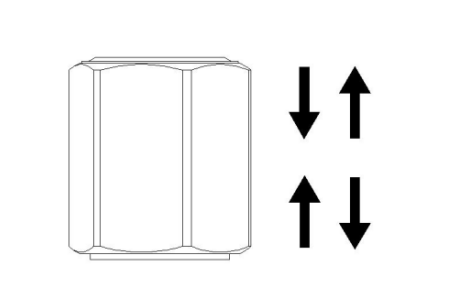

Load Direction
Wiring Code
