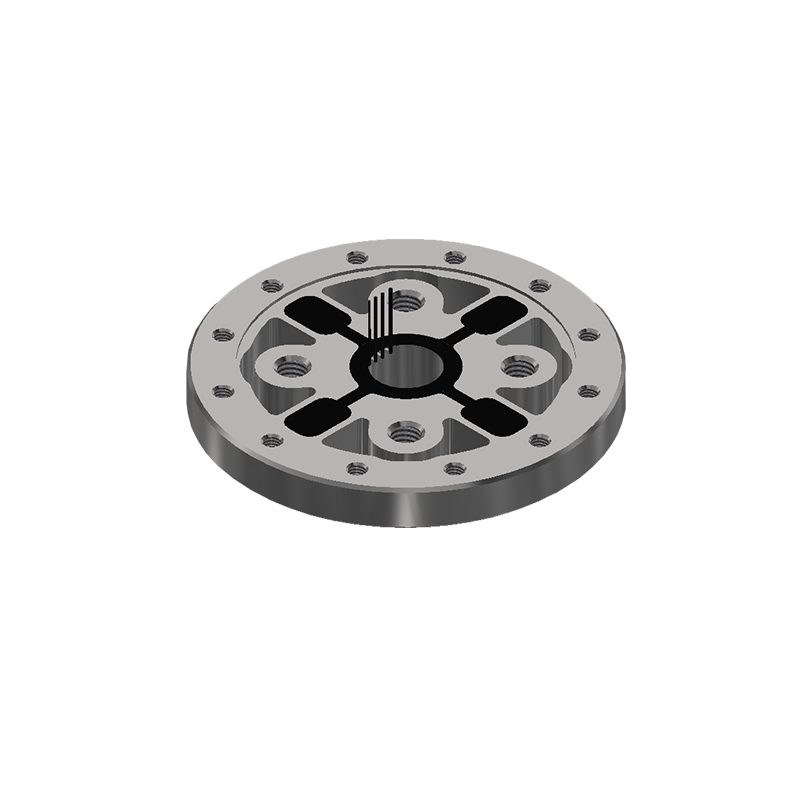

Robot Joint Torque Sensor F209C-41
High precision, strong resistance to unbalanced load, easy installation, IP66, accept custom specifications, precise control of robot arms, curved surface grinding and polishing, precision carving processing in machining center, precision testing of medical equipment.
Product Description
Robot Joint Torque Sensor
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 2,30,50N.m |
| Nominal(rated)sensitivity | 1.5±20%mV/V |
| Zero balance | ±0.05mV/V |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.5%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(30min) | 0.1%F.S. |
| Temp.effect on sensitvty | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 700±70Ω |
| Output impedance | 700±50Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -20-80℃ |
| Safe load limit | 150%FS. |
| Breaking load | 200%FS. |
| Cable size | φ2×200mm |
| Protection class | IP66 |

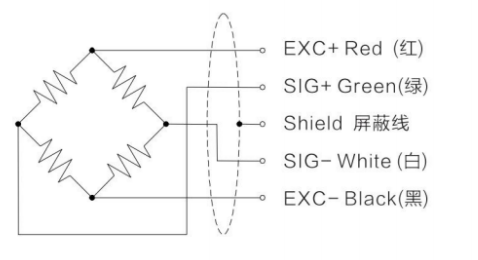

Wiring Code
