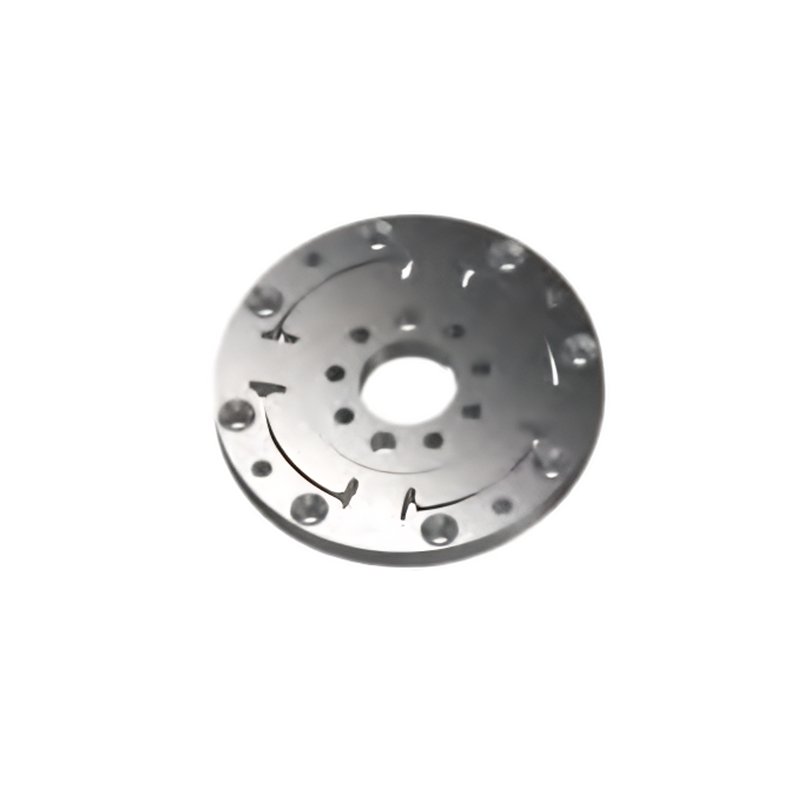

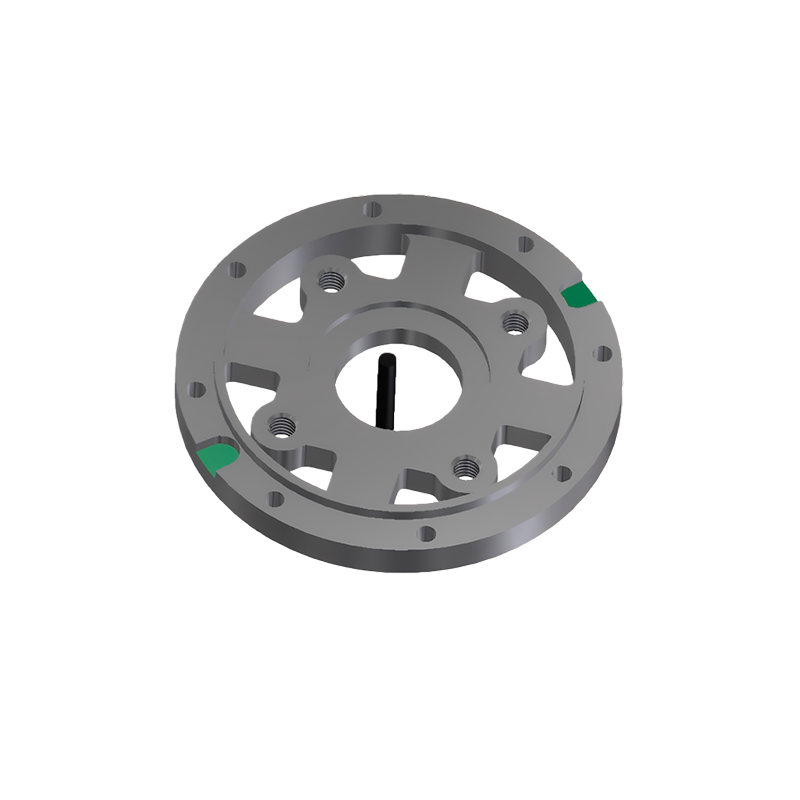

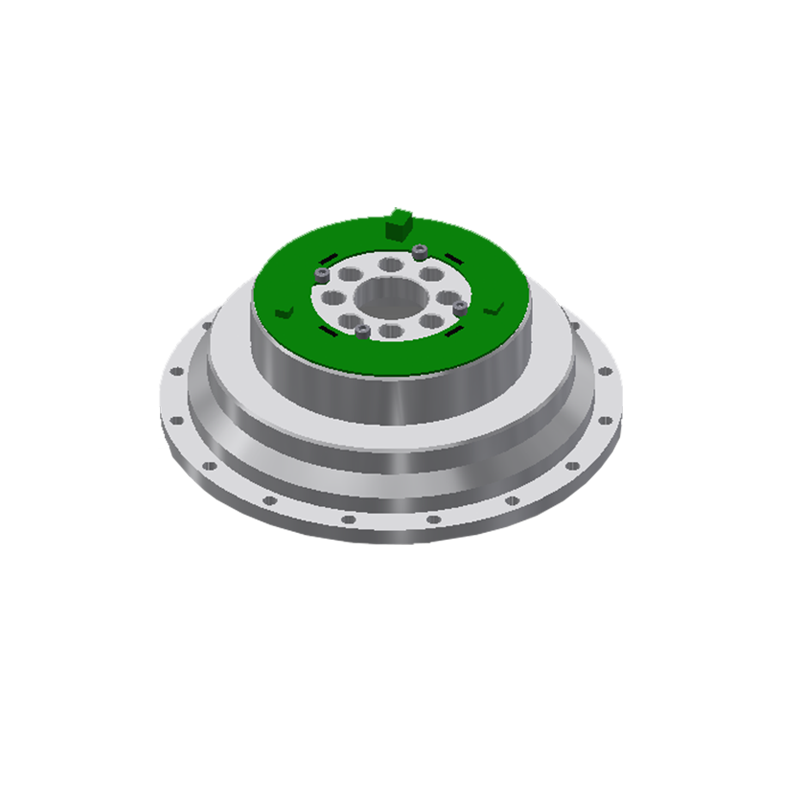

Robot Joint Torque Sensor F209H
Static torque sensor, compact structure and easy installation, protection level:IP65, used for static, non-continuous rotation torque value measurement.
Product Description
Robot Joint Torque Sensor
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 600N.m |
| Nominal(rated)sensitivity | 1.0±20%mV/V |
| Zero balance | ±0.05mV/V |
| Non-linearity | 0.5%F.S. |
| Hysteresis | 0.5%F.S. |
| Repeatability | 0.3%F.S. |
| Creep(30min) | 0.3%F.S. |
| Temp.effect on sensitvty | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 2000±20Ω |
| Output impedance | 2000±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -20-80℃ |
| Safe load limit | 150%FS. |
| Breaking load | 200%FS. |
| lP class | IP65 |

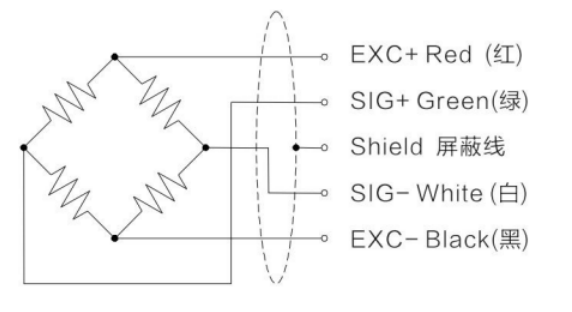

Wiring Code
