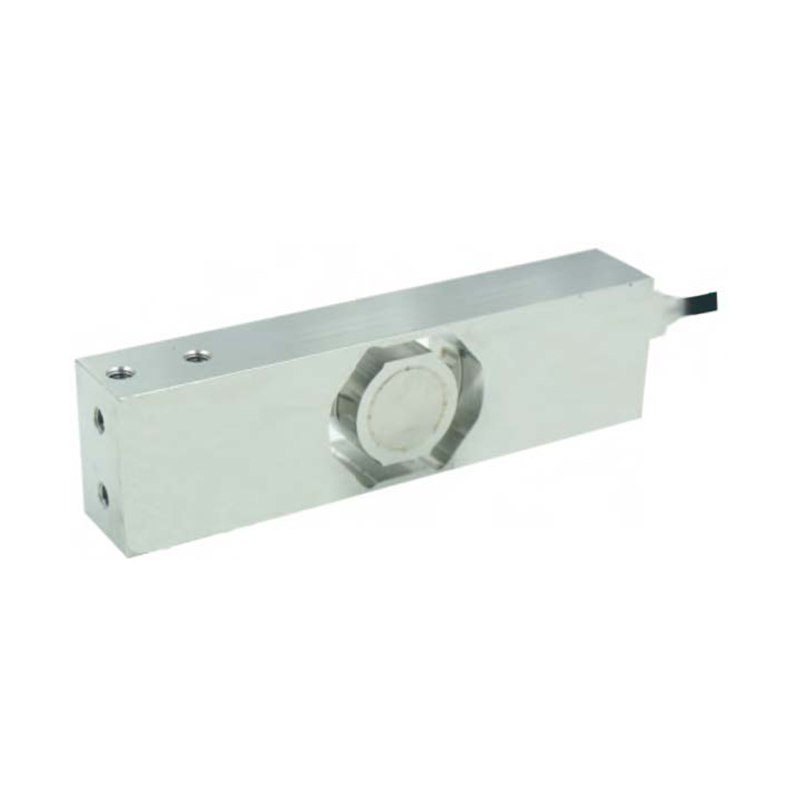

Single Point Load Cell T704
Used in various automated stamping applications,IP68 protection
Product Description
Single Point Load Cell
Features & Applications
Made of Stainless Steel,Strong stability
Used in various automated stamping applications,IP68 protection
Mainly used for Food and pharmaceutical industry and industrial measuring system
Specifications
| Specifications | Technique |
| Capacity | 6,10,20,30,50,100kg |
| Accuracy class | C3 |
| Rated output | 2.0±10%mVV |
| Zero balance | ±5%F.S. |
| Non-linearity | 0.0166%F.S. |
| Hysteresis | 0.0166%F.S. |
| Repeatability | 0.018%F.S. |
| Creep(300min) | 0.0166%F.S. |
| Temp.effect on output | 0.0175%F.S/10℃ |
| Temp.effect on zero | 0.0125%F.S./10℃ |
| Input impedance | 390±5Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation Voltage | 12V |
| Compensated temp range | -10-40℃ |
| Operating temperature range | -10~50℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | Φ6×1500mm |
| Weight approx. | 0.5kg |
| Material | Stainless Steel |
| lP class | IP68 |
| Max.platform size | 500mm×400mm |

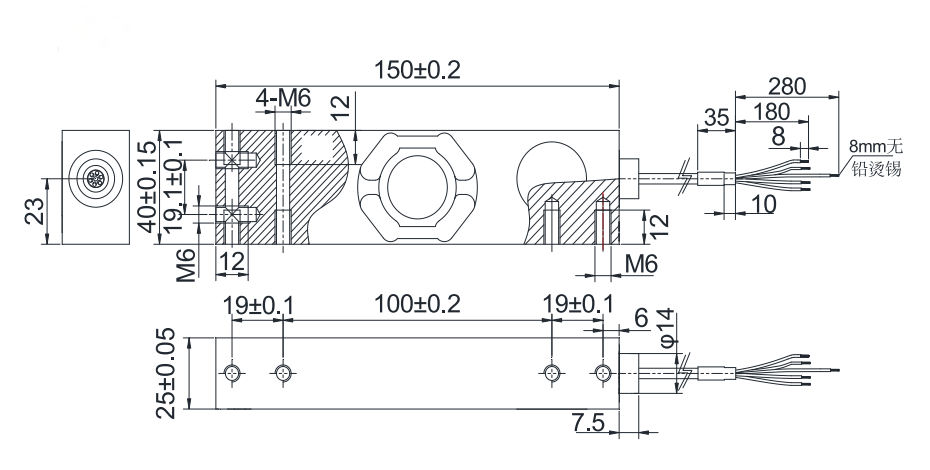

Mounting Dimension

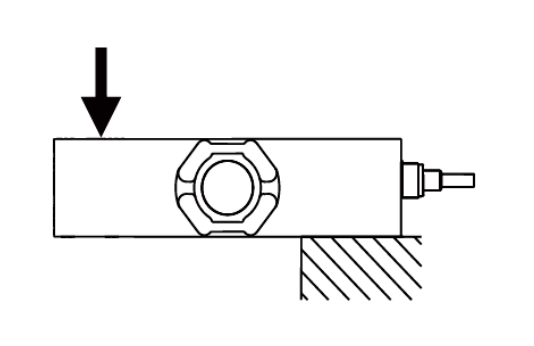

Load Direction

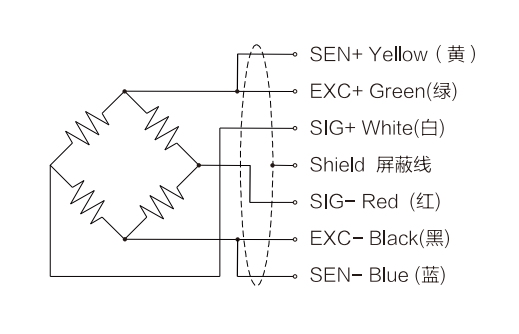

Wiring Code
FAQ
Can you can design the sensor according to our size?
We are fully customized of designing sensors meticulously tailored to our customers' specific requirements.
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
What is your MOQ?
The MOQ is usually 5 to 10 pieces
Are you a trading company or a manufacturer?
Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
How long is your delivery time?
4-6 weeks, depending on the situation
