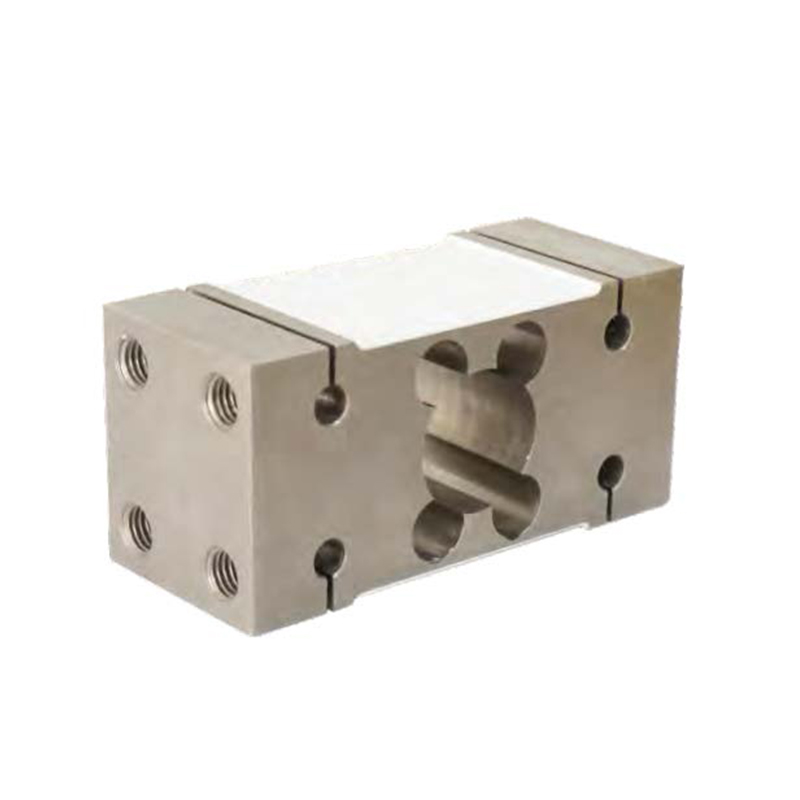

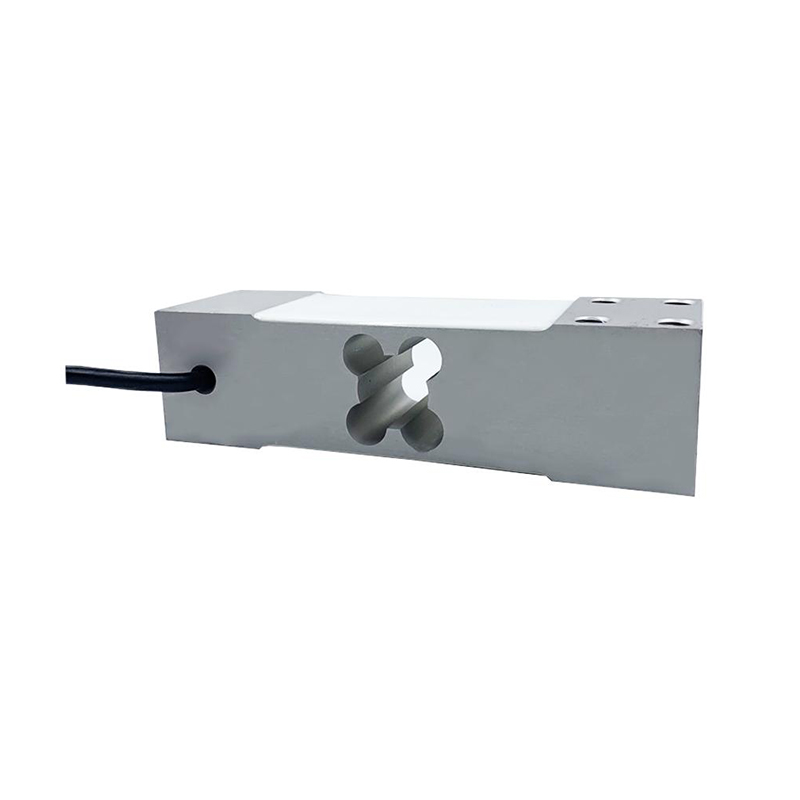

Single Point Load Cell T709C
Mainly used for electronic scales,electronic balance,price computing scales and industrial weighing systems
Product Description
Single Point Load Cell
Features & Applications
Made of aluminum alloy.
High accuracy,Strong ablity of anti-side force
Easy to install,IP67 protection
Mainly used for electronic scales,electronic balance,price computing scales and industrial weighing systems
Specifications
| Specifications | Technique |
| Capacity | 150,300,500kg |
| Accuracy cass | C3 |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.0166%F.S. |
| Hysteresis | 0.0166%F.S. |
| Repeatability | 0.02%F.S. |
| Creep(300min) | 0.017%F.S. |
| Temp.effect on output | 0.0.017%F.S./10℃ |
| Temp.effect on zero | 0.02%F.S./10℃ |
| Input impedance | 420±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-15V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~40℃ |
| Operating temperature range | -20~50℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | Φ6×3000mm |
| Weight approx. | 0.6kg |
| Material | aluminum alloy |
| lP class | IP67 |
| Max.platform size | 600mm×500mm |

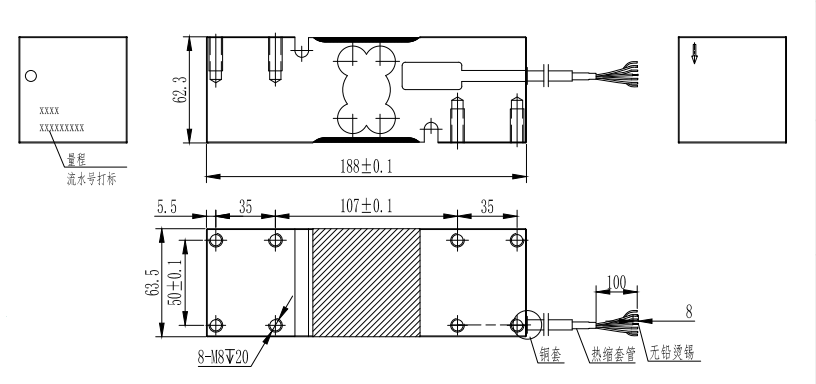

Mounting Dimension

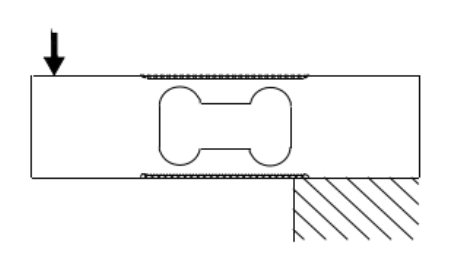

Load Direction

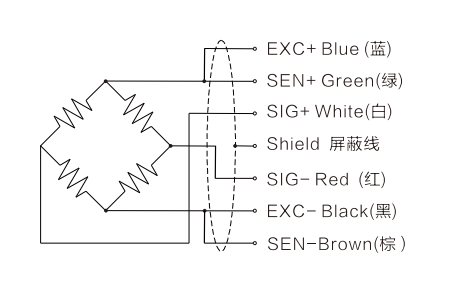

Wiring Code
