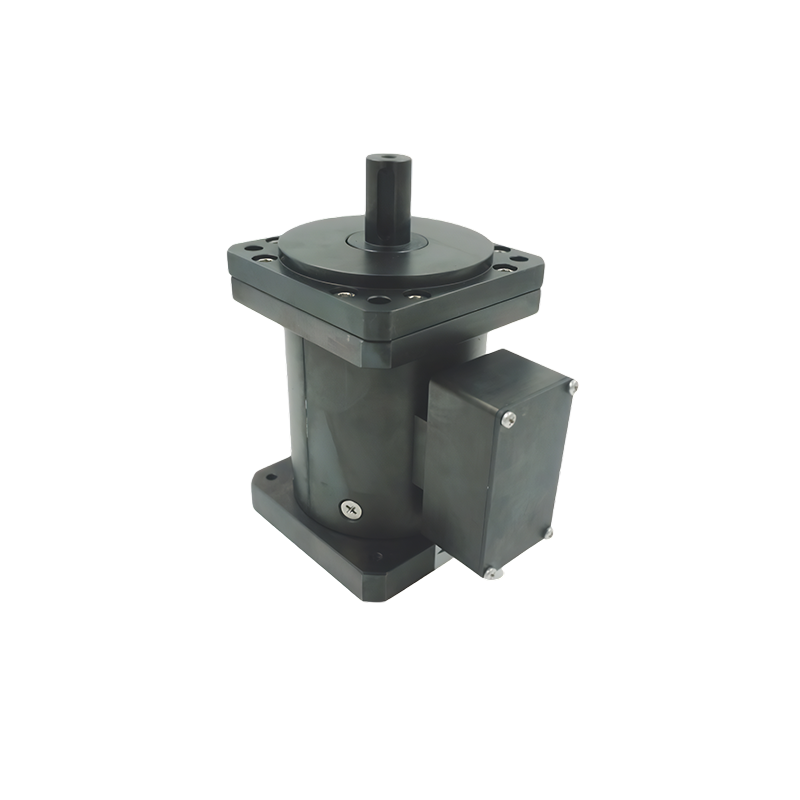

Static Torque Sensor R473
The R473 is a static torque sensor. Our torque sensors range from 5N.m to 100N.m to accurately measure discontinuous rotating torque forces. The sensor is very compact and easy to install.
Product Description
Static Torque Sensor
Specifications
| Specifications | Technique |
| Nomial load | 5,10,20,50,100N.m |
| Rated output | -10V~+10V |
| Zero balance | ±0.05mV/V |
| Non-linearity | 0.3%F.S. |
| Hysteresis | 0.3%F.S. |
| Repeatability | 0.3%F.S. |
| Creep(30min) | 0.3%F.S. |
| Temp.effect on sensitvty | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 24V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -20-80℃ |
| Safe load limit | 150%FS. |
| Breaking load | 200%FS. |
| lP class | IP65 |
| Cable size | φ5×4000mm |
| Material | Alloy Steel |

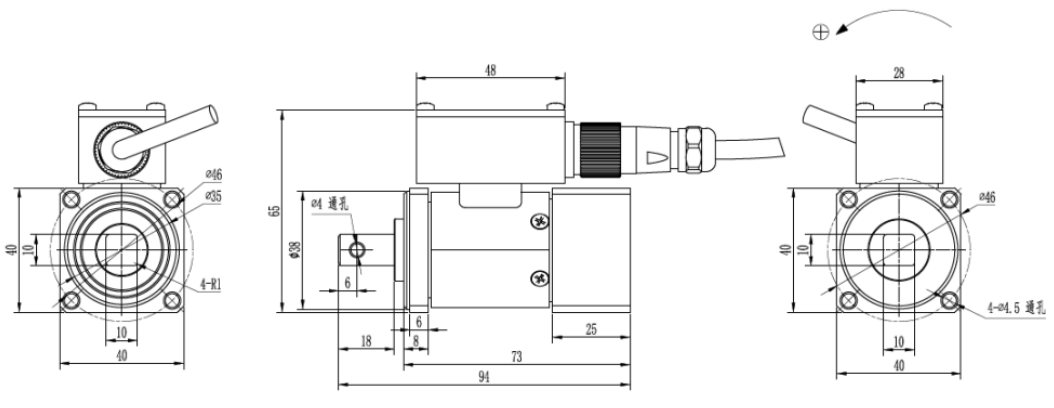

0~50N.m

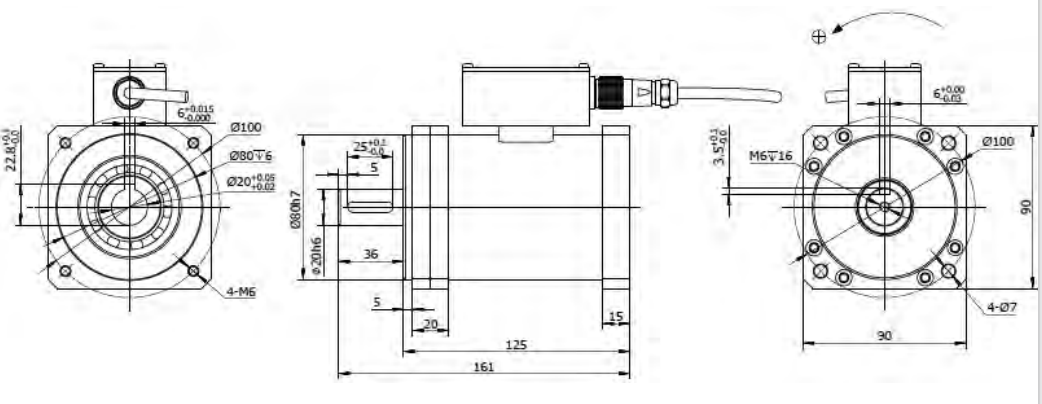

100N.m

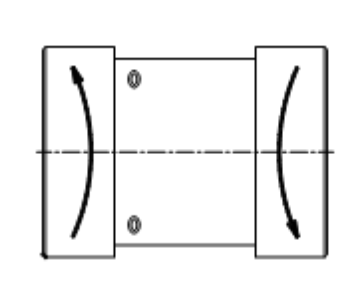

Load Direction

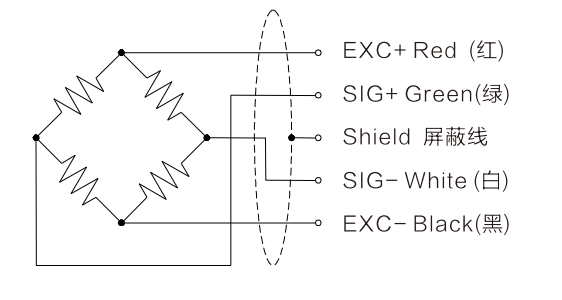

Wiring Code
