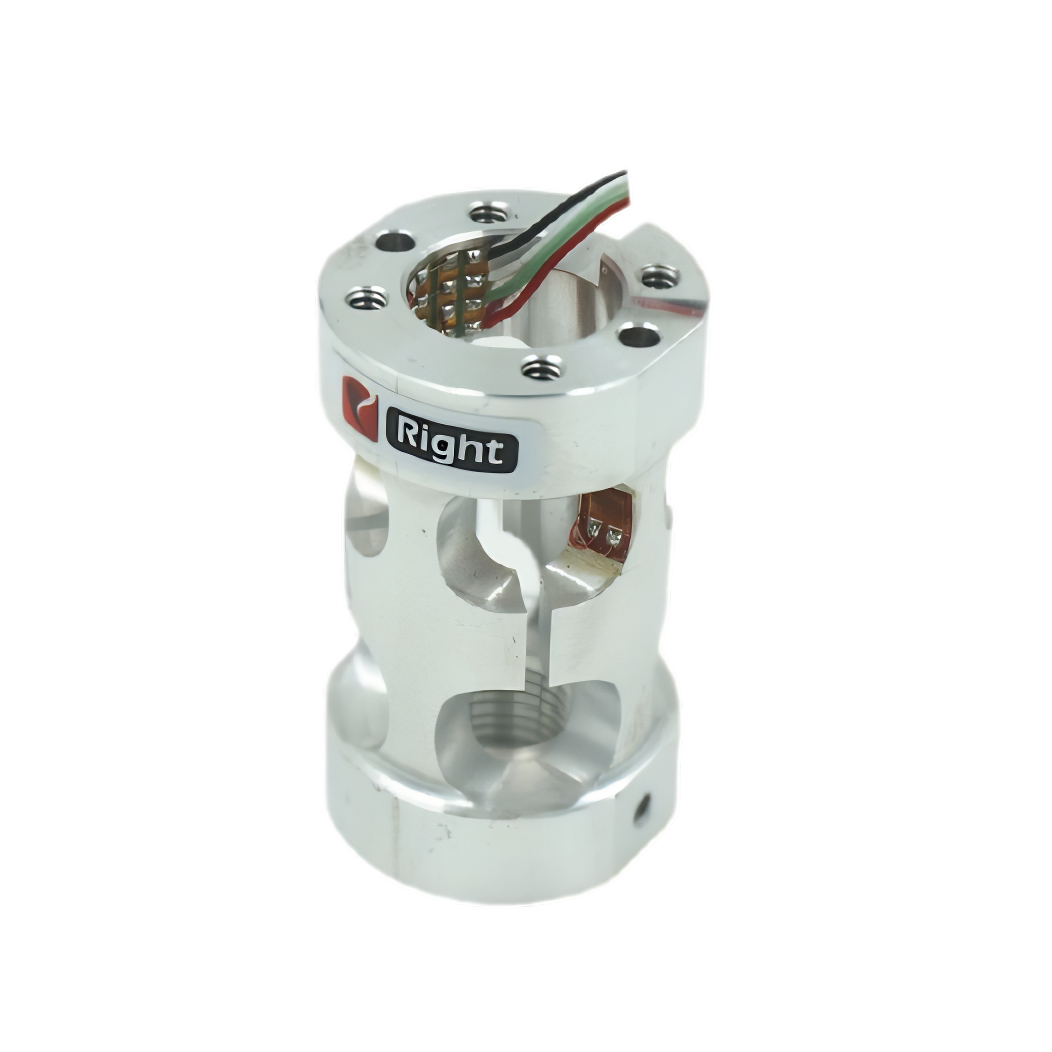

Static Torque Sensor T903S
The T903S static torque sensor is commonly used to measure rapidly changing torque on a non-rotating shaft. The range range of this torque sensor ranges from 0.1-12N.m for different application scenarios. It provides accurate measurements of the torque acting on the sensor shaft in both rotational directions. The sensor is very compact and easy to install.
Product Description
Static Torque Sensor
Specifications
| Specifications | Technique |
| Nomial load | 0.1,0.3,1.5,3,6,10,12N.m |
| Rated output |
≥0.8mVV(0.1~0.3N.m) ≥1.8mVV(1.5N.m) |
| Zero balance | ±3%mVN |
| Non-linearity | ±0.2%F.S. |
| Hysteresis | ±0.2%F.S. |
| Repeatability | ±0.2%F.S. |
| Creep(30min) | ±0.2%F.S. |
| Temp.effect on sensitvty | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 1000±20Ω |
| Output impedance | 1000±10Ω |
| Insulation | ≥5000MΩ/50VDC |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -20-80℃ |
| Safe load limit | 120%FS. |
| Breaking load | 150%ES. |
| lP class | IP65 |

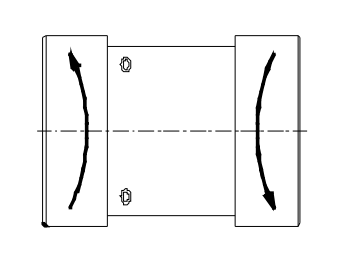

Load Direction

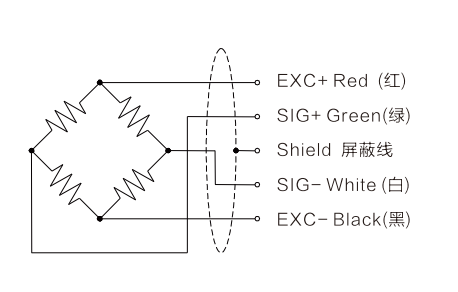

Wiring Code
