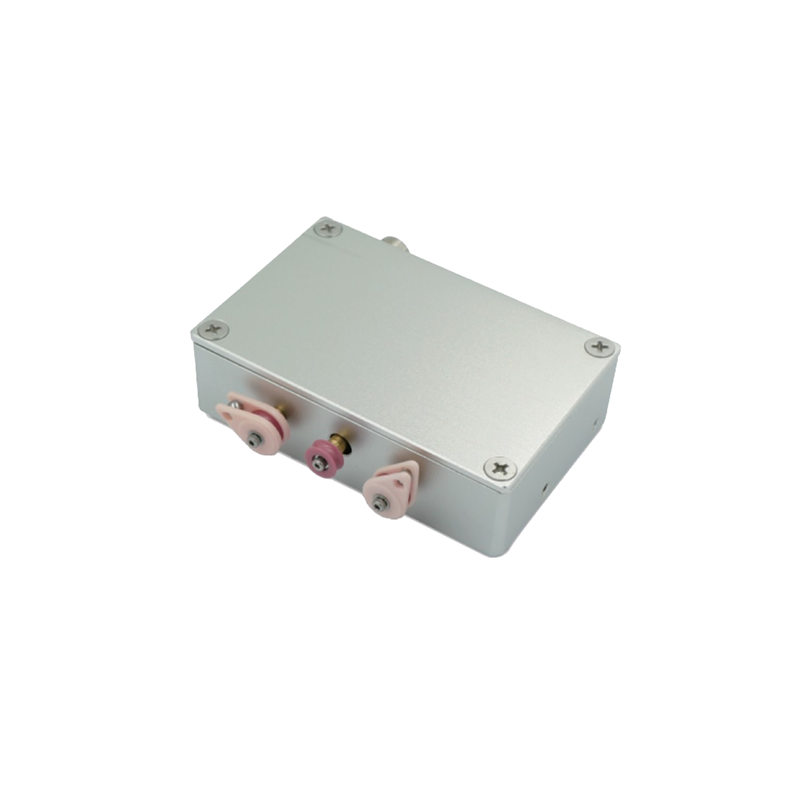

Tension Force Sensor R253

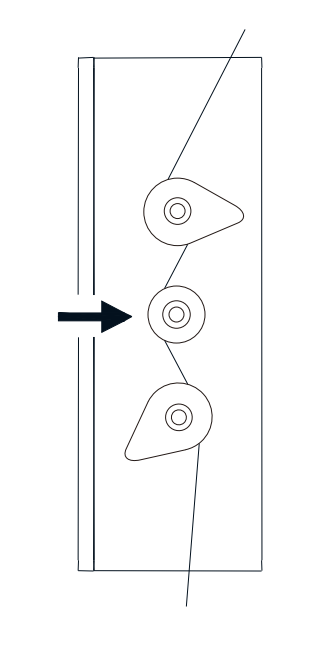

R253 is used to measure tensile force and is made of aluminum alloy. High precision and strong resistance to deflection load. It is mainly used to measure and control the tension of wires.
Product Description
Tension Force Sensor
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 100g,200g,500g,1kg,2kg |
| Accuracy dass | C3 |
| Nominal(rated)sensitivity |
1.0±10%mVN(300g,500g) 2.0±10%mVN(1~5kg) |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.05%F.S. |
| Hysteresis | 0.05%F.S. |
| Repeatability | 0.05%F.S. |
| Creep(30min) | 0.3%F.S. |
| Temp.effect on sensitvty | 0.03%F.S./10℃ |
| Temp.effect on zero | 0.03%F.S./10℃ |
| Nput impedance | 380±40Ω |
| Output impedance | 380±40Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-15V |
| Maximum excitation | 15V |
| Compensated temp range | -10-40℃ |
| Operating temperature range | -25-70℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 300%F.S. |
| lP class | IP65 |
| Cable size | φ4×400mm |
| Weight approx | 0.1kg |
| Material | aluminum alloy |
| Max.platfom size | 200mm×200mm |
