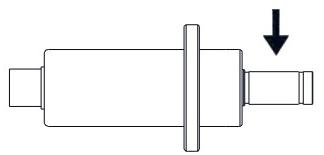

Tension Force Sensor T203
The T203 sensor is used for tension testing. With its compact and rugged design, the product is ideal for a variety of applications, is compact and easy to install. This product ranges from 10 to 200N.
Product Description

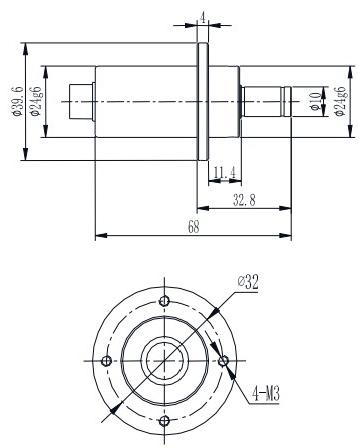

Tension Force Sensor
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 10,20,50,100,200N |
| Accuracy cass | 0.2% |
| Nominal(rated)sensitivity | 2.0±0.02mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.1%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(30min) | 0.1%F.S. |
| Temp.effect on sensitvty | 0.03%F.S./10℃ |
| Temp.effect on zero | 0.03%F.S./10℃ |
| Nput impedance | 350±10Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-15V |
| Maximum excitation | 15V |
| Compensated temp range | -10-40℃ |
| Operating temperature range | -30-70℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 300%F.S. |
| lP class | IP67 |
| Cable size | φ4×1500mm |
| Weight approx | 0.2kg |
| Material | Stainless Steel |
