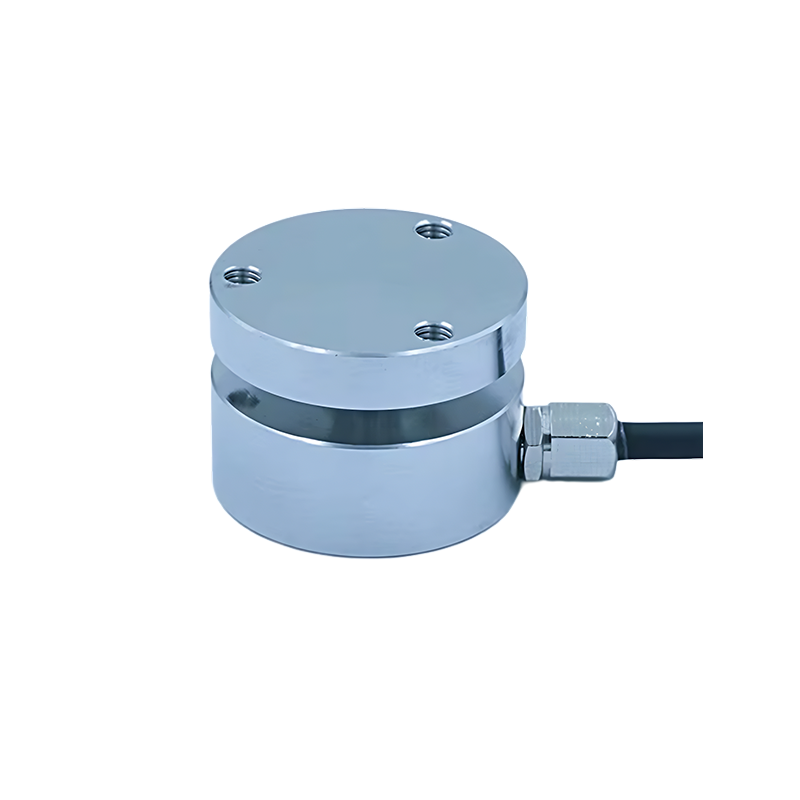

Compression Button Load Cell R403
Suitable for Automotive press fit,automated assembly,3C products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and control system
Product Description
Compression Button Load Cell
Specifications
| Specifications | Technique |
| Capacity | 0.2,0.5,1,2,3,5kN |
| Rated output | 1.0±20%mV/V |
| Zero balance | ±0.05mV/V |
| Non-linearity | 0.50%F.S. |
| Hysteresis | 0.50%F.S. |
| Repeatability | 0.20%F.S. |
| Creep(30min) | 0.10%F.S |
| Temp.effect on sensitvty | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Nput impedance | 800~1100Ω |
| Output impedance | 800~1100Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 15V |
| Compensated temp range | -10-60℃ |
| Operating temperature range | -20-80℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 200%F.S. |
| lP class | IP67 |
| Cable size | φ3×4000mm |
| Weight approx. | 0.1kg |
| Material | Stainless Steel |
FAQ
What is your MOQ?
The MOQ is usually 5 to 10 pieces
Are you a trading company or a manufacturer?
Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
What is your terms of payment?
T / T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
What are your terms of delivery?
EXW, FOB, CFR, CIF.
How about your delivery time?
Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
