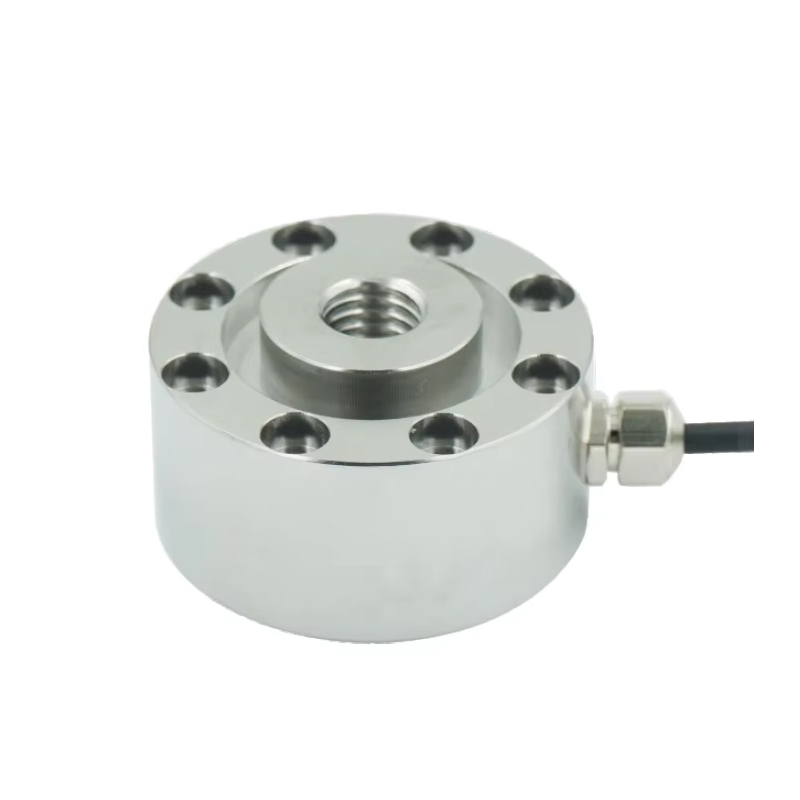

Compression Button Load Cell T120
Suitable for Automotive pressfit,automated assembly,3C products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and contro system
Product Description

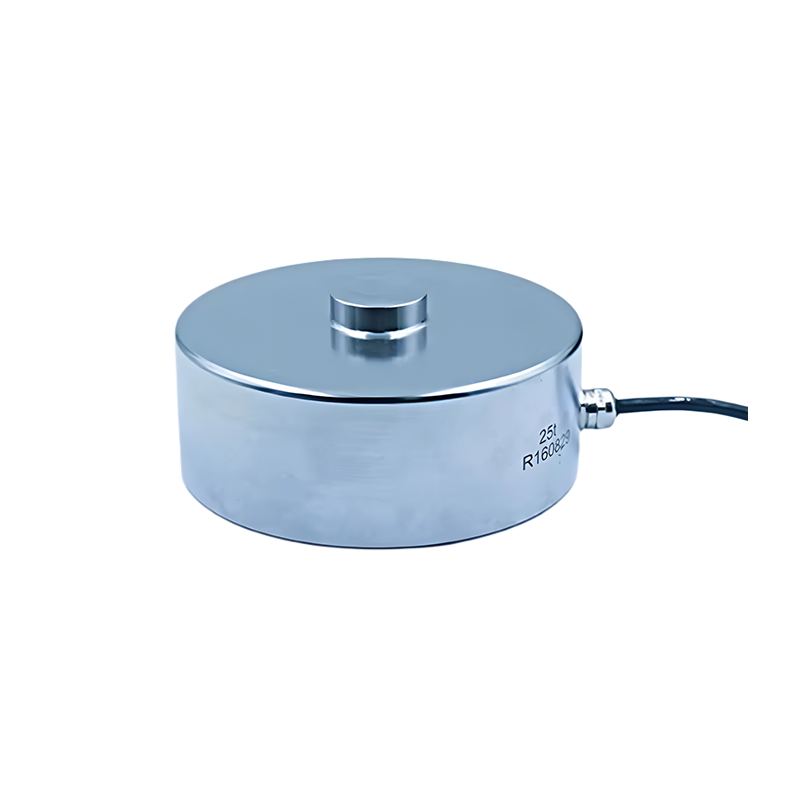

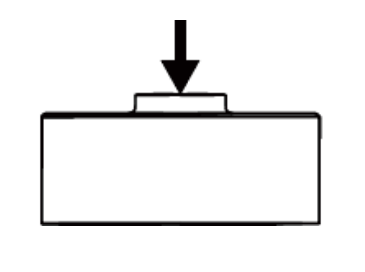

Compression Button Load Cell

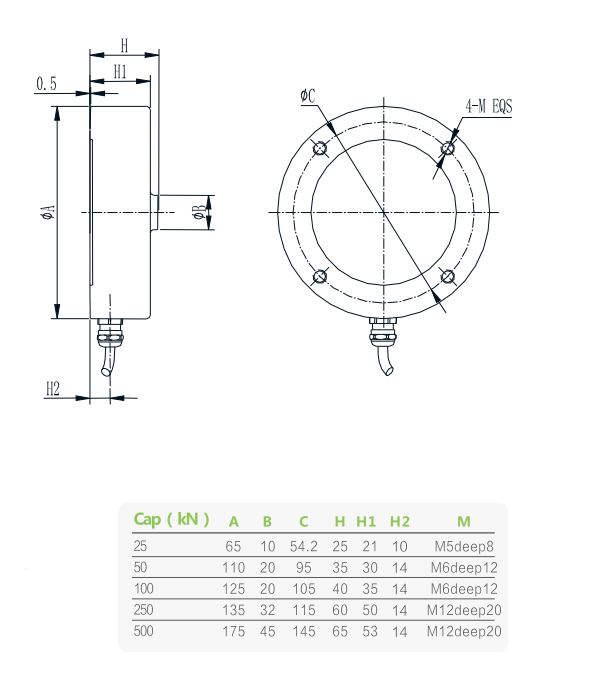

Specifications
| Specifications | Technique |
| Capacity | 25,50,100,250,500kN |
| Zero balance | ±0.05mV/V |
| Non-linearity | 0.50%F.S. |
| Hysteresis | 0.03%F.S. |
| Repeatability | 0.20%F.S. |
| Creep(30min) | 0.02%F.S. |
| Temp.effect on output | 0.03%F.S./10℃ |
| Temp.effect on zero | 0.03%F.S./10℃ |
| Input impedance | 385/780±20Ω |
| Output impedance | 350/700Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 15V |
| Compensated temp range | -10-60℃ |
| Operating temperature range | -20-80℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 200%F.S. |
| lP class | IP68 |
| Cable size |
φ5×5m(25~100kN) φ5×10m(250-500kN) |
| Material | Stainless Steel |
