Compression Button Load Cell T118
Made of stainless steel,High temperature could be customized
Product Description

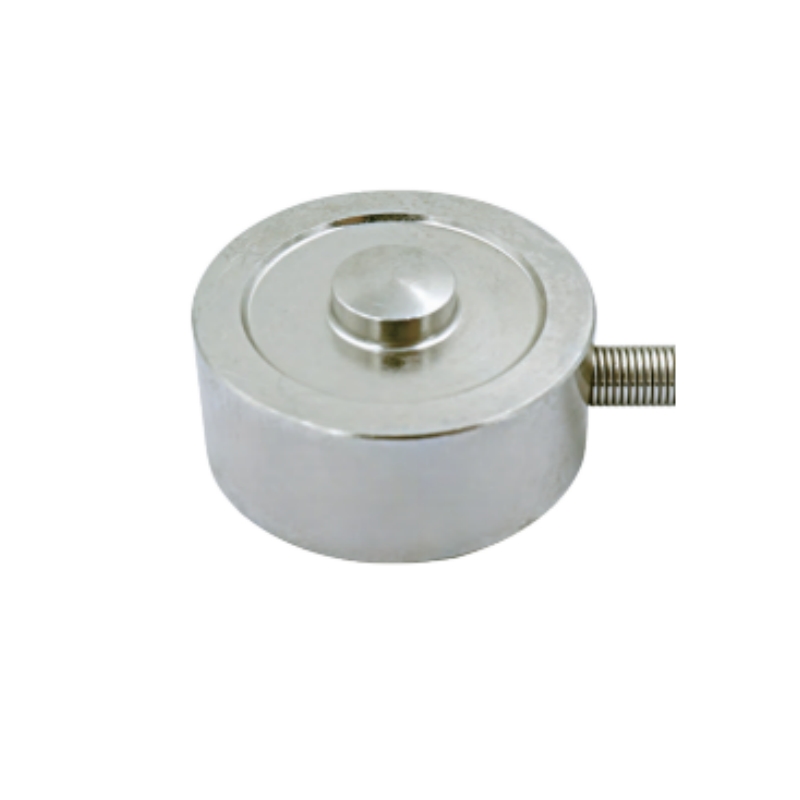

Compression Button Load Cell
Features & Applications
Low profile,small deflection and mini dimension
Made of stainless steel,High temperature could be customized
IP67protection,customizable
Suitablefor Automotive press fit,automated assembly,3C products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and control system
High dynamic response frequency
Specifications
| Specifications | Technique |
| Capacity | 0.5,1,2,5,10,20kN |
| Sensitivity | 1.0±20%mV/V |
| Zero balance | ±0.05mV/V |
| Non-linearity | 0.20%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(300min) | 0.1%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 780±20Ω |
| Output impedance | 780±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -20~80℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | φ3×4000mm |
| Material | Stainless Steel |
| lP class | IP67 |

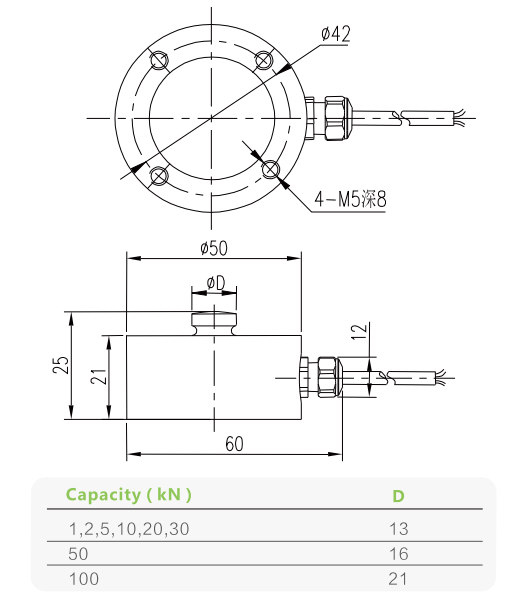

Mounting Dimension
Load Direction
Wiring Code
