Custom pin load cell T905

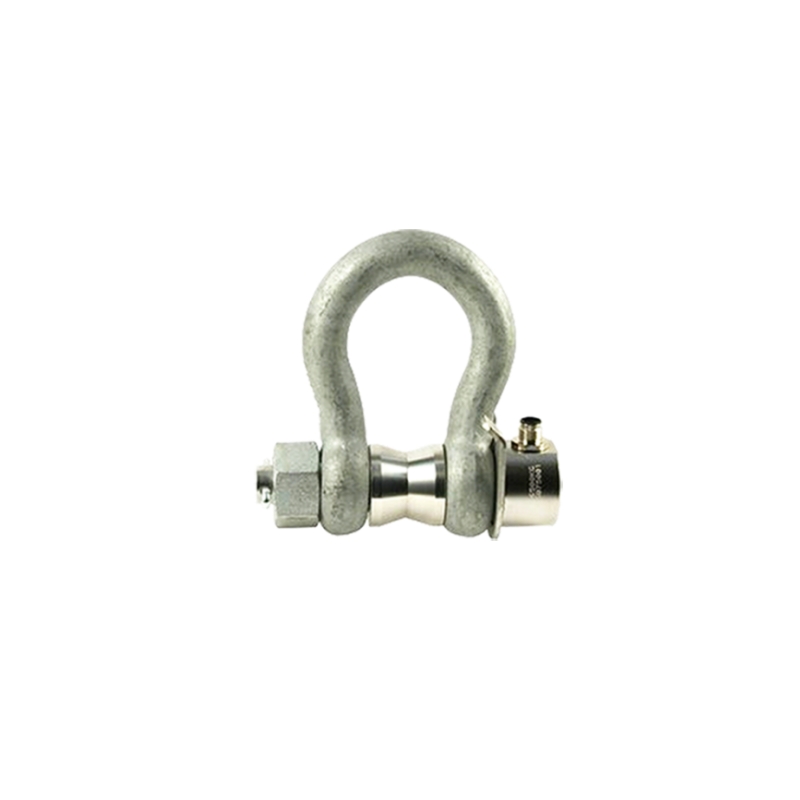

Pin sensor which used together with shackle
Stainless steel oralloy steel material
Small size,easy operation and installation
Patented products,counterfeiting must be investigated
Product Description
Features & Applications
Pin sensor which used together with shackle
Stainless steel oralloy steel material
Small size,easy operation and installation
Patented products,counterfeiting must be investigated
Specifications
| Specifications | Technique |
| Capacity | 6.5,12,25,55t |
| Sensitvity | 1.0-1.5mV/V |
| Zero balance | ±0.03 mV/V |
| Non-linearity | 1%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(300min) | 0.1%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10-60℃ |
| Operating temperature range | -20~80℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | Φ4×4000mm |
| lP class | IP67 |

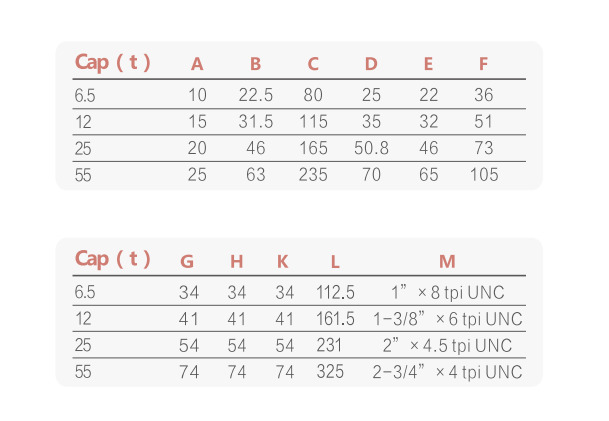

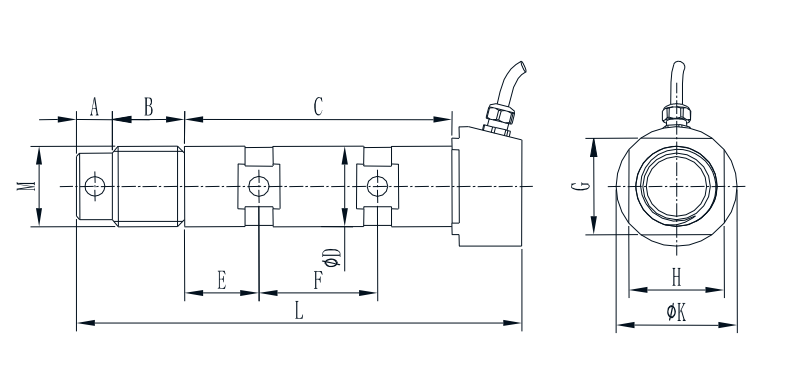

Mounting Dimension

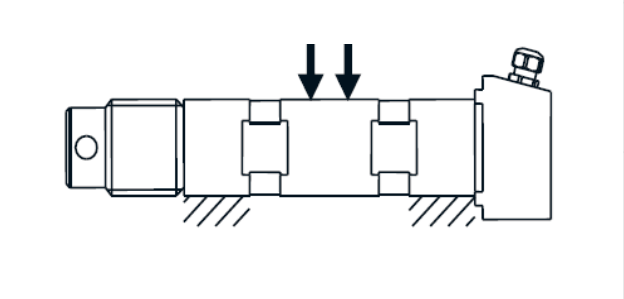

Load Direction
Wiring Code
FAQ
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
What is your MOQ?
The MOQ is usually 5 to 10 pieces
Are you a trading company or a manufacturer?
Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
How long is your delivery time?
4-6 weeks, depending on the situation
What is your terms of payment?
T / T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
What is your sample policy?
We can supply the sample if we have ready parts in stock.
