Product Description

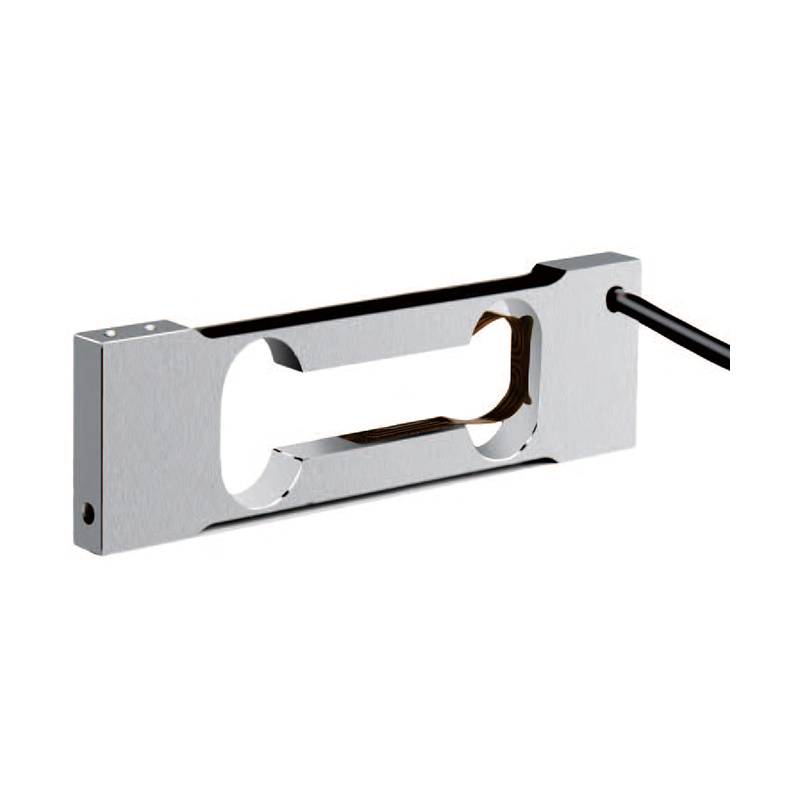

Single Point Load Cell
Features & Applications
Made of aluminum alloy.
High accuracy,high side load tolerance
Easy to install,IP65 protection
Mainly used for electronicscales,electronic balance,price computing scales and industrial weighing systems
Specifications
| Specifications | Technique |
| Capacity | 200,300,600g;1,1.5,3 |
| Accuracy class | C3 |
| Sensitivity | 0.8~1.0mV/V |
| Zero balance | ±0.05 mV/V |
| Non-linearity | 0.015%F.S. |
| Hysteresis | 0.015%F.S. |
| Repeatability | 0.015%F.S. |
| Creep(300min) | 0.0166%F.S. |
| Temp.effect on output | 0.02%F.S/10℃ |
| Temp.effect on zero | 0.03%F.S/10℃ |
| Input impedance | 405±5Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-15V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10-40℃ |
| Operating temperature range | -10-50℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 300%F.S. |
| Cable size | Φ4×350m |
| Weight approx. | 0.1kg |
| lP class | IP65 |
| Max.platfom size | 100mm×100mm |

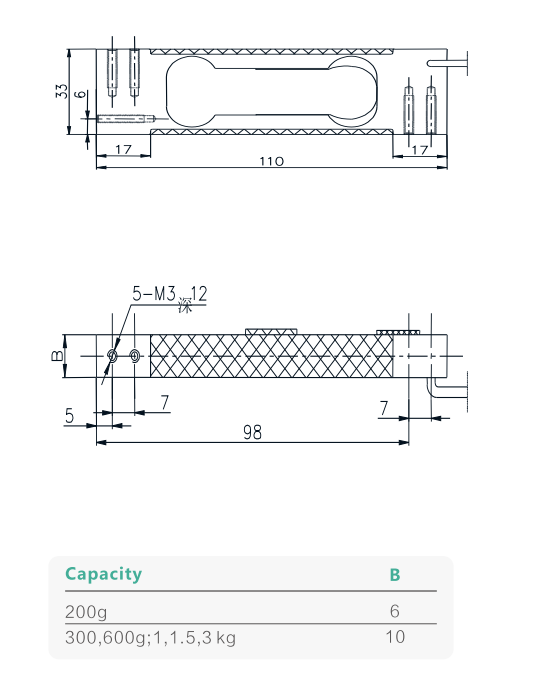

Mounting Dimension

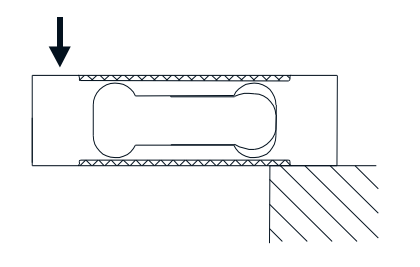

Load Direction

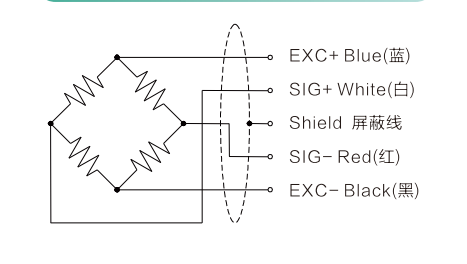

Wiring Code
