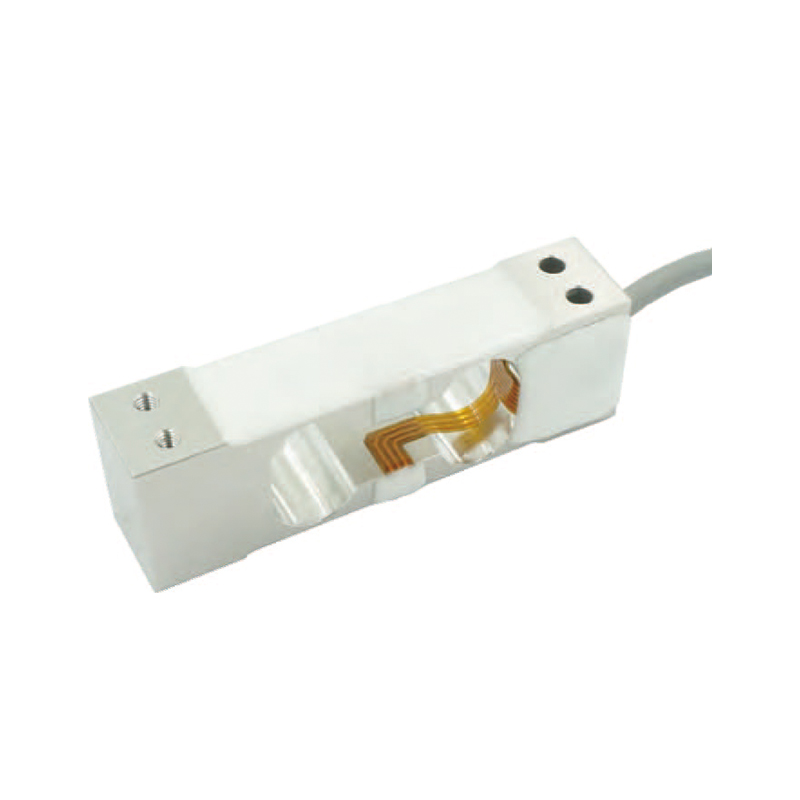

Single Point Load Cell T707
Mainly used for electronic scales,electronic balance,price computing scales and industrial weighing systems
Product Description
Load Cell
Features & Applications
Made of aluminum alloy.
High accuracy,high side load tolerance
Easy to install,IP67 protection
Mainly used for electronic scales,electronic balance,price computing scales and industrial weighing systems
Specifications
| Specifications | Technique |
| Capacity | 300g,500g,1,2,3,5kg |
| Accuracy class | C3 |
| Sensitivity |
1.0±10%mV/V(300g,500g) 2.0±10%mV/V(1~5kg) |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.015%F.S. |
| Hysteresis | 0.015%F.S. |
| Repeatability | 0.015%F.S. |
| Creep(300min) | 0.0166%F.S. |
| Temp.effect on output | 0.017%F.S./10℃ |
| Temp.effect on zero | 0.02%F.S./10℃ |
| Input impedance | 380±20Ω |
| Output impedance | 380±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~40℃ |
| Operating temperature range | -25-70℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 300%F.S. |
| Cable size | Φ4×4000mm |
| Weight approx. | 0.1kg |
| Material | aluminum alloy |
| lP class | IP65 |
| Maximum mesa size | 200mm×200mm |
| Tightening torque | 30N.m 160N.m |

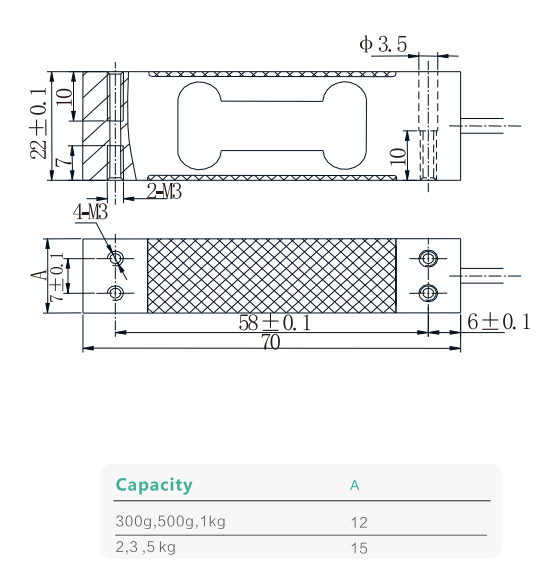

Mounting Dimension

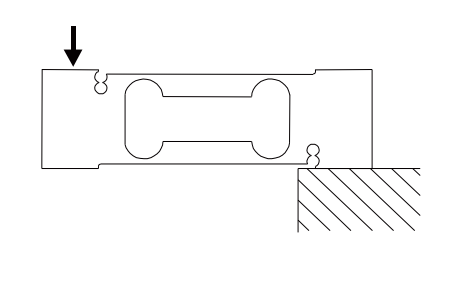

Load Direction

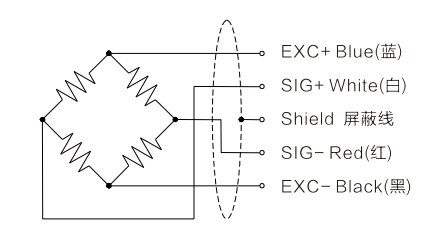

Wiring Code
FAQ
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
What is your MOQ?
The MOQ is usually 5 to 10 pieces
Are you a trading company or a manufacturer?
Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
