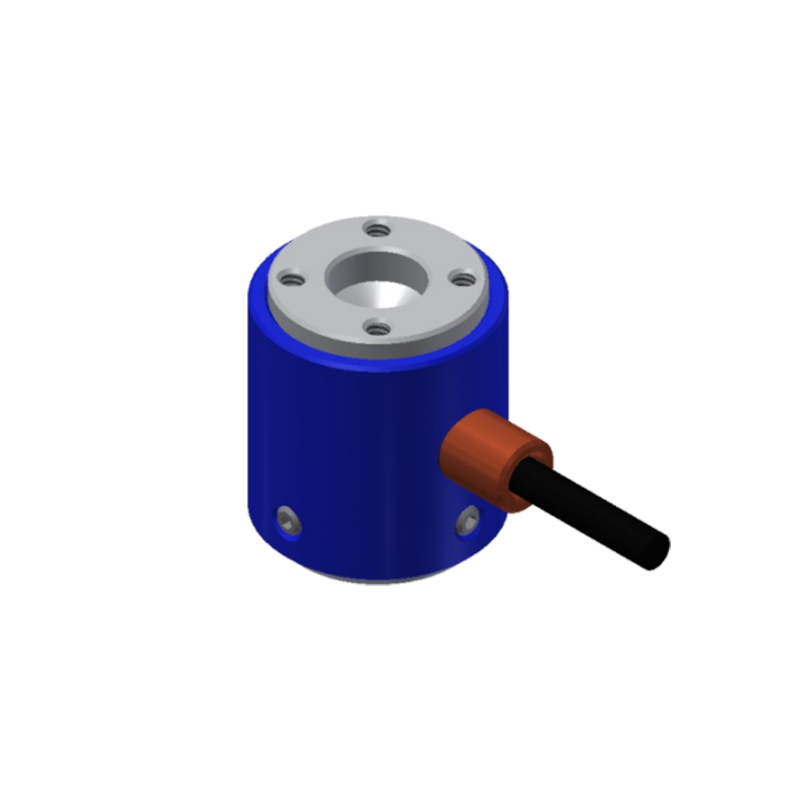

Static Torque Sensor T903F
Static torque sensor for torque measurement in static, discontinuous rotation
Product Description
Static Torque Sensor
Specifications
| Specifications | Technique |
| Nomial load | 1N.m,10N.m |
| Rated output | 1.0~1.5mV/V |
| Zero balance | ±3%mV/V |
| Non-linearity | 0.3~0.5%F.S. |
| Hysteresis | 0.3~0.5%F.S. |
| Repeatability | 0.2~0.5%FS. |
| Creep(30min) | 0.2~0.5%FS. |
| Temp.effect on sensitvty | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 1100±20Ω |
| Output impedance | 1000±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | -10~40℃ |
| Operating temperature range | -20-90℃ |
| Safe load limit | 150%FS. |
| Breaking load | 200%FS. |
| lP class | IP65 |

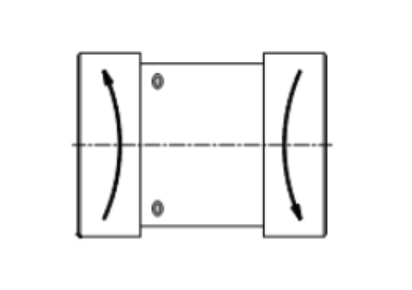

Load Direction

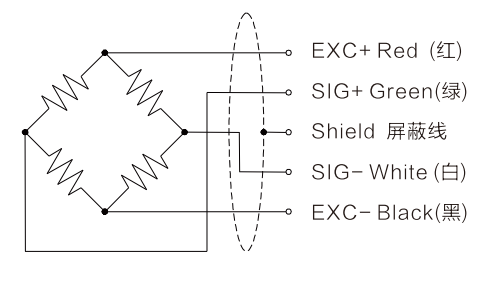

Wiring Code
