Bending Beam Load Cell F223
Suitable for Automotive press fit,automated assembly 3C products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and control system
Product Description

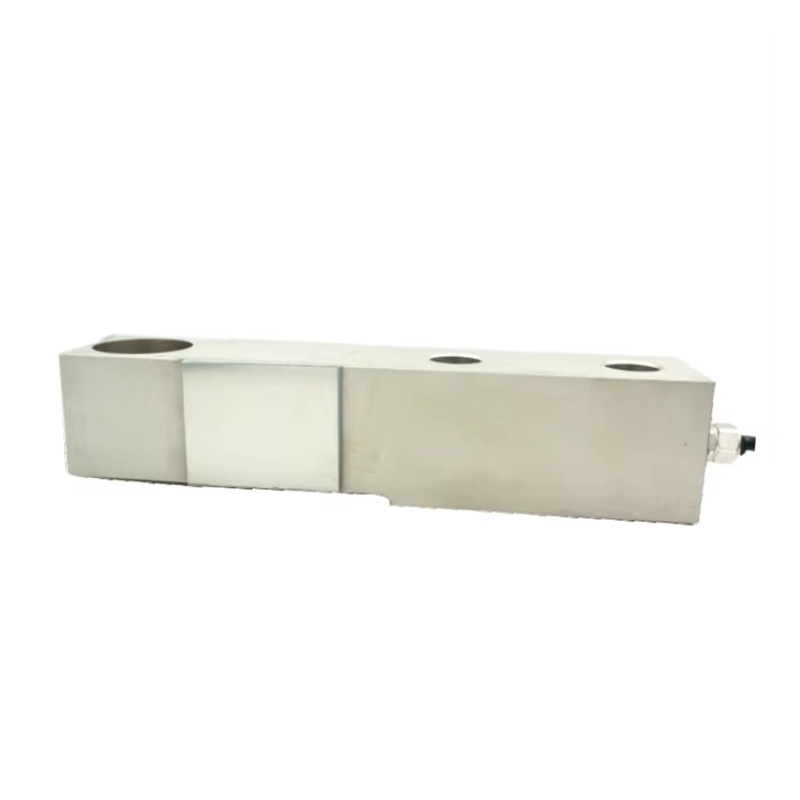

Bending Beam Load Cell
Specifications
| Specifications | Technique |
| Capacity | 5,10,15t |
| Rated output | 2.0±0.002mV/V |
| Zero balance | ±0.05mV/V |
| Non-linearity | 0.02%F.S. |
| Hysteresis | 0.02%F.S. |
| Repeatability | 0.01%F.S. |
| Creep(30min) | 0.02%F.S. |
| Temp.effect on output | 0.002%F.S./10℃ |
| Temp.effect on zero | 0.002%F.S./10℃ |
| Nput impedance | 380±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 15V |
| Compensated temp range | -10~40℃ |
| Operating temperature range | -20~65℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 200%F.S. |
| lP class | IP66 |
| Cable size | 5t,6m;10/15t,9.5m |
FAQ
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
What is your MOQ?
The MOQ is usually 5 to 10 pieces
