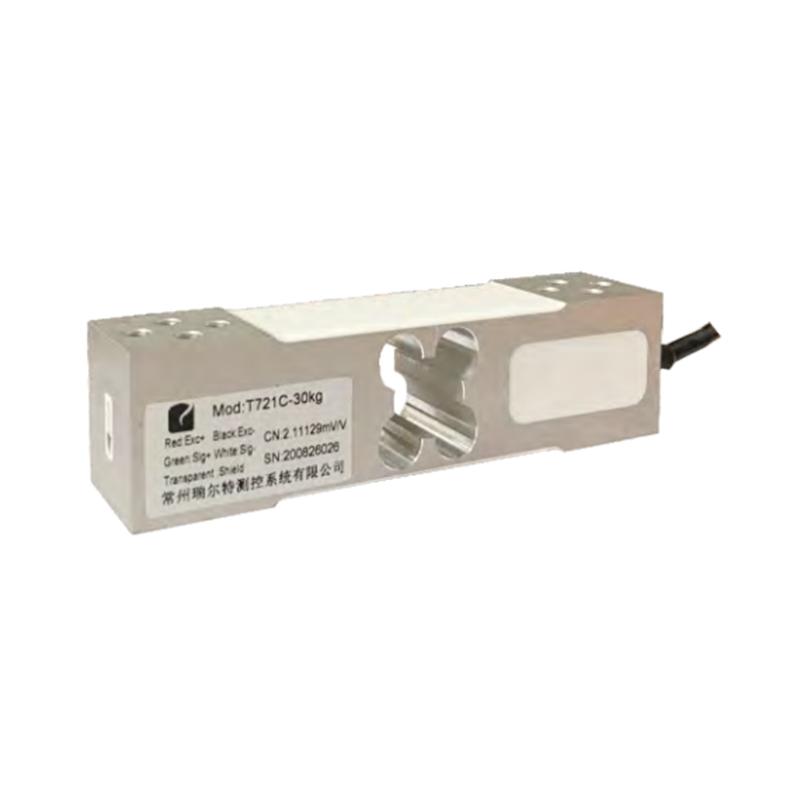

Bending Beam Load Cell T721C
Made of aluminum alloy
High accuracy,Strong ability of anti-side force
Product Description
Bending Beam Load Cell
Features & Applications
Made of aluminum alloy
High accuracy,Strong ability of anti-side force
Easy to instal,IP65 protection
Mainly used for electronic scales,electronic balance,price computing scales and industrial weighing systems
Specifications
| Specifications | Technique |
| Capacity | 30,50kg |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±3%mV/V |
| Non-linearity | 0.02%F.S. |
| Hysteresis | 0.02%F.S. |
| Repeatability | 0.20%F.S. |
| Creep(30min) | 0.10%F.S |
| Temp.effect on output | 0.0175%F.S./10℃ |
| Temp.effect on zero | 0.02%F.S./10℃ |
| Nput impedance | 400±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | -10-40℃ |
| Operating temperature range | -35~65℃ |
| Safe load limit | 120%F.S. |
| Ultimate overload | 200%F.S. |
| lP class | IP65(Customizable IP67) |
| Cable size | φ5.3-2m |

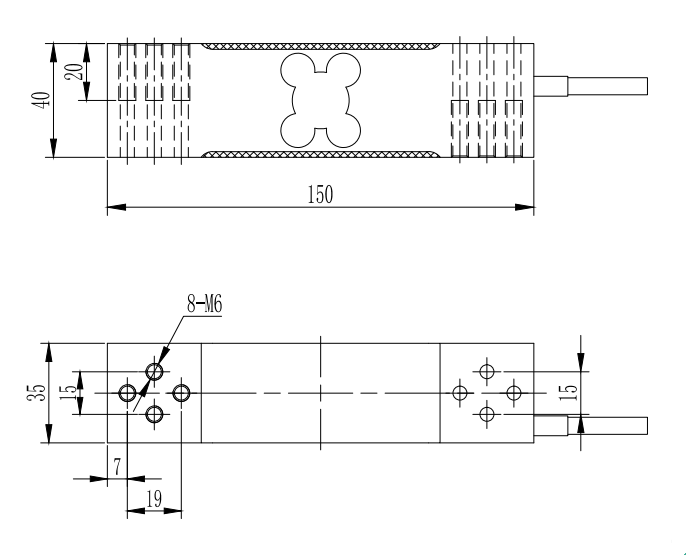

Mounting Dimension

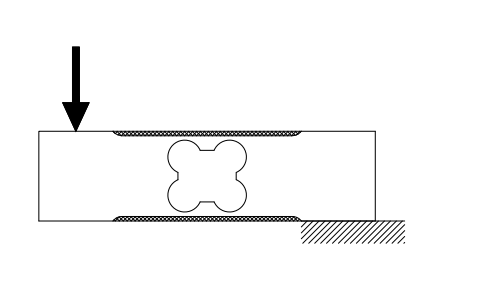

Load Direction
Wiring Code
