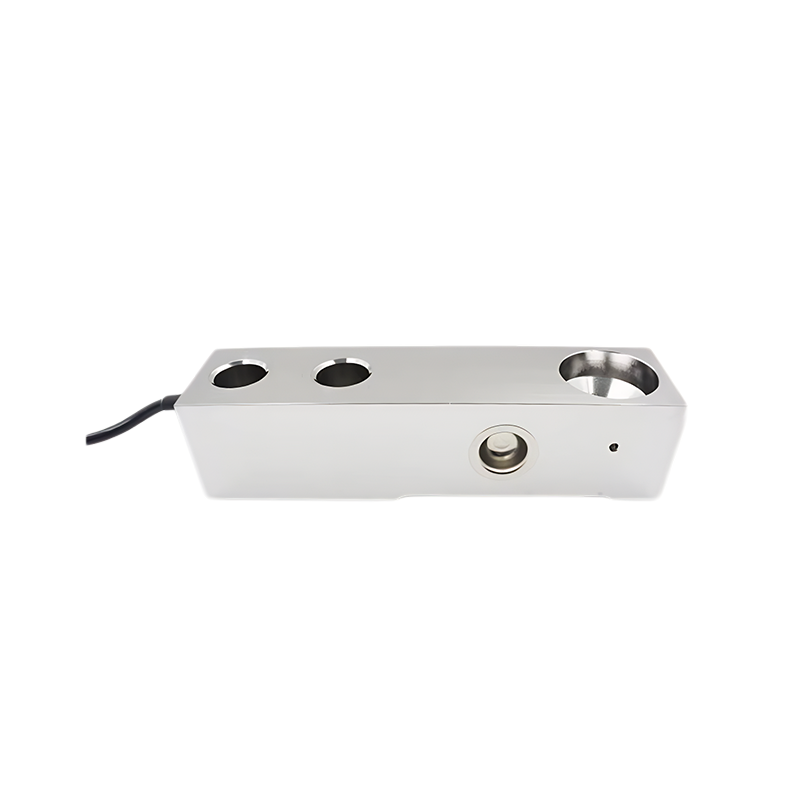

Bending Beam Load Cell T702
Made of Stainless Steel, high stability
Used in various automated stamping applications, IP68 protection
Mainly used for packing scales, hopper scales and industrial measuring system
Product Description
Bending Beam Load Cell
Features & Applications
Made of Stainless Steel, high stability
Used in various automated stamping applications, IP68 protection
Mainly used for packing scales, hopper scales and industrial measuring system
Specifications
| Specifications | Technique |
| Capacity |
0.11, 0.22, 0.55, 1.1, 1.76, 2.2, 3.4, 4t |
| Accuracy class |
C3 |
| Sensitivity | 1.94±0.1%mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.017%F.S. |
| Hysteresis | 0.017%F.S. |
| Repeatability | 0.017%F.S. |
| Creep(300min) | 0.0166%F.S. |
| Temp.effect on output | 0.014%F.S./10℃ |
| Temp.effect on zero | 0.0125%F.S./10℃ |
| Input impedance | 390±3Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-15V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~40℃ |
| Operating temperature range | -30~70℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 300%F.S. |
| Cable size | Φ5.4×3000mm |
| Weight approx. |
0.9kg(0.55-1.76t) 1.6kg(2.2t)2.2kg(4.4t) |
| Material |
Stainless Steel |
| lP class | IP68 |

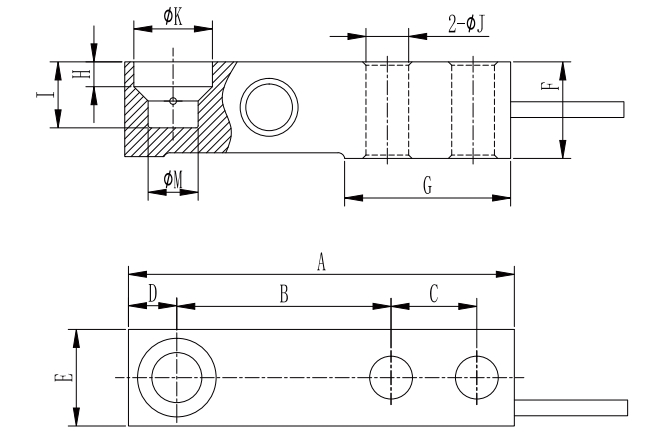

Mounting Dimension
| Cap(kN/N.m) | A | B | C | D | E | F | G | H | I | J | K | M |
| 0.11~1.76 | 133.4 | 76.2 | 25.4 | 15.4 | 30.7 | 30.2 | 57.7 | 4.8 | 17.3 | 13 | 22.2 | 15.9 |
| 2.2 | 136.7 | 76.2 | 25.4 | 18.4 | 36.8 | 36.6 | 57.9 | 9.5 | 22.9 | 13 | 22.2 | 15.9 |
| 3 | 139.7 | 79.2 | 25.4 | 18.4 | 39 | 36.6 | 57.9 | 9.5 | 23 | 15 | 22.2 | 15.9 |
| 4.4 | 171.5 | 95.3 | 38.1 | 21.4 | 42.9 | 42.9 | 73.9 | 10.8 | 29.3 | 19.3 | 34.9 | 22.2 |

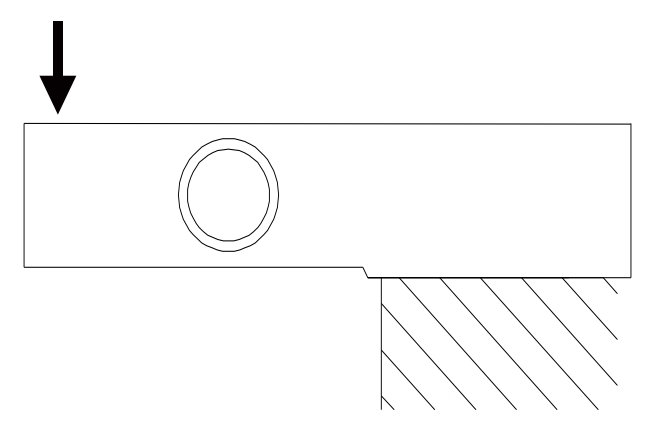

Load Direction
Wiring Code
