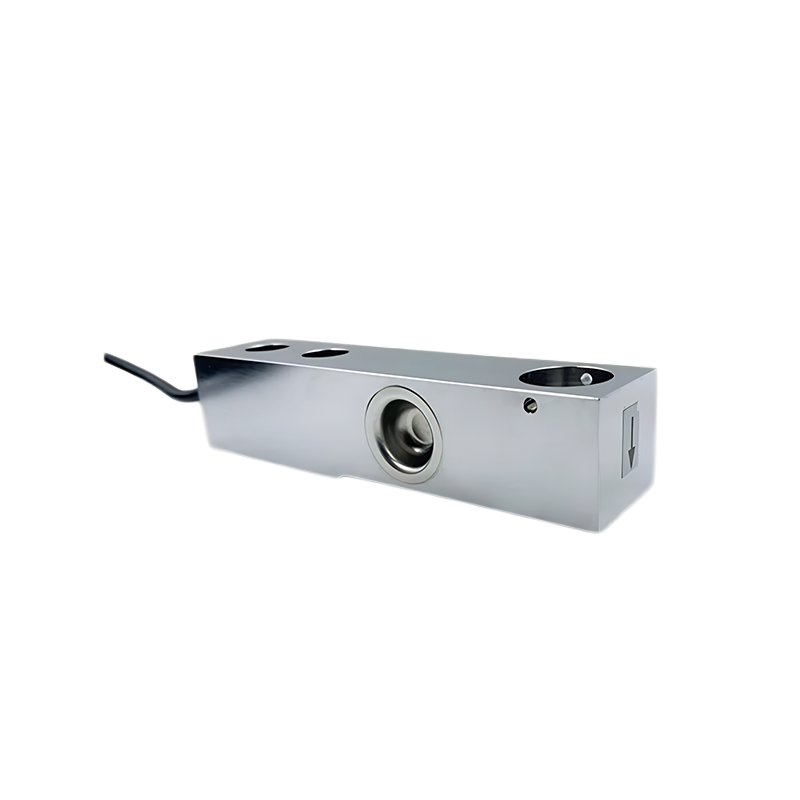

Bending beam load cell T702B
Made of Stainless Steel, Strong stability
Applicable to various environments, IP68 protection
Mainly used for packing scales, hopper scale and industrial weighing system
Product Description
Features & Applications
Made of Stainless Steel, Strong stability
Applicable to various environments, IP68 protection
Mainly used for packing scales, hopper scale and industrial weighing system
Specifications
| Specifications | Technique |
| Capacity |
0.11, 0.22, 0.55, 1.1, 1.76, 2.2, 3.4, 4t |
| Accuracy class |
C3 |
| Sensitivity | 1.94±0.1%mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.017%F.S |
| Hysteresis | 0.017%F.S |
| Repeatability | 0.017%F.S |
| Creep(300min) | 0.0166%F.S. |
| Temp.effect on output | 0.014%F.S./10℃ |
| Temp.effect on zero | 0.0125%F.S./10℃ |
| Input impedance | 390±3Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~40℃ |
| Operating temperature range | -30~70℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 300%F.S. |
| Cable size | Φ5.4×3000mm |
| Weight approx. |
0.9kg(0.55-1.76t) 1.6kg(2.2t)2.2kg(4.4t) |
| Material |
Stainless Steel |
| lP class | IP68 |

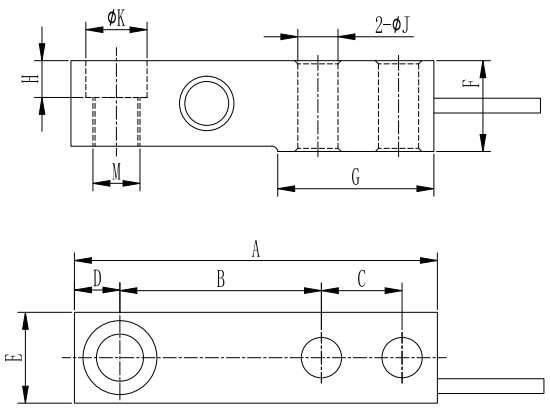

Mounting Dimension
| Cap(kN/N.m) | A | B | C | D | E | F | G | H | J | K | M |
| 0.11~1.76 | 133.4 | 76.2 | 25.4 | 15.4 | 30.7 | 30.2 | 57.7 | 14.2 | 13 | 20.6 | M12 |
| 2.2 | 136.6 | 76.2 | 25.4 | 18.4 | 36.8 | 36.6 | 55.6 | 16.6 | 13 | 12.5 | M12 |
| 3 | 139.7 | 79.2 | 25.4 | 18.4 | 39 | 36.6 | 57.9 | 16.6 | 15 | 12.5 | M12 |
| 4.4 | 171.5 | 95.2 | 38.1 | 21.5 | 42.9 | 42.9 | 73.8 | 20.9 | 19 | 22.2 | M20 |
