Column Compression Force Sensor R153E
Low profile,small deflection and mini dimension
Made of stainless steel,High temperature could be customized
Product Description

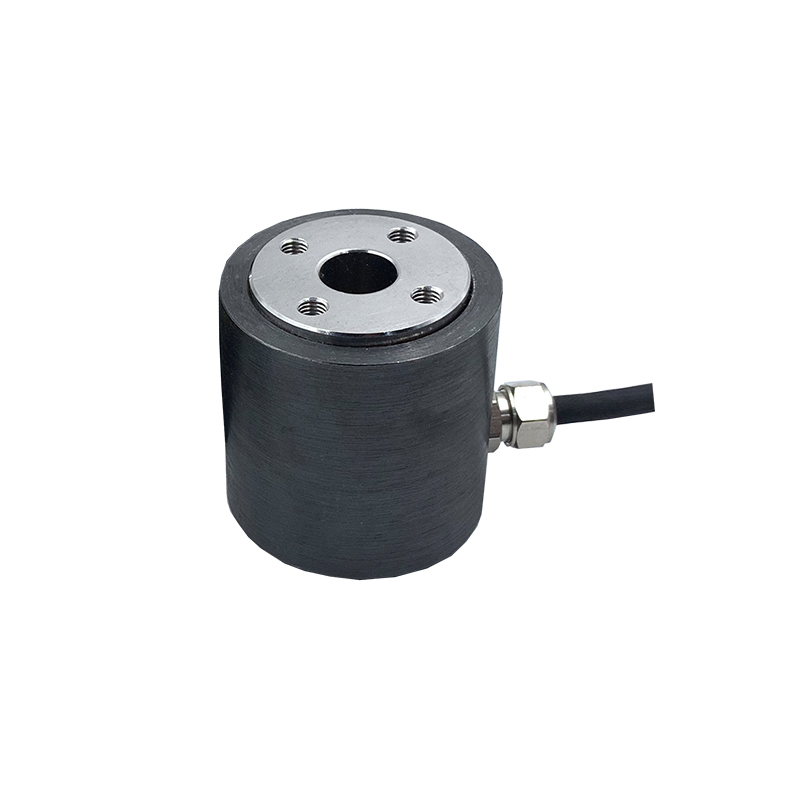

Column Compression Force Sensor
Features & Applications
Low profile,small deflection and mini dimension
Made of stainless steel,High temperature could be customized
IP67 protection,customizable
Suitable for Automotive press fit,automated assembly,3C products testing,new energy product assembly,medical testing,robotics,mold assembly nd other industrial testing and control system
High dynamic response frequency
Specifications
| Specifications | Technique |
| Nomial load | 10,20,30,50,100KN |
| Rated output | 1.3±20%mV/V |
| Zero balance | ±3%F.S. |
| Non-linearity | ±0.2%F.S. |
| Hysteresis | ±0.2%F.S. |
| Repeatability | ±0.2%F.S. |
| Creep(30min) | ±0.1%F.S |
| Temp.effect on output | 0.1%F.S./10℃ |
| Temp.effect on zero | 0.1%F.S./10℃ |
| Input impedance | 380±10Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 15V |
| Compensated temp range | 0-60℃ |
| Operating temperature range | -10~150℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 200%F.S. |
| lP class | IP67 |
| Cable size | φ5X5mm |

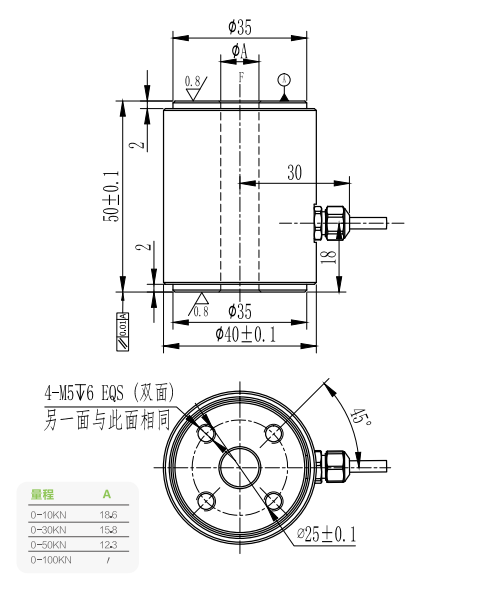

Mounting Dimension

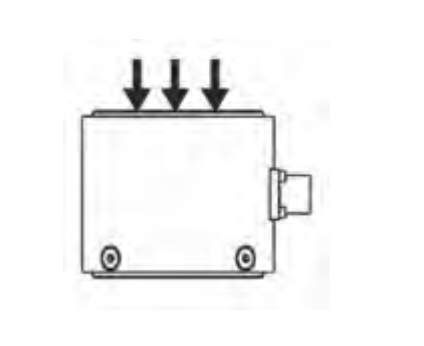

Load Direction

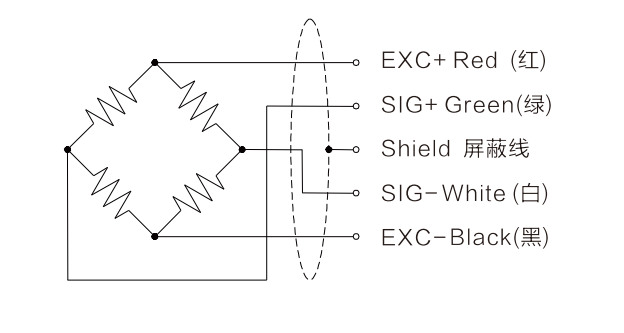

Wiring Code
