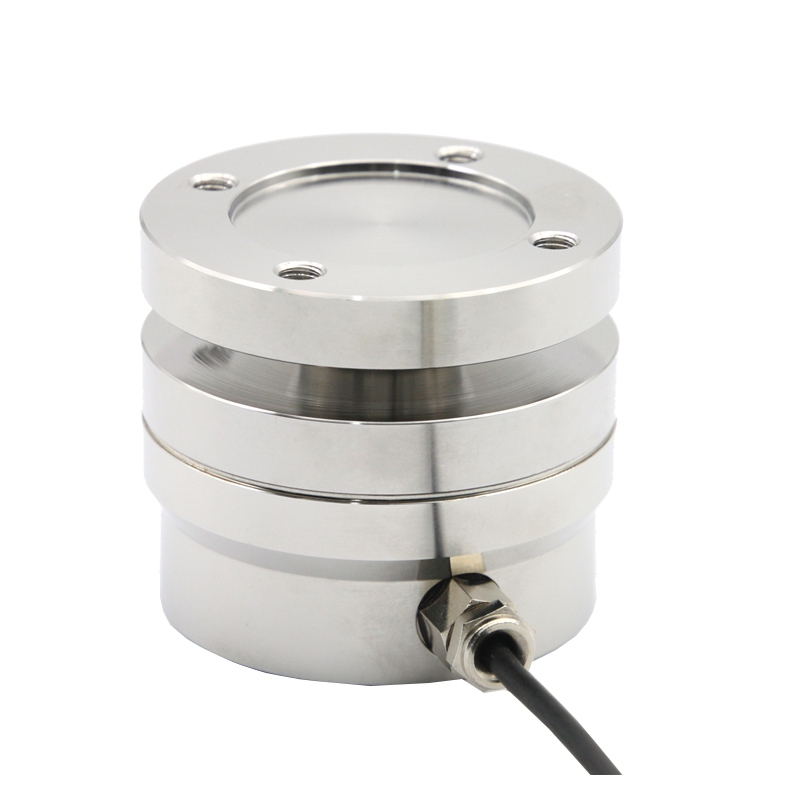

Column Compression Force Sensor T311B
Low profile,small deflection and mini dimension
Made of stainless steel,High temperature could be customized
Product Description
Column Compression Force Sensor
Features & Applications
Low profile,small deflection and mini dimension
Made of stainless steel,High temperature could be customized
IP67 protection,customizable
Suitable for Automotive press fit,automated assembly,3Cproducts testing,new energy product assembly,medical testing,robotics,mold assembly nd other industrial testing and control system
High dynamic response frequency
Specifications
| Specifications | Technique |
| Nomial load | 0.5,1,2,5,10,20,50kN |
| Rated output | 1.0±20%om |
| Zero balance | ±0.03mV/V |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.05%F.S. |
| Creep(30min) | 0.1%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Nput impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 10V |
| Compensated temp range | -10-40℃ |
| Operating temperature range | -20-60℃ |
| Safe load limit | 120%F.S. |
| Ultimate overload | 200%F.S. |
| Protection class | IP67 |
| Cable size | φ3-4m |
| Material | Stainless Steel |

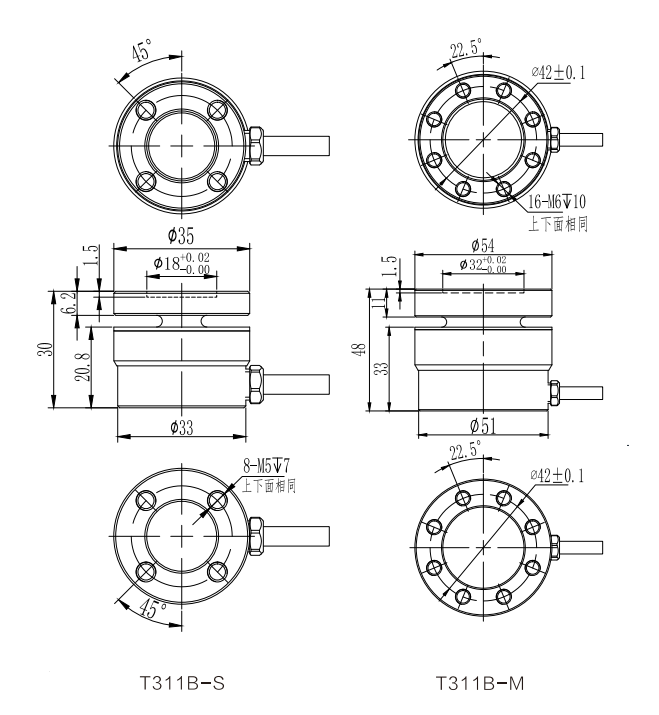

Mounting Dimension

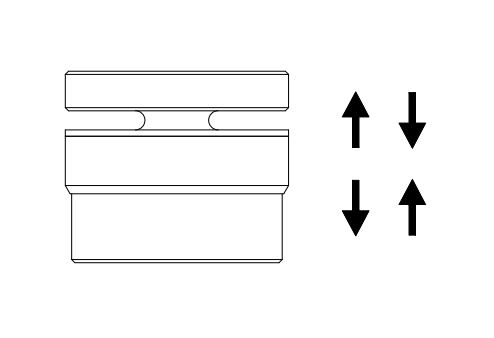

Load Direction
Wiring Code
FAQ
What is your MOQ?
The MOQ is usually 5 to 10 pieces
Are you a trading company or a manufacturer?
Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
