Column Compression Force Sensor T114
Suitable for Automotive press fit,automated assembly,3C products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and control system
Product Description

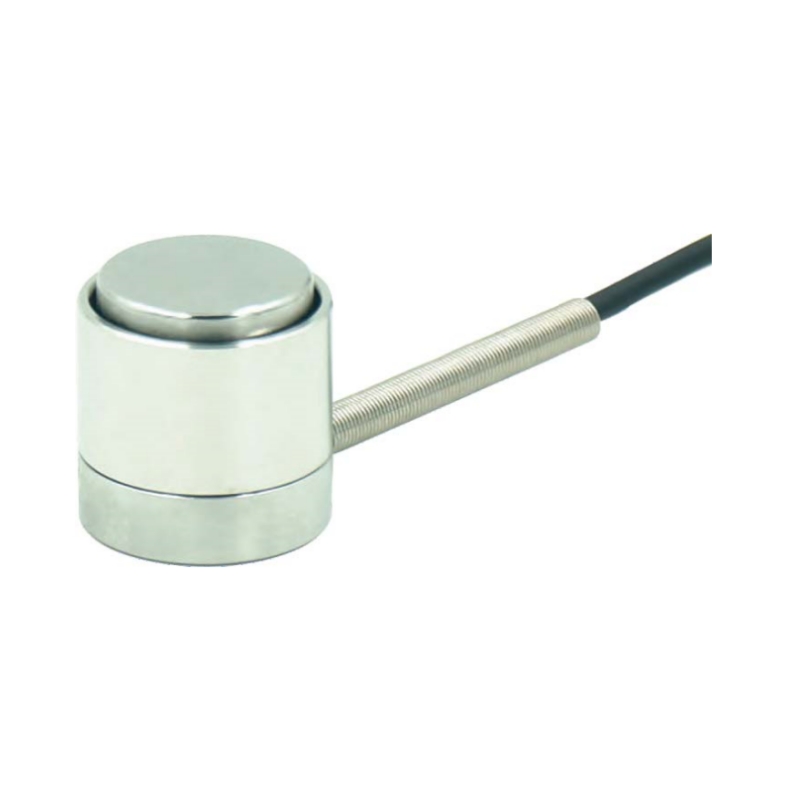

Column Compression Force Sensor
Features & Applications
Low profile,small deflection and mini dimension and big capacity
Made of stainless steel
IP65 protection,customizable
Suitable for Automotive press fit,automated assembly,3C products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and control system
High dynamic response frequency
Specifications
| Specifications | Technique |
| Capacity | 10,20,50,75,100,150kN |
| Sensitivity | 1.5±20%mV/V |
| Zero balance | ±0.05 mV/V |
| Non-linearity | 0.50%F.S |
| Hysteresis | 0.20%F.S. |
| Repeatability | 0.20%F.S. |
| Creep(300min) | 0.02%F.S |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 380±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -20~80℃ |
| Safe load limit | 200%F.S |
| Breaking load | 300%F.S. |
| Cable size | φ2/φ3×4000mm |
| Material | Stainless Steel /Alloy Steel |
| Weight approx. | 0.1kg |
| Material | Stainless Steel |
| lP class | IP65 |
| Model | Load Deflection | Natural Frequency | Weight |
| T114-10kN | 0.08mm | 7kHZ | 18g |
| T114-20kN | 0.08mm | 11kHZ | 18g |
| T114-50kN | 0.08mm | 14kHZ | 18g |
| T114-75kN | 0.08mm | 14kHZ | 18g |
| T114-100kN | 0.08mm | 20kHZ | 18g |
| T114-150kN | 0.08mm | 21kHZ | 18g |
| Cap(kN) | A | B | C | D |
| 10、20 | 15.9 | 13.4 | 16.5 | 50 |
| 50、75 | 22.4 | 20.4 | 22.4 | 100 |
| 100、150 | 31.8 | 28.9 | 28.7 | 127 |

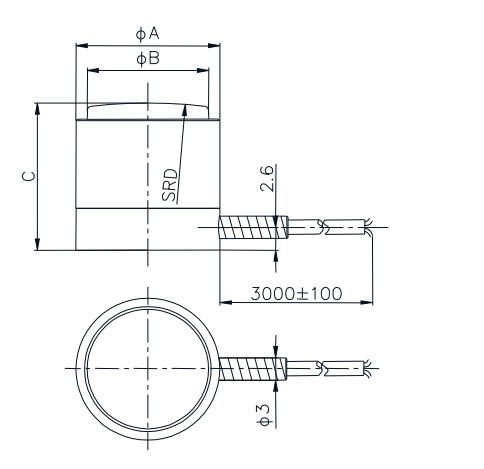

Mounting Dimension
Load Direction

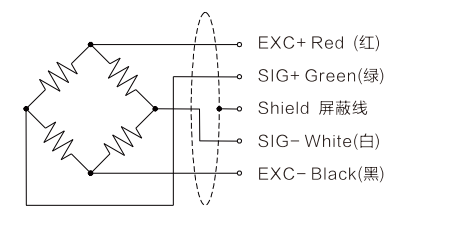

Wiring Code
FAQ
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
What is your MOQ?
The MOQ is usually 5 to 10 pieces
Are you a trading company or a manufacturer?
Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
