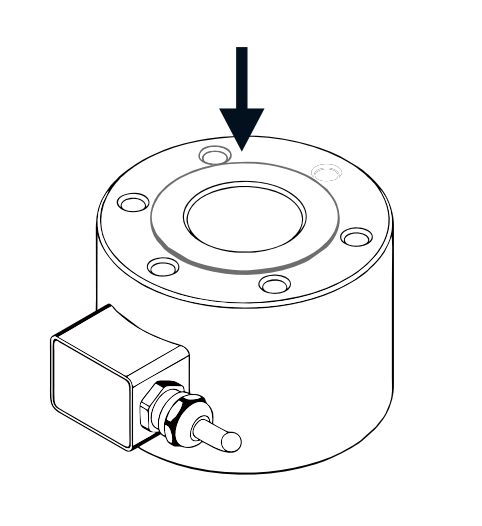

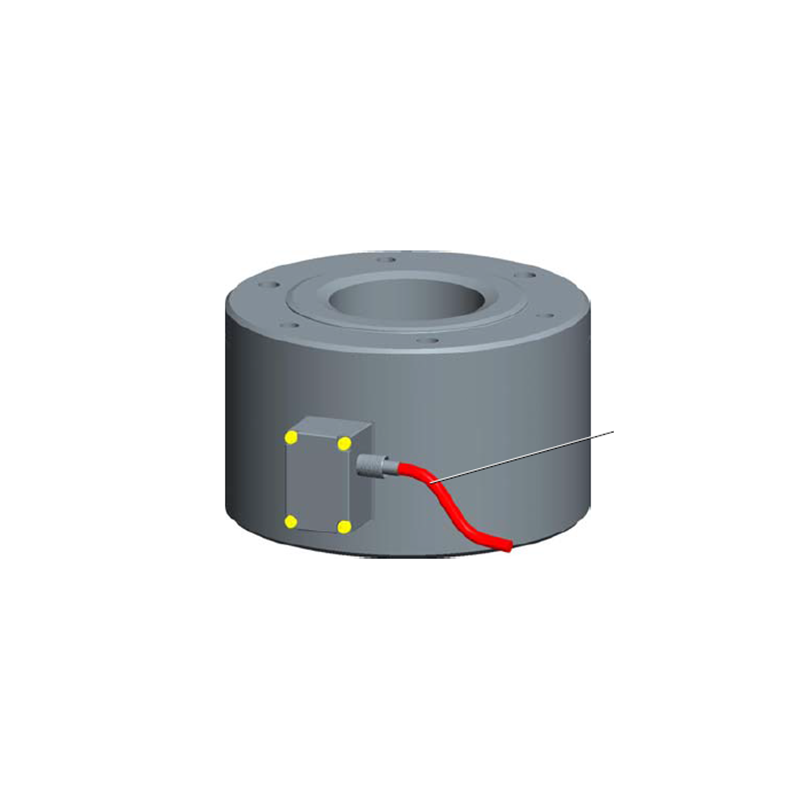

Column Compression Force Sensor R208F-M
Pressure sensor, impact resistance, good stability, fast response, strong overload ability, used for precision arm control, curved surface grinding and polishing, precision carving processing in machining centers, and precision testing of medical equipment.
Product Description
Specifications
| Specifications | Technique |

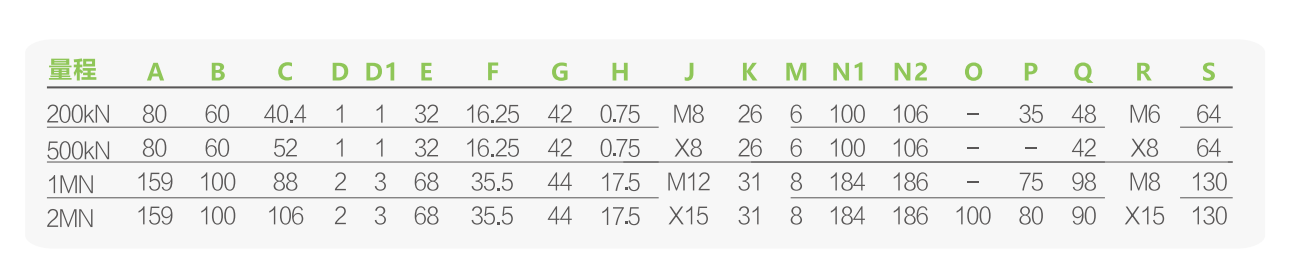

| Nominal(rated)torque Mnom | see form |
| Nominal(rated)sensitivity | 2.0±10%mV/V |
| Zero balance | ±0.05mV/V |
| Non-linearity | 0.5%F.S. |
| Hysteresis | 0.5%F.S. |
| Repeatability | 0.5%F.S. |
| Creep(30min) | 0.5%F.S. |
| Temp.effect on sensitvty | 0.05%F.S/10℃ |
| Temp.effect on zero | 0.05%F.S/10℃ |
| Nput impedance | 380±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥2000MΩ/50VDC |
| Recommended excitation | 5-12V |
| Maximum excitation | 15V |
| Compensated temp range | -10-40℃ |
| Operating temperature range | -20-60℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 200%F.S. |
| lP class | IP67 |
| Cable size | φ6-4000mm |
