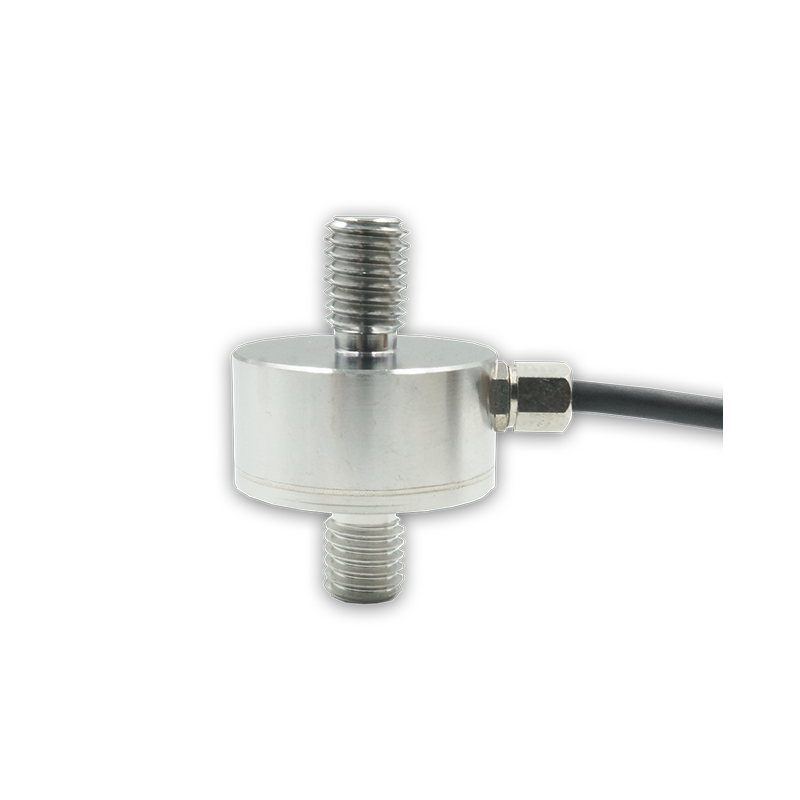

Column Tension And Compression Load Cell T303

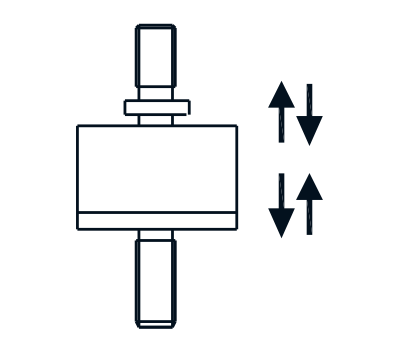

The T303 is a tension-compression direction sensor specifically built for durability, pressing or inline applications. The standard T303 tension and compression sensor uses 17-4 stainless steel and has a very strong construction. Threaded on both ends and a 10-foot-long 4-conductor cable. Support matching external output or Teflon cable. Hold customized to meet your requirements, and most are in stock.
Product Description
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 2,5,10,20,30,50,100kg |
| Nominal(rated)sensitivity | 2.0±10%mV/V |
| Zero balance | ±0.05mV/V |
| Non-linearity | 0.5%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.2%F.S. |
| Creep(30min) | 0.1%F.S. |
| Temp.effect on sensitvty | 0.1%F.S./10℃ |
| Temp.effect on zero | 0.1%F.S./10℃ |
| Nput impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥2000MΩ/50VDC |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | -10-40℃ |
| Operating temperature range | -20-60℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 200%F.S. |
| lP class | IP66 |
| Cable size | ф3-4m |
