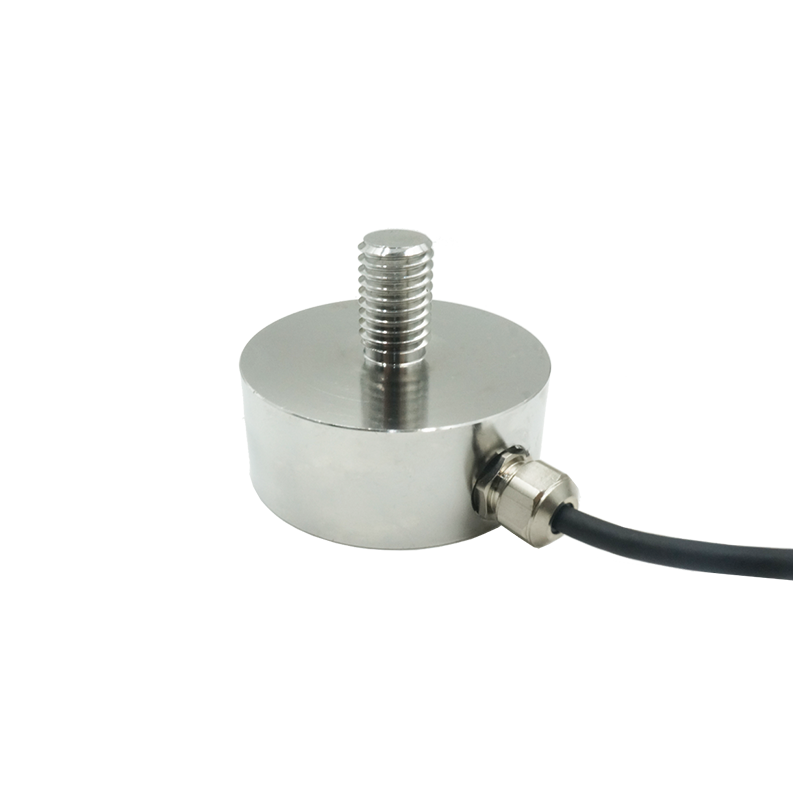

Column Tension And Compression Load Cell T306

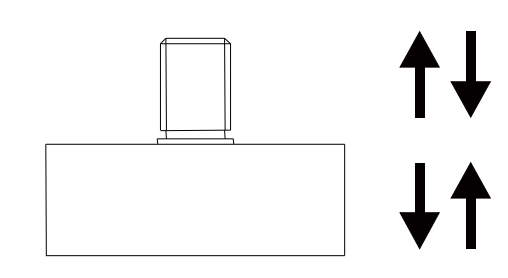

The T306 is used to measure tensile and compressive forces with a maximum range of 50kN. Due to its high dynamic response frequency, the sensor can provide rapid measurements in a variety of applications requiring tensile and compression force measurements.
Product Description
Column Tension And Compression Load Cell
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 1,2,5,10,20,50,100kN |
| Nominal(rated)sensitivity | 1.5±20%mV/V |
| Zero balance | ±0.03mV/V |
| Non-linearity | 0.20%F.S. |
| Hysteresis | 0.10%F.S. |
| Repeatability | 0.10%F.S. |
| Creep(30min) | 0.05%F.S. |
| Temp.effect on sensitvty | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Nput impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated temp range | -10-60℃ |
| Operating temperature range | -20-80℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 200%F.S. |
| lP class | IP67(customizable IP68) |
| Cable size | φ4×4000mm |
| Material | Stainless Steel |
| Weight approx | 0.3kg |
