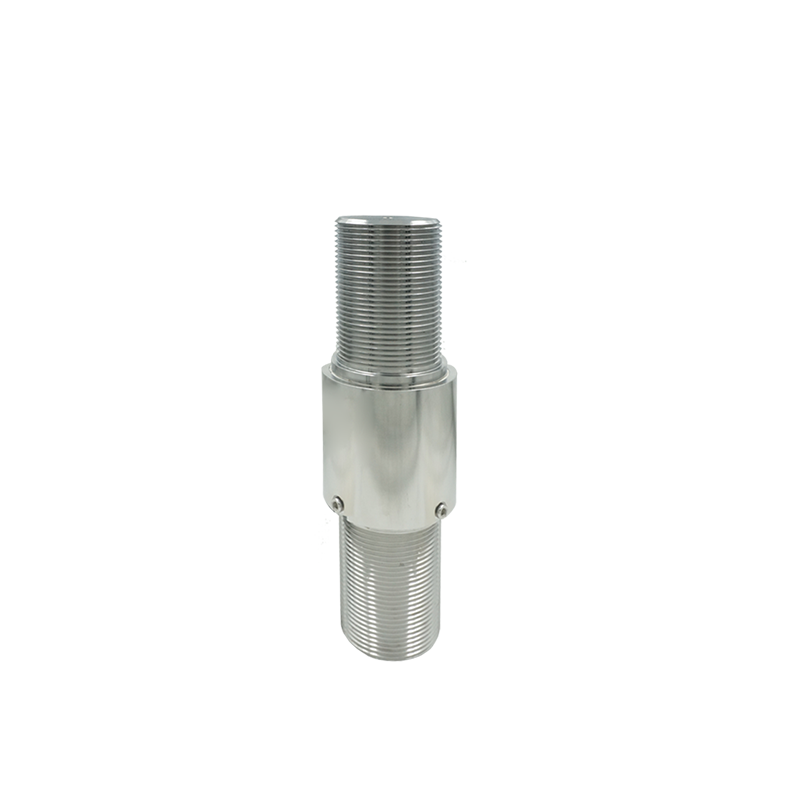

Column Tension And Compression Load Cell T326

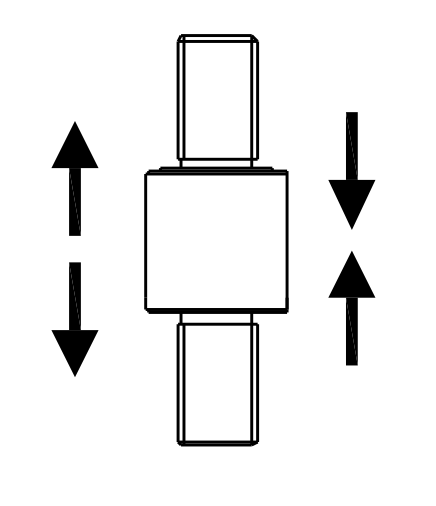

The T326 micro sensor is used to measure tensile and compressive forces. With its compact design, the product is ideal for a variety of applications where space is limited. This product has a range of 10-2000KN and is mainly used in automation, robotic and medical equipment, as well as various control and measurement systems. Due to its high dynamic response frequency, this sensor is suitable for rapid measurements.
Product Description
Column Tension And Compression Load Cell

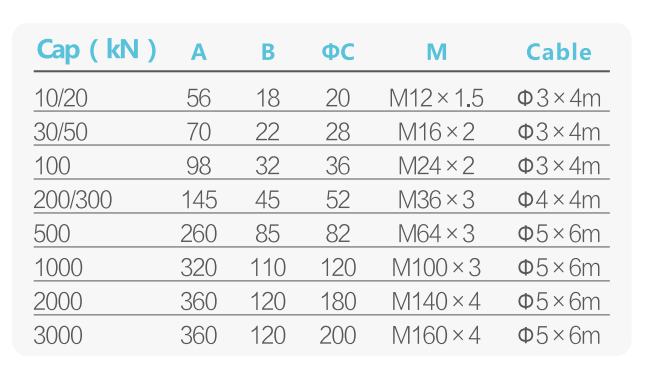

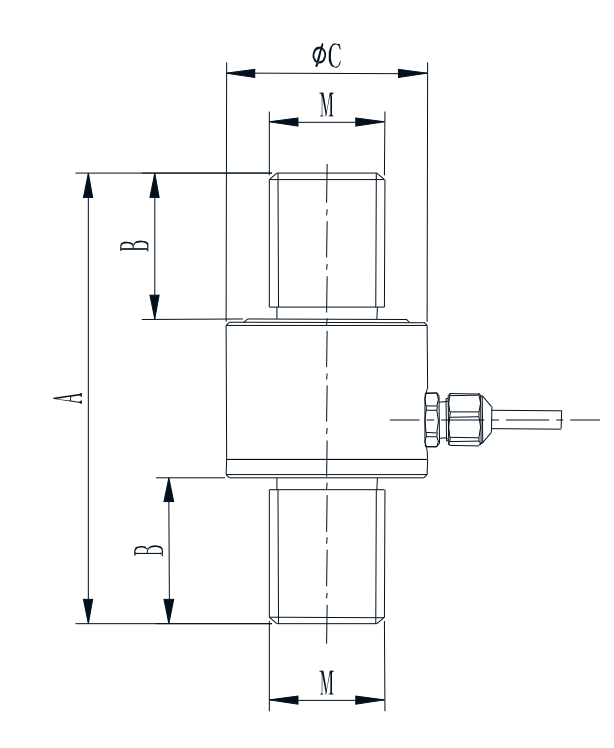

Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 10,20,30,50,100,200,300 500,1000,2000kN |
| Nominal(rated)sensitivity | 1.5±20%mV/V |
| Zero balance | 0.05mV/V |
| Non-linearity | 0.1%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.05%F.S. |
| Creep(30min) | 0.05%F.S. |
| Temp.effect on sensitvty | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Nput impedance | 780±20/385±20Ω |
| Output impedance | 700±10/350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-15V |
| Maximum excitation | 15V |
| Compensated temp range | -10-40℃ |
| Operating temperature range | -20-70℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 200%F.S. |
| lP class | IP66 |
| Material | Alloy steel |
