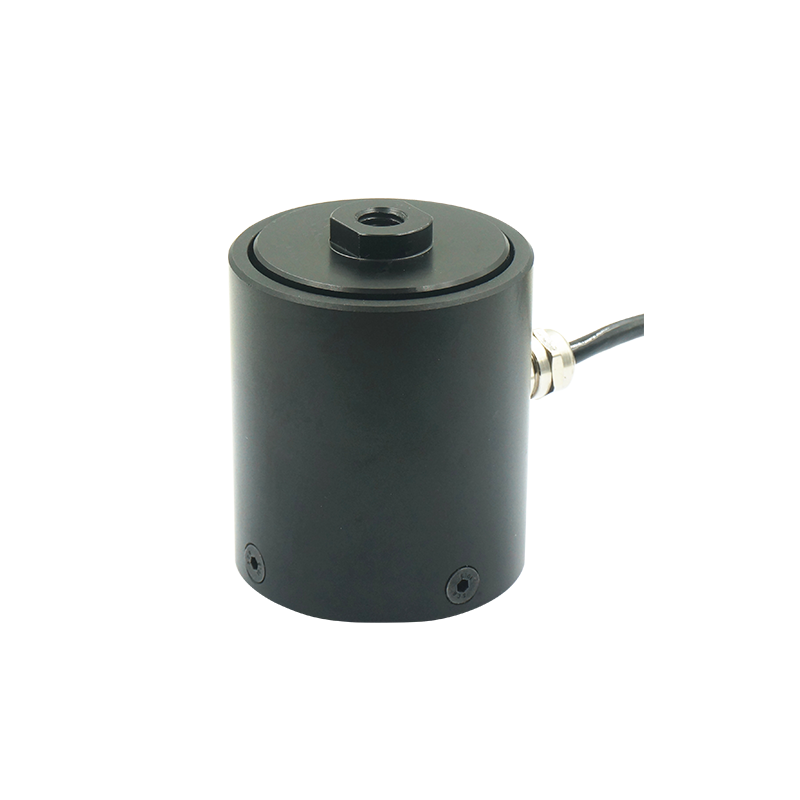

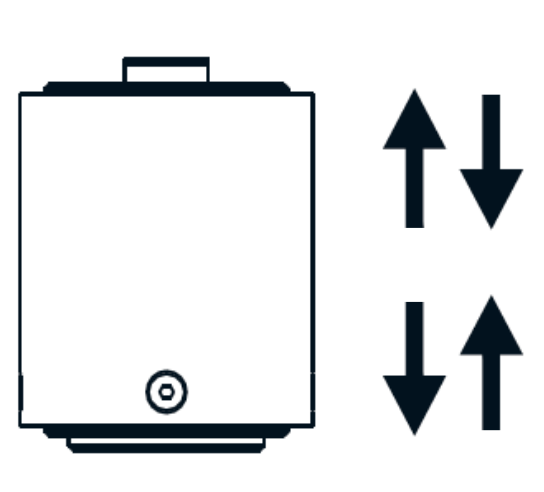

Column Tension And Compression Load Cell T323
The maximum range of the T323 compression force sensor is 5000kg. It can be widely used in force measurement equipment in factories or laboratories. Due to its rugged construction and IP66 design, the sensor has high stability and can be used in many different working environments.
Product Description
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 5,10,20,50,100,200,250,500 1000,2000,3000,5000kg |
| Nominal(rated)sensitivity | 2.0±2.5%mV/V |
| Zero balance | 0.02mV/V |
| Non-linearity | 0.03%F.S. |
| Hysteresis | 0.03%F.S. |
| Repeatability | 0.03%F.S. |
| Creep(30min) | 0.03%F.S. |
| Temp.effect on sensitvty | 0.02%F.S./10℃ |
| Temp.effect on zero | 0.02%F.S./10℃ |
| Nput impedance | 385±50Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-15V |
| Maximum excitation | 15V |
| Compensated temp range | -10-40℃ |
| Operating temperature range | -20-70℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 200%F.S. |
| lP class | IP66 |
| Material |
Aluminum 5-500kg Alloy steel 1-5t |
| Cable size | φ5×3000mm |
