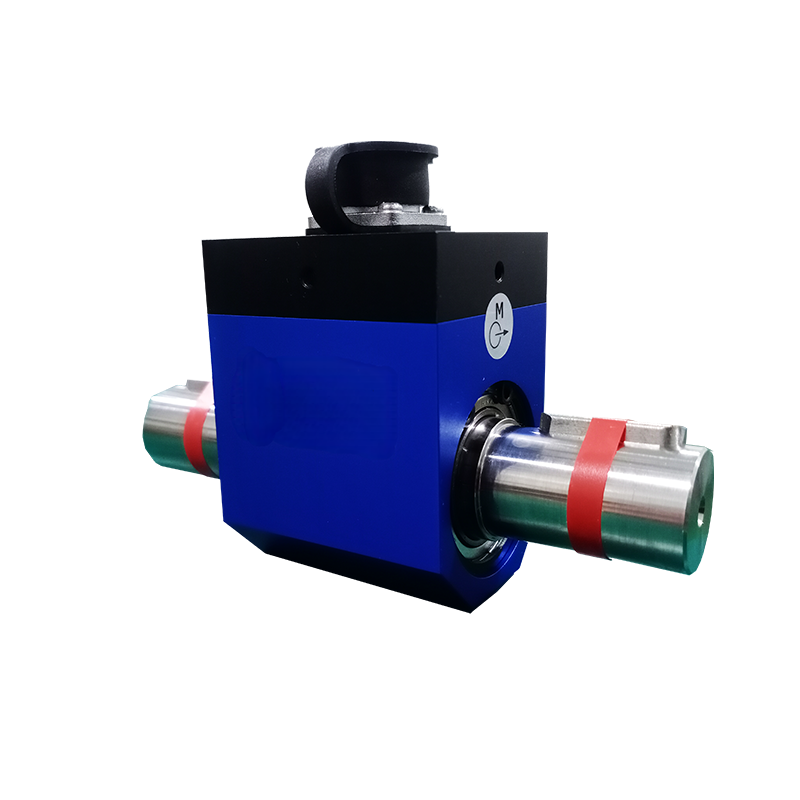

Dynamic Torque Sensor T908A
The T908A dynamic torque sensor is used to measure rapidly changing torque on a rotating shaft and is widely used to test motors and rotating parts. The range ranges from 0.1 to 500 N.m. The sensor is very compact and easy to install.
Product Description
Dynamic Torque Sensor
Specifications
| Specifications | Technique |
| Capacity |
0.1,0.2,0.3,0.5,12,3,5,10,20 30,50,100,200,300,500Nm |
| Sensitivity | 1.0~1.5mV/V |
| Zero balance | ±1%F.S. |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(30min) | 0.1%F.S. |
| Temp.effect on sensitvty | 0.02%F.S/10℃ |
| Temp.effect on zero | 0.02%F.S/10℃ |
| Input impedance | 350/700± 10Ω |
| Output impedance | 350/700±10Ω |
| Insulation | ≥2000MΩ/50VDC |
| Recommended excitation | 12V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -20~60℃ |
| Safe load limit | 120%F.S. |
| Breaking load | 150%F.S. |
| Cable size | 3m |
| lP class | IP66 |

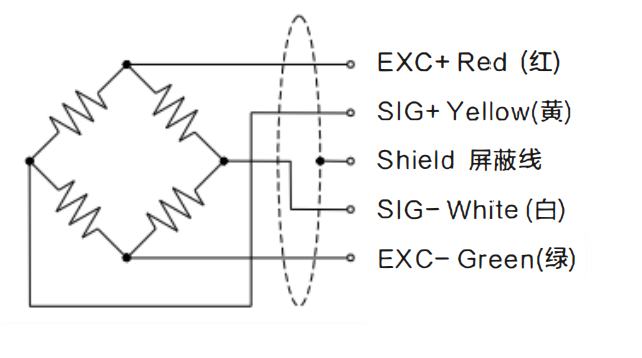

Wiring Code
FAQ
Will you will attend the fair to show your products?
Yes, we participate in several exhibitions at home and abroad every year
Can you send your sensor to my warehouse in guangzhou?
of course，We have good transportation here
How long it takes you to provide the designing options for us?
According to the customer's needs, we will give the plan within three days
Can you can design the sensor according to our size?
We are fully customized of designing sensors meticulously tailored to our customers' specific requirements.
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
