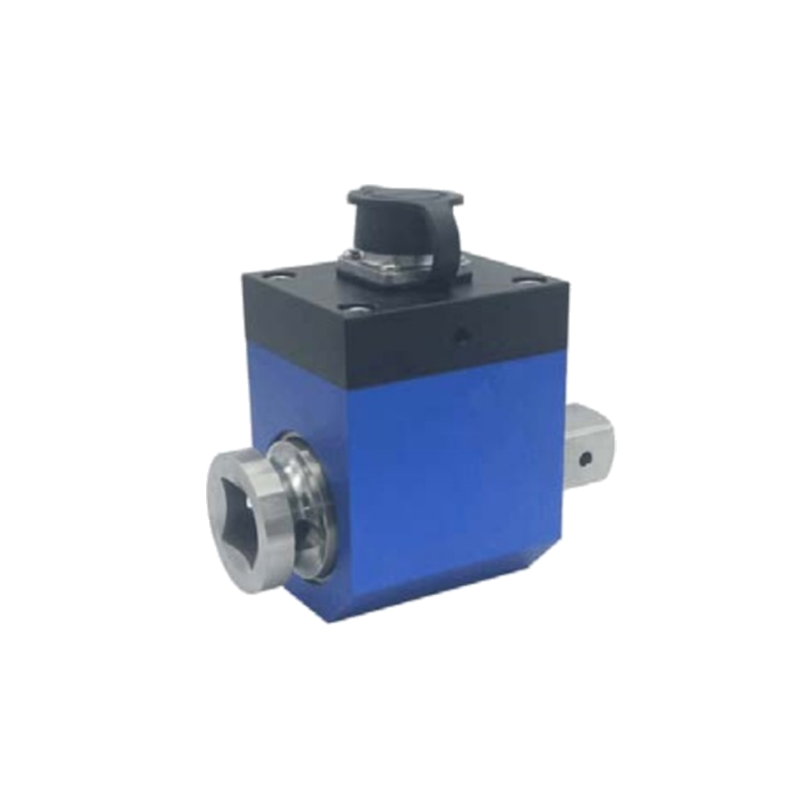

Dynamic Torque Sensor T908G
Dynamic torque sensors are used to measure rapidly changing torque on a rotating shaft and are widely used to test motors and rotating parts. The range ranges from 5 to 1000 N.m. The sensor is very compact and easy to install.
Product Description
Dynamic Torque Sensor
The two ends are connected by shaft keys,which are easy to install and use,and the speed can reach 1800 rpm.
The resistance strain is an integrated product of sensitive components and integrated circuits,and the power supply and signal output are realized by the brush.
Specifications
| Specifications | Technique |
| Capacity | 5,10,20,50,100,200,300,500,1000Nm |
| Sensitivity | 1.5±10%mV/V |
| Zero balance | ±1%F.S. |
| Non-linearity | ±0.1,0.3%F.S. |
| Hysteresis | ≤±0.05%F.S. |
| Repeatability | ≤±0.05%F.S. |
| Creep(30min) | ≤±0.03%F.S/30min |
| Temp.effect on sensitvty | 0.03%F.S./10℃ |
| Temp.effect on zero | 0.03%F.S./10℃ |
| Input impedance | 350,750±10Ω |
| Output impedance | 350,700±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 10VDC(9-15VDC) |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -20~65℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | φ5.2×3m |
| lP class | IP |

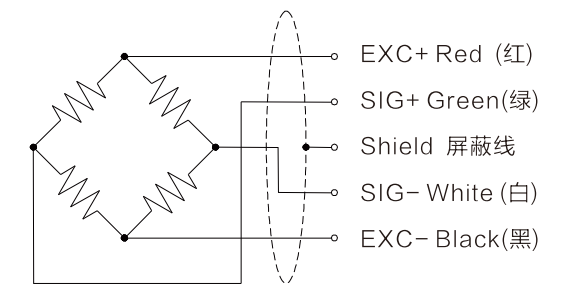

Wiring Code
