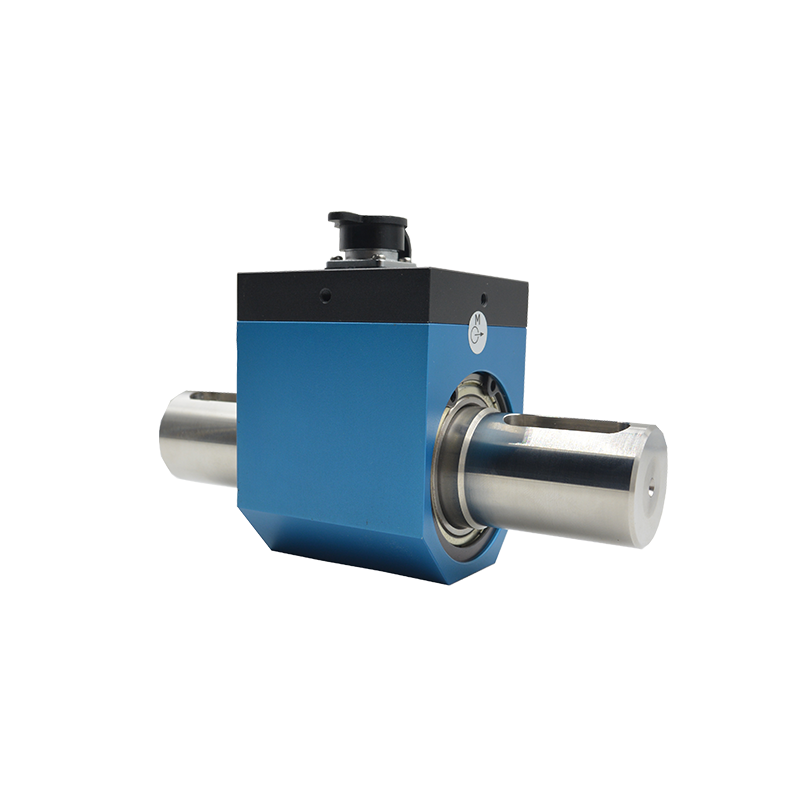

Dynamic Torque Aensor T908B
The T908B dynamic torque sensor is used to measure rapidly changing torque on a rotating shaft and is widely used to test motors and rotating parts. The range ranges from 5 to 500 N.m. The sensor is very compact and easy to install.
Product Description
Dynamic Torque Aensor
Specifications
| Specifications | Technique |
| Capacity | 5,10,20,50,100,200,500Nm |
| Sensitivity | 1.0~1.5mV/V |
| Zero balance | ±1%F.S. |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(30min) | 0.1%F.S. |
| Temp.effect on sensitvty | 0.05%F.S/10℃ |
| Temp.effect on zero | 0.05%F.S/10℃ |
| Input impedance | 350/700± 10Ω |
| Output impedance | 350/700±10Ω |
| Insulation | ≥2000MΩ/50VDC |
| Recommended excitation | ±15V |
| Maximum excitation Voltage | 24V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -20~60℃ |
| Safe load limit | 120%F.S. |
| Breaking load | 150%F.S. |
| Cable size | 3m |
| lP class | IP66 |

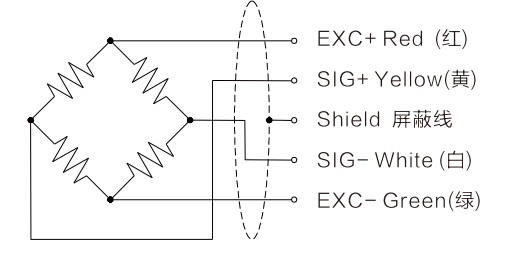

Wiring Code
