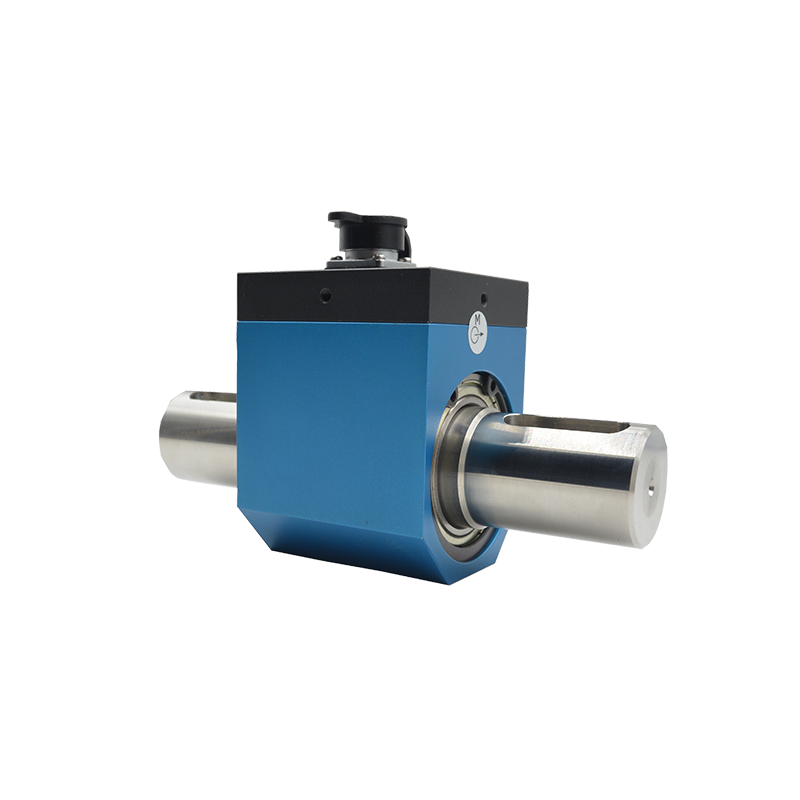

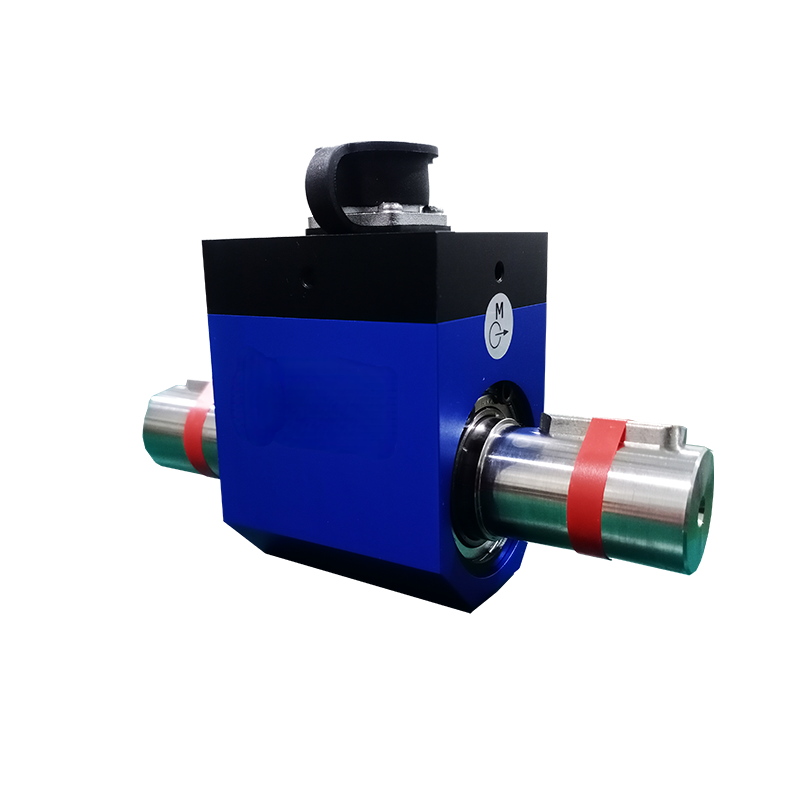

Dynamic Torque Sensor T908D
The T908D dynamic torque sensor is used to measure rapidly changing torque on a rotating shaft and is widely used to test motors and rotating parts. The range ranges from 200 to 2000 N.m. The sensor is very compact and easy to install.
Product Description
Dynamic Torque Sensor
Bothends are keyed.
Maximum speed of torque cannot over 100r/min.
High precision with stable and reliable performance.
Constituted by Strain gauge sensitive components and integrated circuits.
This sensor is brush power supply,the output is OK for positive and negative torquesignal.
Specifications
| Specifications | Technique |
| Capacity(Large number of processes can be customized) | 200,300,500,1000,2000Nm |
| Sensitivity | 1.0~1.5mV/V |
| Zero balance | ±1%F.S. |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(30min) | 0.1%F.S. |
| Temp.effect on sensitvty | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 350/700±10Ω |
| Output impedance | 350/700±10Ω |
| Insulation | ≥2000MΩ/50VDC |
| Recommended excitation | 12V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -30~60℃ |
| Safe load limit | 120%F.S. |
| Breaking load | 150%F.S. |
| Cable size | 3m |
| lP class | IP66 |
Wiring Code
