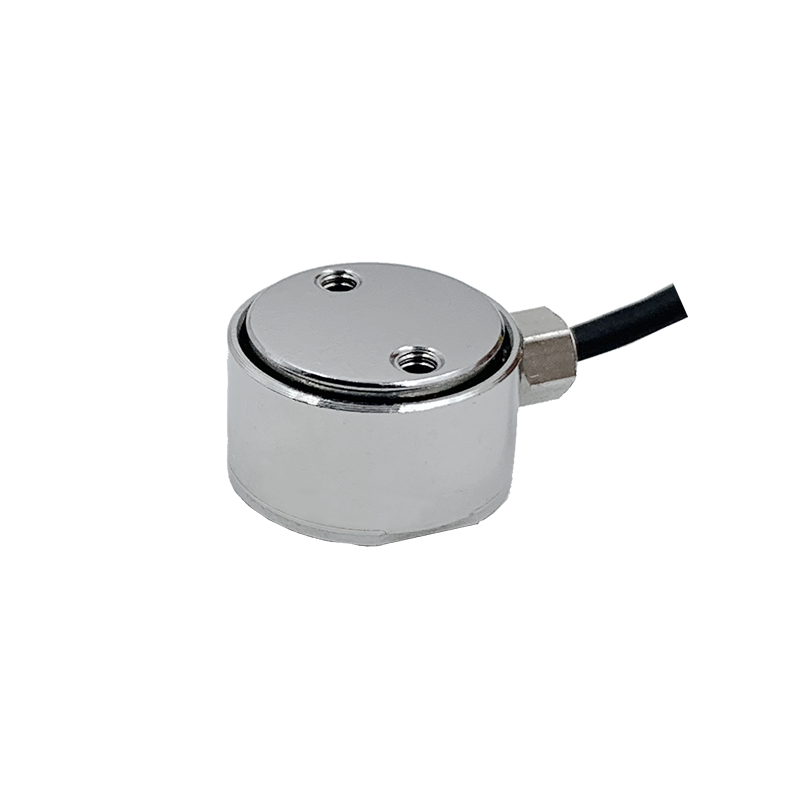

Miniature Compression And Tension Load Cell R105A

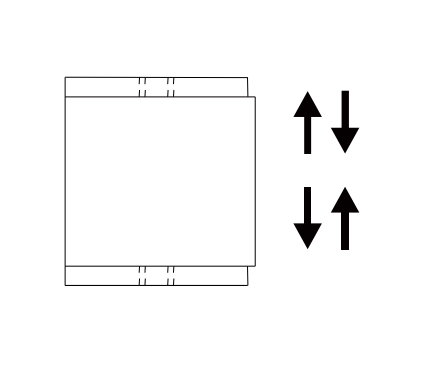

The R105A miniature sensor is used to measure tensile and compressive forces. Widely used in tensile force/push ergometers, welding force measurement, surface tensile force measurement, etc. The product is compact and rugged in design, with a range from 10-200N. Due to its high dynamic response frequency, the sensor provides fast measurements in a variety of applications requiring tensile and compression force measurements.
Product Description
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 10,20,50,100,200N |
| Nominal(rated)sensitivity | 2.0±20%mV/V |
| Zero balance | ±0.02 mV/V |
| Non-linearity | 0.1%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(30min) | 0.1%F.S. |
| Temp.effect on sensitvty | 0.05%F.S/10℃ |
| Temp.effect on zero | 0.05%F.S/10℃ |
| Nput impedance | 350±30Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | -10-60℃ |
| Operating temperature range | -20-80℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 300%F.S. |
| lP class | IP66 |
| Cable size | φ2×4000mm |
| Weight approx | 0.1kg |
| Material | Stainless Steel |
FAQ
Will you will attend the fair to show your products?
Yes, we participate in several exhibitions at home and abroad every year
Can you send your sensor to my warehouse in guangzhou?
of course，We have good transportation here
How long it takes you to provide the designing options for us?
According to the customer's needs, we will give the plan within three days
Can you can design the sensor according to our size?
We are fully customized of designing sensors meticulously tailored to our customers' specific requirements.
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
